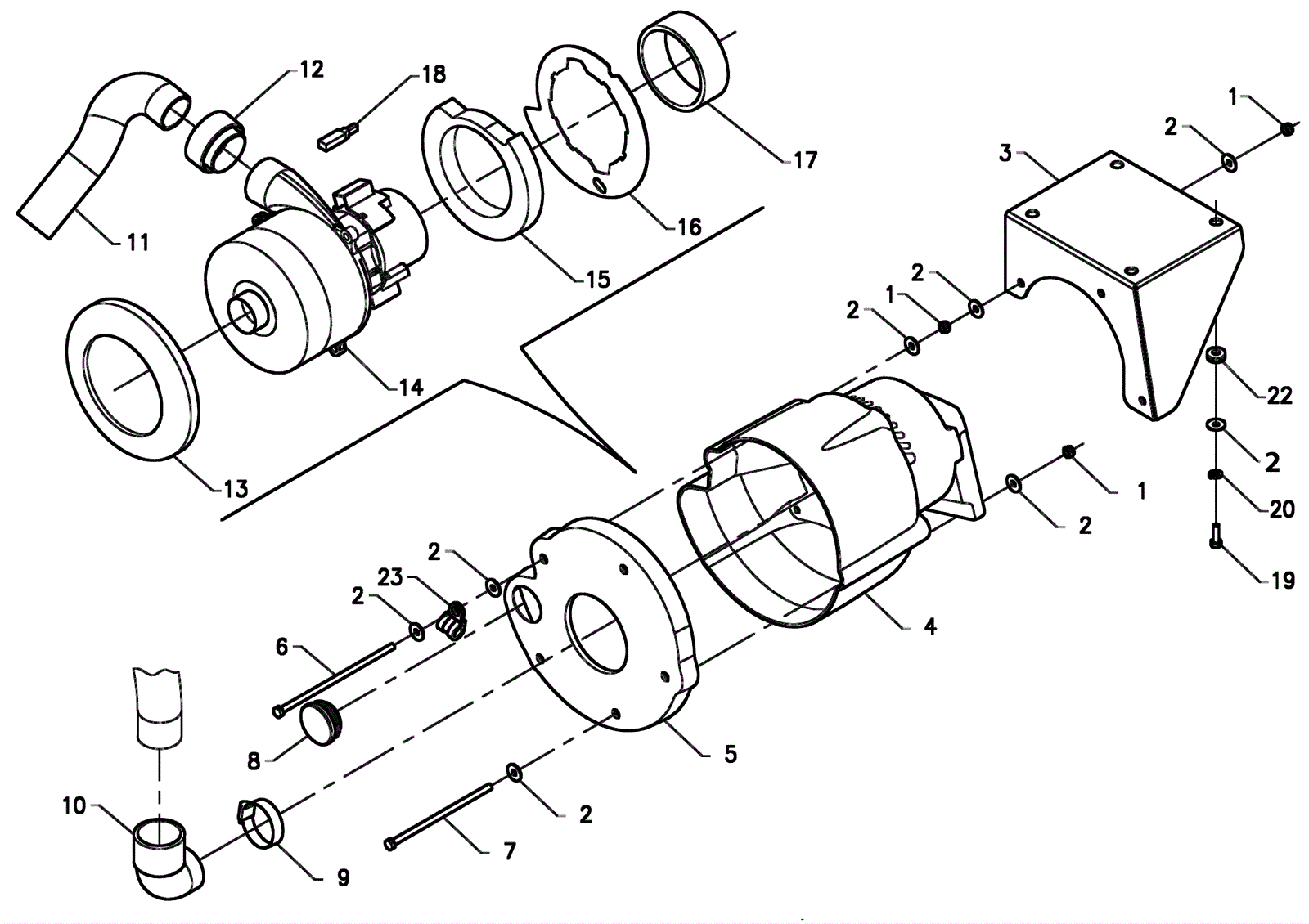

BDSO 27/28 Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8256 Nut $1.35 8 usually ships 15-28 days
2 999-1261 Washer M6 flat stainless steel $0.99 21 ships same day
3 183-7191 Vacuum motor support (OBSOLETE) Call for price 1 usually ships 15-28 days
4 183-9378 Vacuum motor casing $157.17 1 usually ships 15-28 days
5 183-7192 Vacuum motor base (OBSOLETE) Call for price 1 usually ships 15-28 days
6 183-7193 Screw M6 x 150 (OBSOLETE) Call for price 3 usually ships 15-28 days
7 183-7194 Screw M6 x 140 (OBSOLETE) Call for price 2 usually ships 15-28 days
8a 183-9252 Cap $1.93 1 (between SN 18003017 and 18004447) usually ships 15-28 days
8b 183-9380 Cap $1.35 1 (before SN 18003018) usually ships 15-28 days
9 183-9231 Hose clamp $6.31 1 usually ships 15-28 days
10 183-8480 Fitting $24.99 1 ships same day
11 183-7195 Vacuum motor hose $5.50 1 usually ships 15-28 days
12 183-3236 Coupling $5.50 1 usually ships 15-28 days
13 183-5175 Vacuum motor gasket $9.08 1 usually ships 15-28 days
14 183-5153 Vacuum motor $540.62 1 usually ships 15-28 days
15 183-9379 Vibration dampener $21.51 1 usually ships 15-28 days
16 183-8465 Protection ring $11.15 1 usually ships 15-28 days
17 183-8476 Ring $4.55 1 usually ships 15-28 days
18 183-5155 Carbon brush (OBSOLETE) Call for price 1 usually ships 15-28 days
19 183-8292 Screw M6 x 20 $1.35 4 usually ships 15-28 days
20 183-8523 Lock washer $1.30 4 usually ships 15-28 days
22 183-3167 Fairlead $1.35 4 usually ships 15-28 days
23 183-9381 Collar for sheath $11.96 1 (after SN 18004445) usually ships 15-28 days
