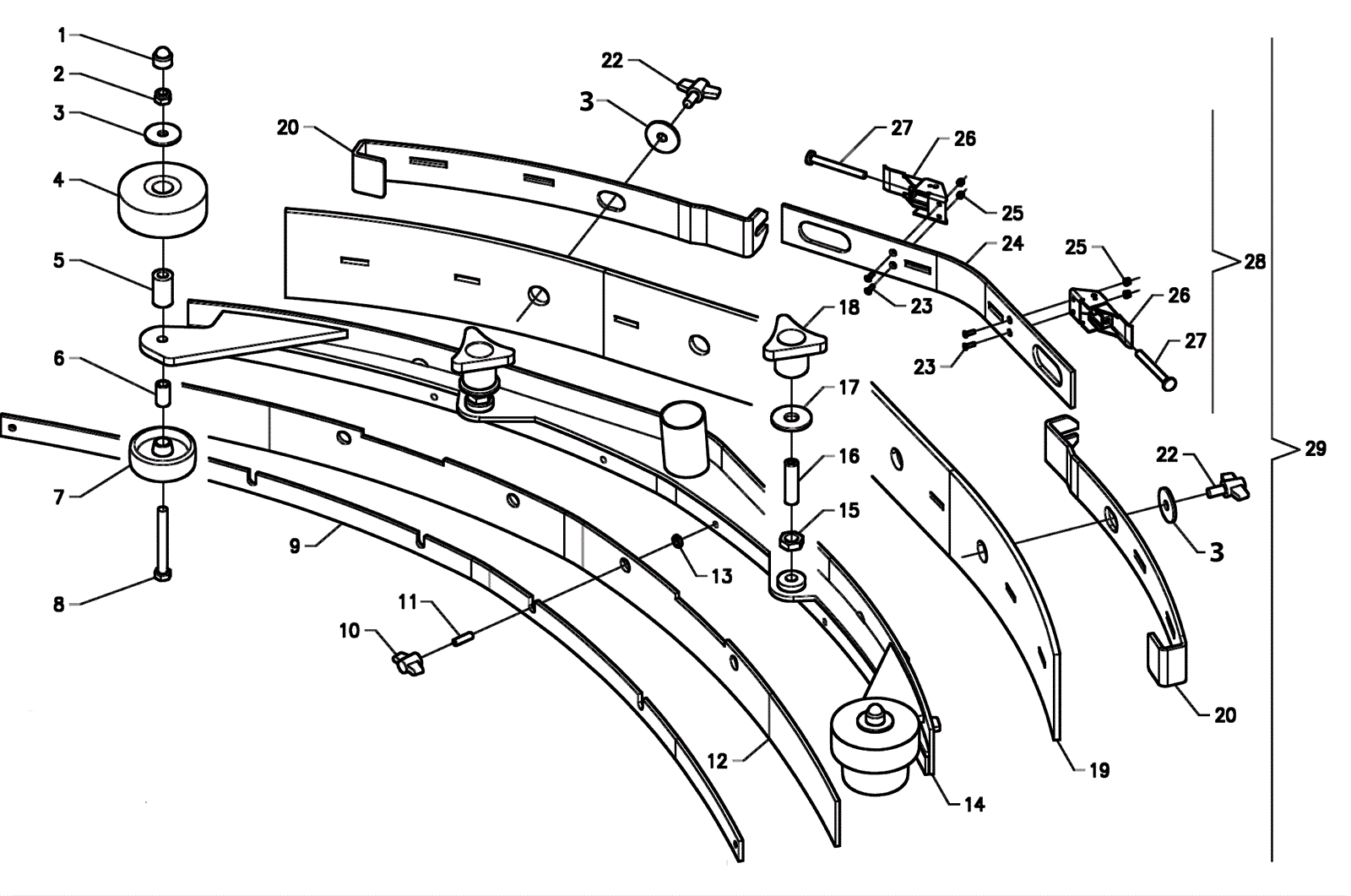

BDSO 27/28 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-1995 Nut cover (black) $1.35 2 usually ships 15-28 days
2 183-9130 Lock nut $1.35 2 ships same day
3 183-2451 Washer inox $1.35 4 usually ships 15-28 days
4 183-4706 Bumper wheel $9.59 2 usually ships 15-28 days
5 183-8498 Bushing $8.60 2 usually ships 15-28 days
6 183-9133 Bushing $10.40 2 usually ships 15-28 days
7 183-9132 Bumper wheel $19.48 2 usually ships 15-28 days
8 183-9131 Screw M8 x 70mm $2.77 2 usually ships 15-28 days
9 183-7139 Front squeegee blade holder $59.22 1 usually ships 15-28 days
10 183-2305 Wing nut $4.66 4 usually ships 15-28 days
11 183-7625 Dowel Call for price 4 usually ships 15-28 days
12 183-7140 Front squeegee blade $53.01 1 ships same day
13 183-8214 Nut $1.35 4 usually ships 15-28 days
14 183-7141 Squeegee body $662.66 1 usually ships 15-28 days
15 183-9135 Nut $1.35 2 usually ships 15-28 days
16 183-7627 Dowel $5.19 2 usually ships 15-28 days
17 183-9138 Washer $2.70 2 usually ships 15-28 days
18 183-9139 Handwheel $15.50 2 usually ships 15-28 days
19 183-7142 Rear squeegee blade $63.03 1 ships same day
20 183-7143 Rear squeegee blade holder $13.76 2 usually ships 15-28 days
22 183-7623 Wing nut $10.12 2 usually ships 15-28 days
23 183-2459 Screw M3 x 10mm $1.35 4 usually ships 15-28 days
24 183-9141 Center rear blade bracket $77.07 1 usually ships 15-28 days
25 183-2463 Lock nut inox $2.24 4 usually ships 15-28 days
26 183-9142 Adjustable latch $29.35 2 usually ships 15-28 days
27 183-9143 Screw M6 x 60mm $1.72 2 usually ships 15-28 days
28 183-7144 Rear center blade holder assembly $161.69 1 (includes 23-27) usually ships 15-28 days
29 183-7145 Squeegee assembly $1,407.67 1 (includes 1-20, 22-28) usually ships 15-28 days
