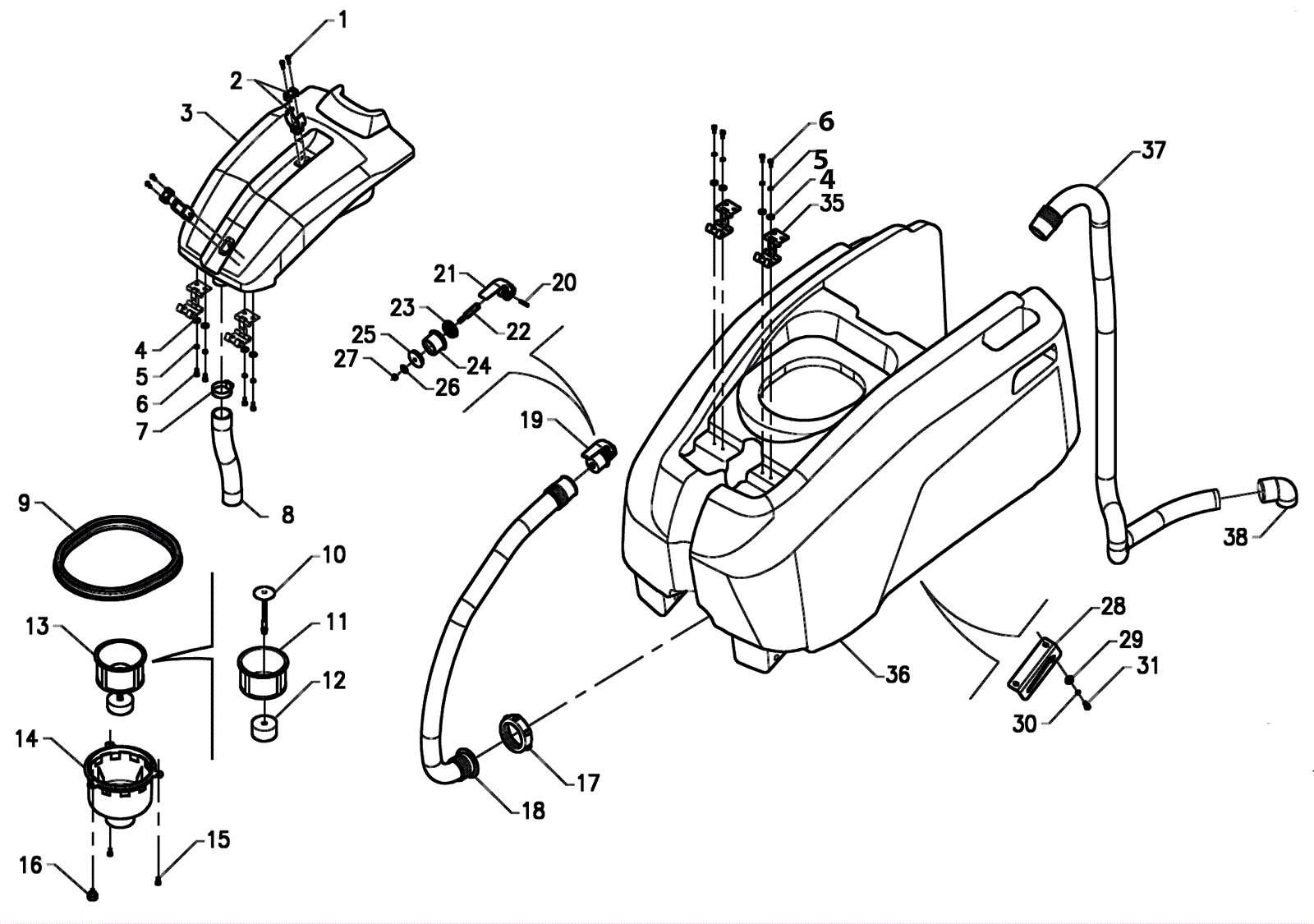

BDSO 27/28 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-2676 Screw M3.9 x 14mm $1.35 4 (before SN 18005007) usually ships 15-28 days
1b 183-7127 Screw M3.8 x 19 $1.35 4 (after SN 18005006) usually ships 15-28 days
2 183-7128 Coupler hose clip $12.87 2 usually ships 15-28 days
3 183-7129 Recovery tank cover (OBSOLETE) Call for price 1 usually ships 15-28 days
4 183-9232 Washer $1.35 8 usually ships 15-28 days
5 183-2578 Lock washer $1.35 8 usually ships 15-28 days
6 183-2581 Screw M5 x 12mm $1.35 8 usually ships 15-28 days
7 183-9231 Hose clamp $6.31 1 usually ships 15-28 days
8 183-7130 Intank recovery hose $9.21 1 usually ships 15-28 days
9 183-7131 Tank cover gasket (OBSOLETE) $16.13 1 usually ships 15-28 days
10 183-2138 Rod with plate $4.87 1 usually ships 15-28 days
11 183-2139 Float filter $6.71 1 usually ships 15-28 days
12 183-2147 Float $4.90 1 usually ships 15-28 days
13 183-8479 Filter and float assembly $24.16 1 ships same day
14 183-9230 Filter protection $7.38 1 usually ships 15-28 days
15 183-9228 Screw M5 x 12mm $1.35 2 usually ships 15-28 days
16 183-9229 Handwheel $5.72 1 usually ships 15-28 days
17 183-9239 Drain hose ring nut $14.32 1 usually ships 15-28 days
18 183-9406 Drain hose M38.2 x 950mm $53.25 1 usually ships 15-28 days
19 183-8197 Plug assembly $53.58 1 (includes 20-27) usually ships 15-28 days
20 183-2509 Parallel pin inox $1.49 1 usually ships 15-28 days
21 183-8223 Drain plug lever $6.83 1 usually ships 15-28 days
22 183-8218 Rod $14.33 1 usually ships 15-28 days
23 183-8220 Drain plug cover $2.61 1 usually ships 15-28 days
24 183-8222 Plug $5.50 1 usually ships 15-28 days
25 183-8221 Drain plug $2.77 1 usually ships 15-28 days
26 183-8240 Washer INOX $1.35 1 usually ships 15-28 days
27 183-8229 Nut INOX $1.35 1 usually ships 15-28 days
28 183-9238 Gas shock absorber guide $14.77 1 usually ships 15-28 days
29 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
30 183-8523 Lock washer $1.30 2 usually ships 15-28 days
31 183-8292 Screw M6 x 20 $1.35 2 usually ships 15-28 days
35 183-9233 Tank cover hinge $70.54 2 usually ships 15-28 days
36a 183-7126 Recovery tank (obsolete) Call for price 1 (before SN 18005007) usually ships 15-28 days
36b 183-7132 Recovery tank (OBSOLETE) Call for price 1 (after SN 18005006) usually ships 15-28 days
37 183-7133 Squeegee hose $61.51 1 usually ships 15-28 days
38 183-8480 Fitting $24.99 1 ships same day
