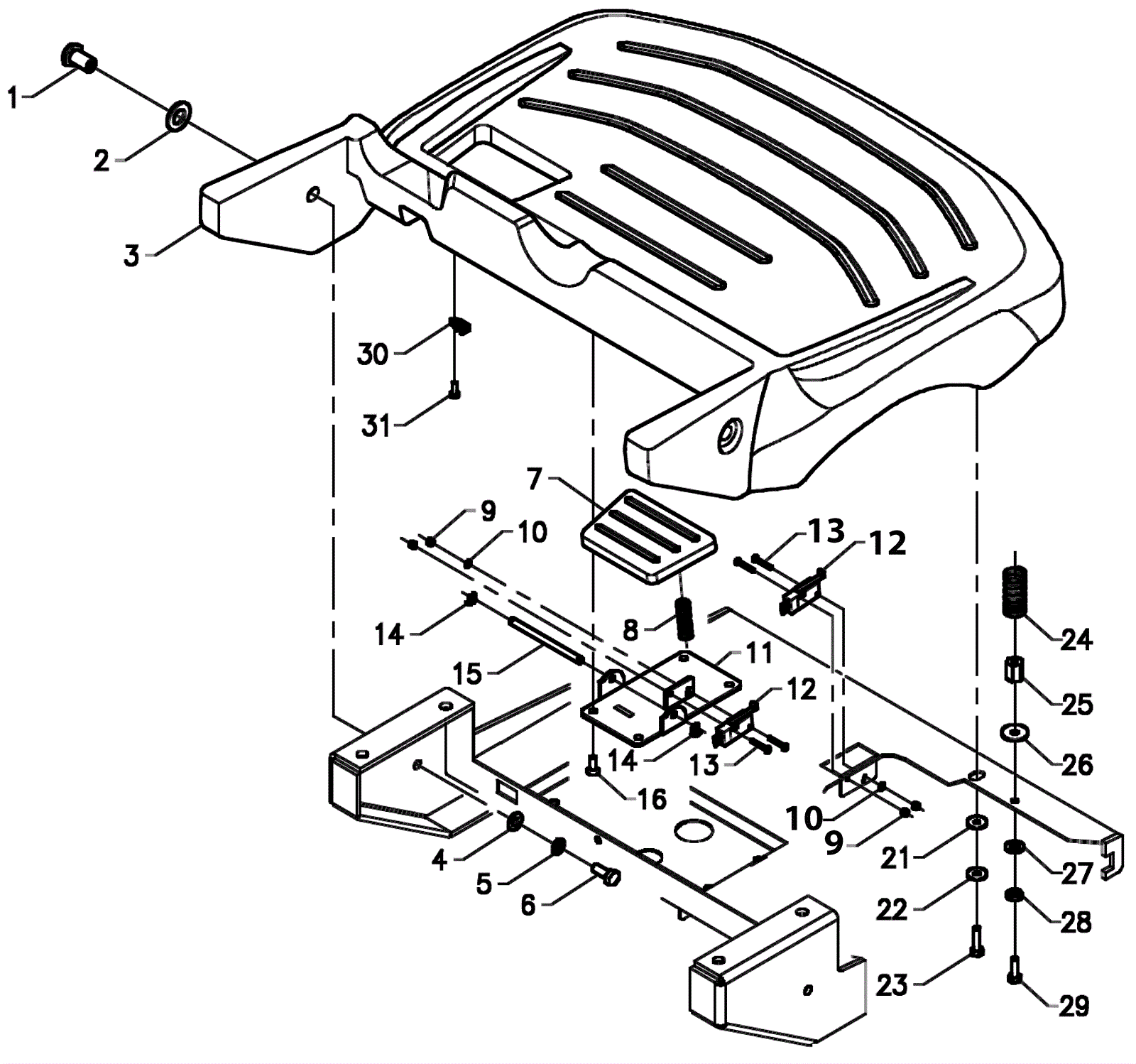

BDSO 27/28 Foot Board Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-7089 Bushing $13.73 2 usually ships 15-28 days
2 183-9214 Conical washer $1.38 2 usually ships 15-28 days
3 183-7090 Foot board (OBSOLETE) Call for price 1 usually ships 15-28 days
4 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
5 183-8286 Washer INOX $1.35 2 usually ships 15-28 days
6 183-8289 Screw M8 x 20 INOX $1.35 2 usually ships 15-28 days
7 183-7091 Pedal $10.58 1 usually ships 15-28 days
8 183-7092 Spring $56.36 1 usually ships 15-28 days
9 183-2463 Lock nut inox $2.24 4 usually ships 15-28 days
10 183-8368 Washer $1.35 2 usually ships 15-28 days
11 183-7093 Pedal support $76.29 1 usually ships 15-28 days
12 183-7004 Microswitch $54.16 2 usually ships 15-28 days
13 283-3546 Screw M3 x 20 $1.35 4 usually ships 15-28 days
14 183-2634 Spring clip $1.35 2 usually ships 15-28 days
15 183-7094 Pin $24.18 1 usually ships 15-28 days
16 183-8402 Screw M6 x 16 $1.35 4 usually ships 15-28 days
21 183-7095 Rubber washer $7.62 2 usually ships 15-28 days
22 183-8240 Washer INOX $1.35 2 usually ships 15-28 days
23 183-8290 Screw M6 x 30 $1.35 2 usually ships 15-28 days
24 183-7096 Spring $56.36 2 usually ships 15-28 days
25 183-7097 Bushing $13.60 2 usually ships 15-28 days
26 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
27 183-2457 Washer INOX $1.35 2 usually ships 15-28 days
28 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
29 183-2597 Screw M6 x 20mm $1.35 2 usually ships 15-28 days
30 183-8453 Eye support $1.35 1 usually ships 15-28 days
31 183-2676 Screw M3.9 x 14mm $1.35 1 usually ships 15-28 days
