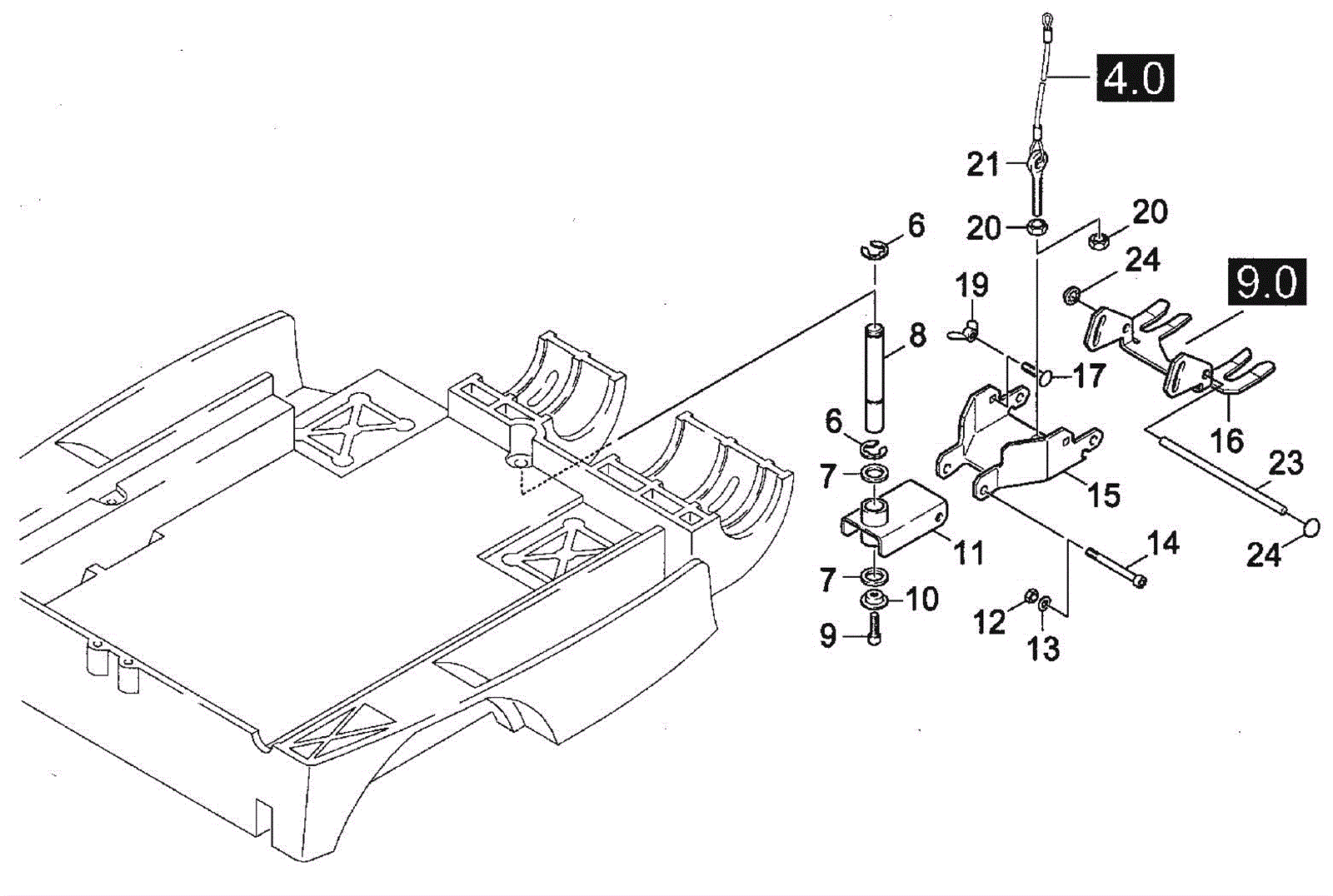

BR 55/60 Frame Piece Assembly

#PartDescriptionPriceReqNotesAvailability
6 183-4072 Washer lock $1.35 2 usually ships 1-5 days
7 373-1701 Washer $1.40 2 usually ships 7-19 days
8 183-7936 Bolt $37.62 1 usually ships 8-21 days
9 183-0093 Screw M6-1 x 16mm $1.43 1 usually ships 7-19 days
10 183-7937 Sleeve $18.70 1 usually ships 8-21 days
11 183-7938 Carrier $38.91 1 usually ships 8-21 days
12 183-0341 Hex nut $1.63 1 usually ships 1-5 days
13 183-0471 Washer $1.35 2 usually ships 8-21 days
14 183-0340 Screw $3.89 1 usually ships 1-5 days
15 183-7939 Bracket $90.84 1 usually ships 8-21 days
16 183-7940 Rocker $40.12 1 usually ships 8-21 days
17 183-0343 Screw $1.58 1 usually ships 8-21 days
19 183-0347 Wing nut (Obsolete) $7.55 2 usually ships 8-21 days
20 183-0405 Hex nut $1.80 2 usually ships 1-5 days
21 183-7941 Rope $288.06 1 usually ships 8-21 days
23 183-7942 Bar $9.59 1 usually ships 8-21 days
24 183-0197 Wheel cap $2.67 2 usually ships 8-21 days
