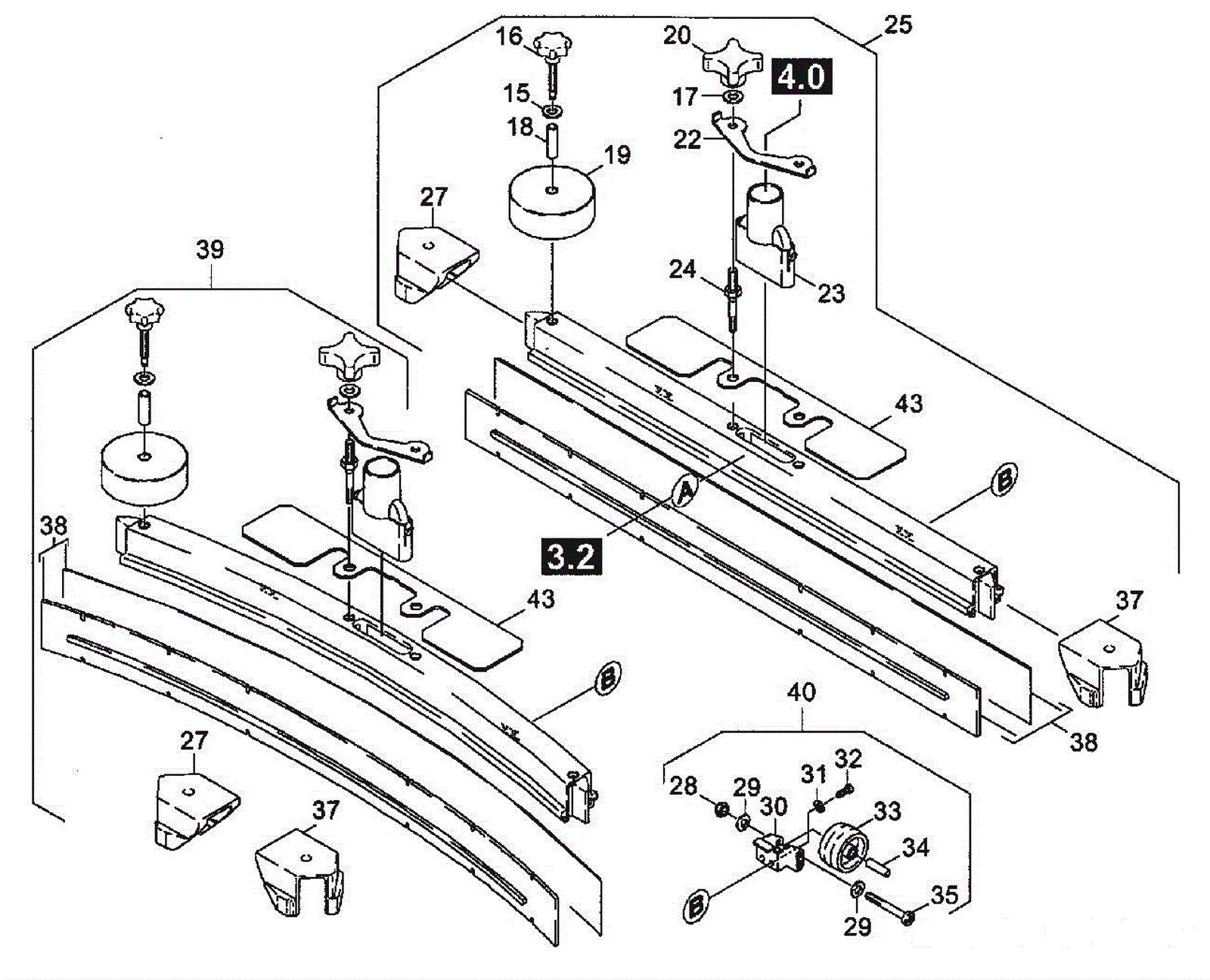

BR 55/60 Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
15 183-0471 Washer $1.35 2 usually ships 8-21 days
16 183-0964 Knob (Obsolete) $14.36 2 usually ships 1-5 days
17 183-0459 Washer $1.35 2 usually ships 8-21 days
18 183-0311 Pipe $10.25 2 usually ships 1-5 days
19 183-0289 Roller wheel $24.09 2 usually ships 7-19 days
20 183-0284 Star handle $8.37 2 usually ships 8-21 days
22 183-0308 Plate $18.49 1 usually ships 1-5 days
23 183-0314 Intake tube $9.38 1 usually ships 1-5 days
24 183-0315 Pin (Obsolete) $12.34 1 usually ships 1-5 days
25 273-3578 37 inch straight polyurethane squeegee assembly (940mm) $1,276.00 1 (includes 15-20, 22-24, 27, 37-38, 43) usually ships 7-19 days
27 183-0319 Hose $6.99 1 usually ships 1-5 days
28 183-0304 Hex nut $1.30 1 usually ships 1-5 days
29 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
30 N/A Not available Call for price 1 (included in 40) usually ships 3-26 days
31 N/A Not available Call for price 1 (included in 40) usually ships 3-26 days
32 183-0323 Screw M5-.8 x 10mm stainless steel $1.88 2 usually ships 1-5 days
33 183-0301 Wheel $28.29 2 usually ships 8-21 days
34 183-0303 Axle $34.32 1 usually ships 8-21 days
35 183-0302 Screw $1.93 1 usually ships 1-5 days
37 183-0325 Hose (Obsolete) $5.83 1 usually ships 1-5 days
38a 183-7526 Squeegee blade set standard gum rubber $205.27 1 ships same day
38b 273-3678 Squeegee blade set oil resistant $335.57 1 ships same day
38c 183-7533 Rubber lip set $301.24 1 (designed for use on grouted floors) usually ships 7-19 days
39 183-0921 Squeegee assembly (Obsolete) $854.99 1 (includes 27, 37-38, 43) usually ships 1-5 days
40 183-0299 Support wheels kit $79.87 1 (includes 28-35) usually ships 8-21 days
43 183-0487 Weight addition $60.35 1 usually ships 8-21 days
