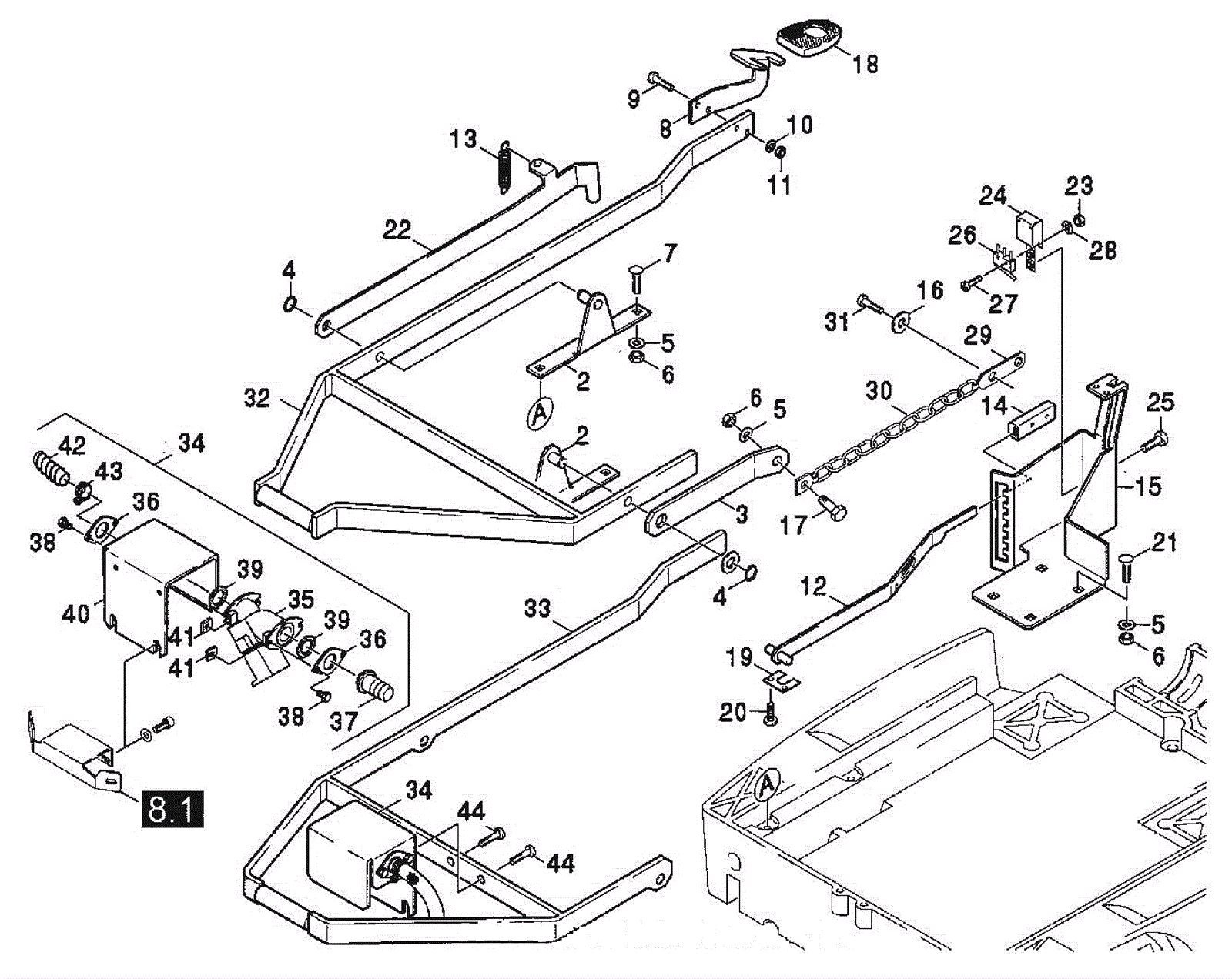

BR 55/60 Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
2 183-8068 Pedal (OBSOLETE) Call for price 2 usually ships 8-21 days
3 183-8069 Plate $24.86 1 usually ships 7-19 days
4 173-6186 Locking ring 10 x 1 $5.83 2 usually ships 1-5 days
5 183-0099 Washer $1.35 4 usually ships 1-5 days
6 999-1292 Nut M8 hex nickel plated brass $1.85 5 ships same day
7 183-8070 Screw M8 x 55 saucer head $2.66 4 usually ships 7-19 days
8 183-8071 Plate $104.95 1 usually ships 8-21 days
9 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 2 ships same day
10 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
11 183-0079 Hex nut $1.35 2 usually ships 1-5 days
12 183-8072 Lever $76.66 1 usually ships 7-19 days
13 183-8073 Extension spring (OBSOLETE) Call for price 1 usually ships 8-21 days
14 183-0460 Handle $7.28 1 usually ships 8-21 days
15 183-8074 Plate (OBSOLETE) Call for price 1 usually ships 8-21 days
16 183-0471 Washer $1.35 1 usually ships 8-21 days
17 183-2908 Screw M8 x 20mm $1.35 1 usually ships 8-21 days
18 273-9221 Pedal coating $14.41 1 usually ships 7-19 days
19 183-8075 Plate $15.29 1 usually ships 7-19 days
20 273-5829 Screw M6-1 x 16mm stainless steel $3.39 2 usually ships 1-5 days
21 183-2942 Screw M8 x 50mm $1.35 4 usually ships 8-21 days
22 183-8076 Lever (OBSOLETE) Call for price 1 usually ships 8-21 days
23 273-9235 Nut M 2-8 $3.47 2 usually ships 7-19 days
24 183-8077 Plate $28.94 1 usually ships 8-21 days
25 273-9303 Screw M4 x 12 $1.69 2 usually ships 7-19 days
26 183-8078 Micro switch $24.92 1 usually ships 8-21 days
27 273-9234 Screw M2 x 20 $0.99 2 usually ships 7-19 days
28 273-9236 Washer $0.99 2 usually ships 7-19 days
29 183-8079 Plate $59.07 1 usually ships 8-21 days
30 183-8080 Chain $22.25 1 usually ships 8-21 days
31 183-0075 Screw 5-16 x 10.9mm $0.99 2 ships same day
32 183-8081 Lever (OBSOLETE) Call for price 1 (for machines 1.384-111.0 and 1.384-121.0) usually ships 8-21 days
33 183-8082 Lever (OBSOLETE) Call for price 1 (for machines 1.384-211.0 and 1.384-221.0) usually ships 8-21 days
34 183-8083 Add on kit $357.15 1 (includes 35-43) usually ships 8-21 days
35 N/A Not available Call for price 1 (magnet ventil) (only available with 34) usually ships 3-26 days
36 183-8084 Flange $5.89 2 usually ships 7-19 days
37 183-8085 Hose stem $18.26 2 usually ships 7-19 days
38 183-8086 Screw (OBSOLETE) Call for price 4 usually ships 8-21 days
39 273-9184 Flat gasket $5.03 2 usually ships 7-19 days
40 183-8087 Plate (OBSOLETE) Call for price 1 usually ships 8-21 days
41 183-8088 Nut M4 square $1.28 4 usually ships 7-19 days
42 273-5847 Spiral hose (sold by the inch) $24.20 1 usually ships 7-19 days
43 183-8089 Hose band clip (OBSOLETE) Call for price 3 usually ships 8-21 days
44 183-8090 Sheet metal screw $1.32 2 usually ships 7-19 days
