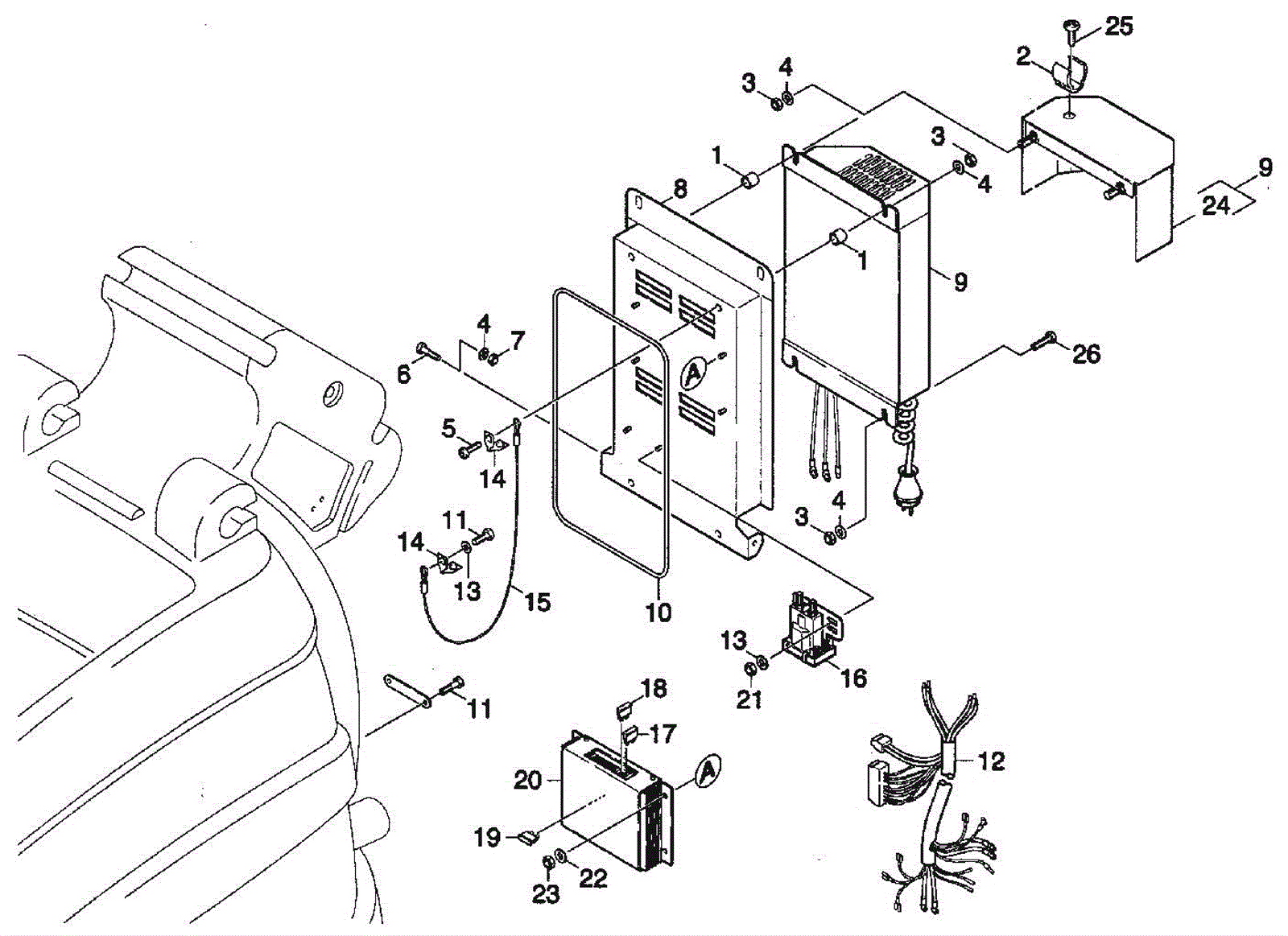

BR 55/60 Electric Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8059 Nut $9.02 4 usually ships 7-19 days
2 273-7439 Cable clip $3.63 2 usually ships 1-5 days
3 183-0262 Hex nut $1.35 4 usually ships 1-5 days
4 183-0237 Washer $2.10 4 usually ships 1-5 days
5 273-5829 Screw M6-1 x 16mm stainless steel $3.39 5 usually ships 1-5 days
6 183-8060 Screw M6 x 40 $5.17 2 usually ships 7-19 days
7 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
8 183-8061 Cover (obsolete) Call for price 1 usually ships 8-21 days
9 183-8062 Battery charger (obsolete) Call for price 1 (maintenance free) (includes 24) usually ships 8-21 days
10 183-8047 Cellular rubber cord $28.47 1 (customer to specify total cut length) usually ships 8-21 days
11 183-0075 Screw 5-16 x 10.9mm $0.99 3 ships same day
12 183-8063 Cable tree pack $653.40 1 usually ships 7-19 days
13 183-0154 Washer (Obsolete) $3.45 5 usually ships 1-5 days
14 273-4595 Bracket plate $20.13 2 usually ships 7-19 days
15 183-8064 Rope (obsolete) Call for price 1 usually ships 8-21 days
16 183-0148 Power relay $139.47 1 usually ships 1-5 days
17 273-9383 Fuse insert $9.19 1 usually ships 7-19 days
18 183-0151 Fuse insert $2.42 1 usually ships 1-5 days
19 183-0149 Fuse insert $4.79 1 usually ships 1-5 days
20a 183-8065 Circuit board $2,238.31 1 (before SN 13571) (SN change over is suspect, determine which type of control panel the customer has) usually ships 8-21 days
20b 183-8066 Circuit board $2,189.07 1 (SN change over is suspect, determine which type of control panel the customer has) usually ships 8-21 days
21 183-0153 Hex nut (Obsolete) $3.45 2 usually ships 1-5 days
22 273-7922 Washer $1.21 4 usually ships 7-19 days
23 183-0233 Hex nut $1.35 4 usually ships 1-5 days
24 183-8067 Cover plate (obsolete) Call for price 1 (after SN 11673) usually ships 8-21 days
25 273-0372 Screw M5 x 14mm $1.57 2 (after SN 11673) usually ships 7-19 days
26 183-0236 Screw $0.62 4 usually ships 8-21 days
