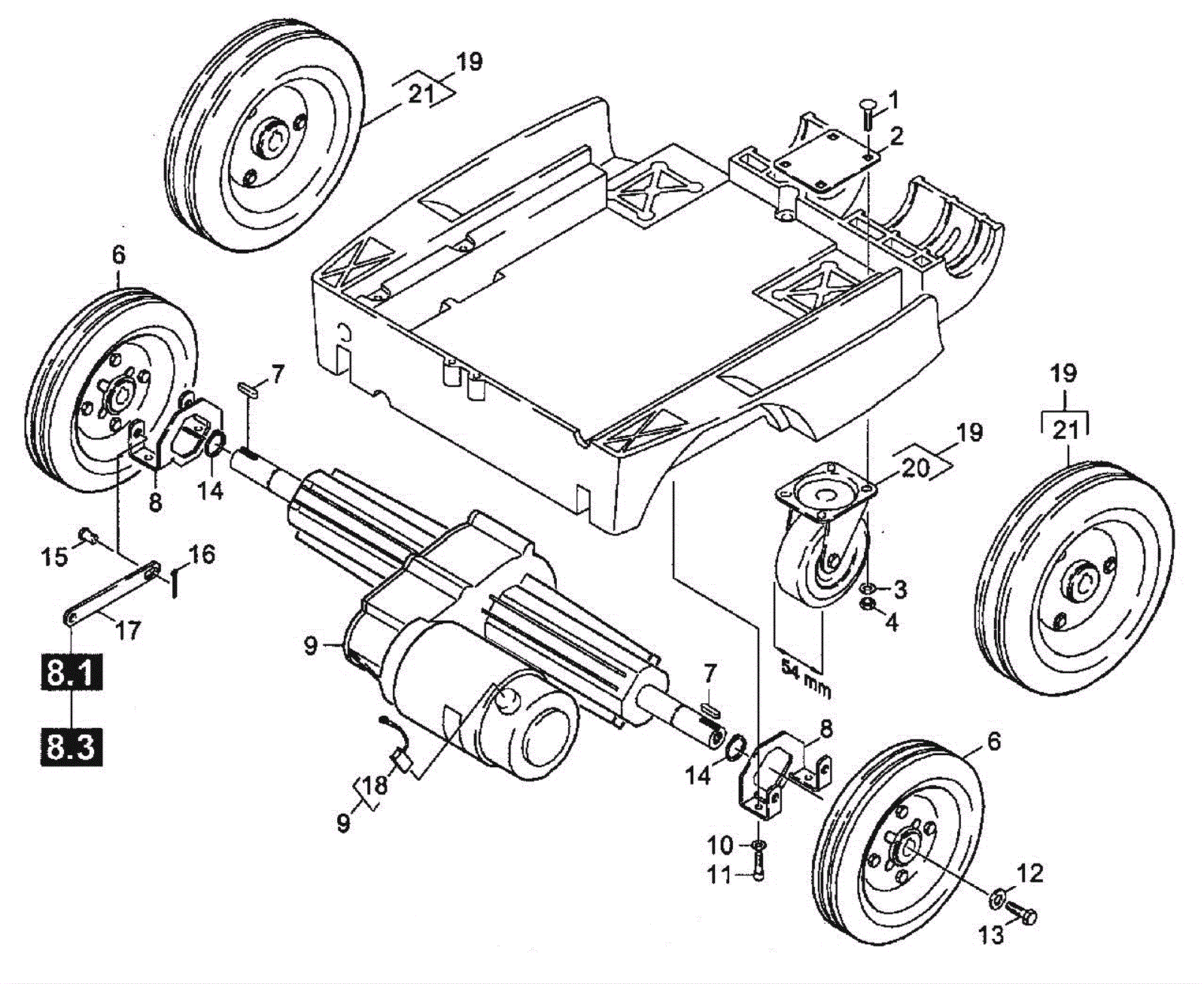

BR 55/60 Actuation Piece Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2942 Screw M8 x 50mm $1.35 4 usually ships 8-21 days
2 273-7535 Plate $14.41 1 usually ships 1-5 days
3 183-0471 Washer $1.35 8 usually ships 8-21 days
4 183-0405 Hex nut $1.80 8 usually ships 1-5 days
6 183-8037 Wheel (grey) (obsolete) Call for price 2 usually ships 8-21 days
7 183-8038 Spring 6 x 6 x 28 $4.76 2 usually ships 8-21 days
8 183-8039 Plate $60.95 2 usually ships 8-21 days
9 183-8040 Wheel drive motor (obsolete) Call for price 1 (includes 18) usually ships 8-21 days
10 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
11 183-0477 Screw $23.27 4 usually ships 8-21 days
12 173-9870 Washer #8 $9.96 2 usually ships 7-19 days
13 183-7477 Screw $1.43 2 usually ships 1-5 days
14 183-0230 Spring clip $3.22 2 usually ships 1-5 days
15 183-8041 Bolt $5.50 4 usually ships 8-21 days
16 183-4208 Cotter pin $5.87 4 usually ships 1-5 days
17a 183-8042 Lever $22.13 2 (for machine numbers 1.384-111.0 and 1.384-121.0) usually ships 8-21 days
17b 183-8043 Lever $16.94 2 (for machine numbers 1.384-211.0 and 1.384-221.0) usually ships 7-19 days
18 183-8044 Carbon brush set $188.10 1 usually ships 7-19 days
19 183-8045 Conversion kit (obsolete) Call for price 1 (includes 20-21) usually ships 8-21 days
20 183-7519 Rear caster (sold individually) $190.51 2 usually ships 8-21 days
21 183-2167 Tire (solid) $388.78 2 usually ships 1-5 days
