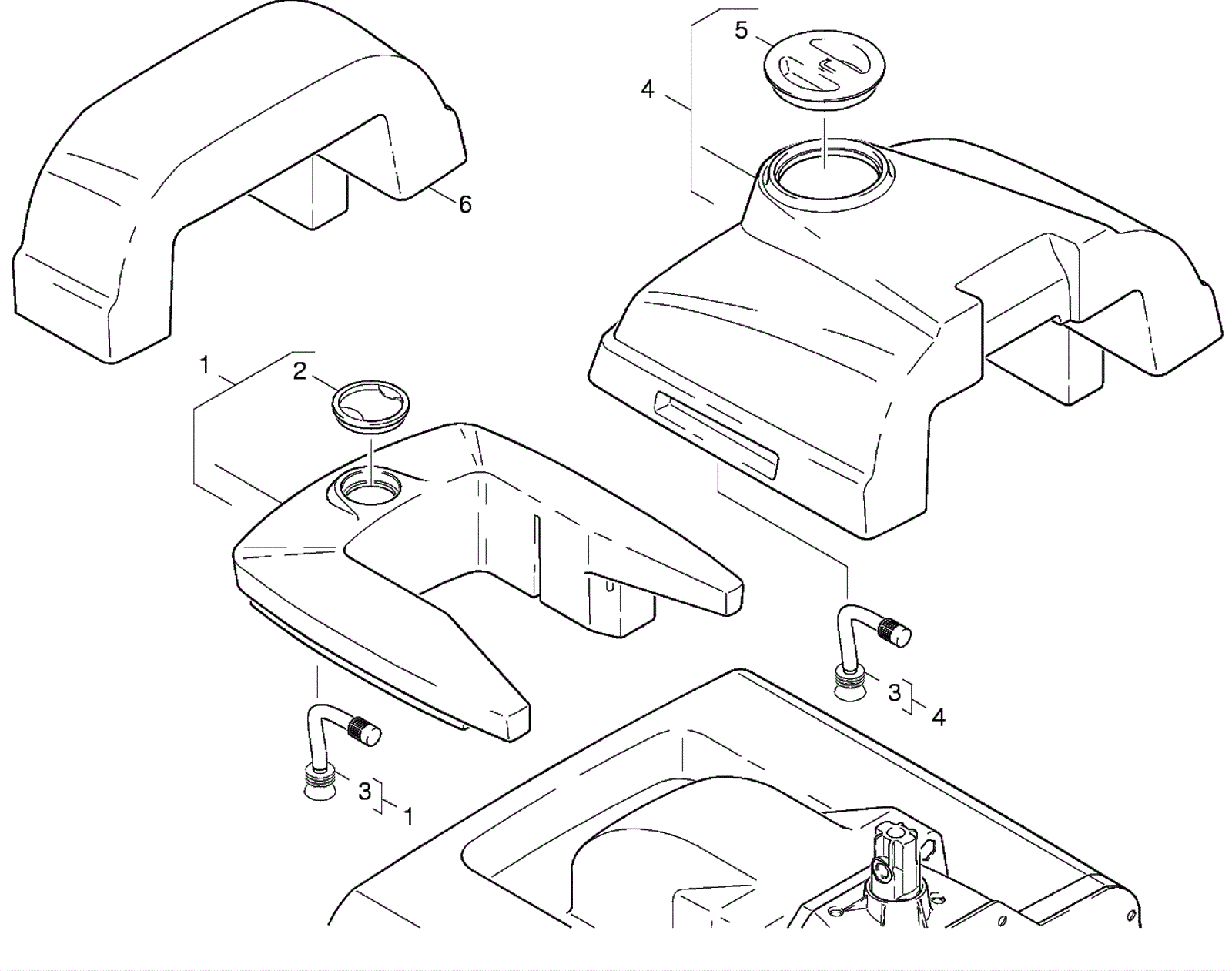

Tank Assembly

#PartDescription ReqNotesAvailability
1a 183-8029 3L tank 1 (for machine numbers 1.139-108.0 and 1.139-308.0) (includes 2-3)
1b 183-8030 3L tank anba tz 1 (for machine 1.139-508.0) (includes 2-3)
2 183-8031 Drain plug 1
3 183-8032 Valve (OBSOLETE) 1
4a 183-8033 10L tank 1 (for machine numbers 1.139-108.0 and 1.139-308.0) (includes 3,5)
4b 183-8027 10L tank 1 (for machine 1.139-508.0) (includes 3,5)
5 183-2858 Cover 1
6 183-8034 Tank weight 1
N/S 183-8034 Tank weight 1 (supplementary weight)
