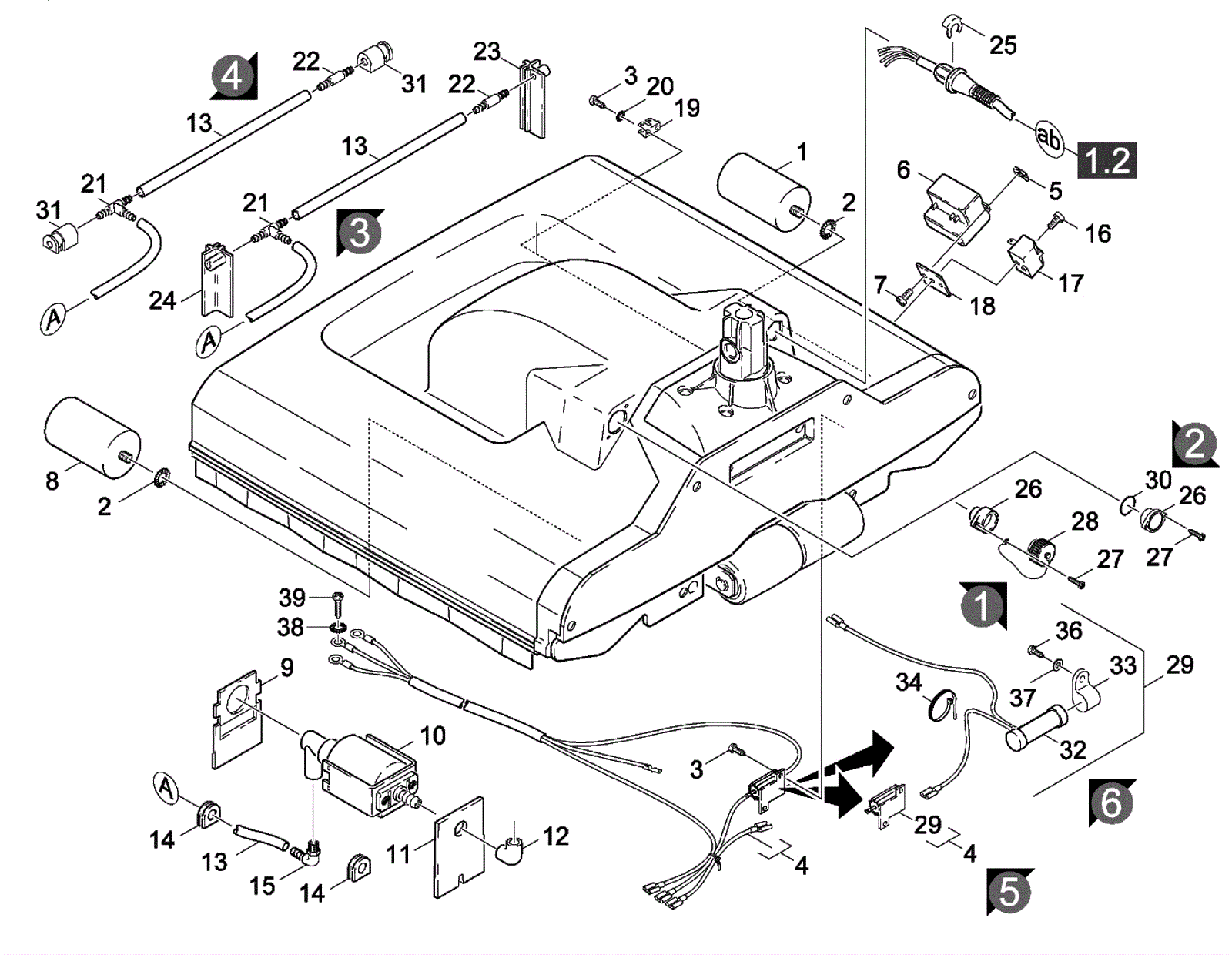

BR VARIO Electronics Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-0887 Capacitor $75.47 1 usually ships 1-5 days
2 183-2907 Serrated lock washer $1.35 2 usually ships 8-21 days
3 999-6715 Screw M3-.5 x 6mm pan head stainless steel $0.99 4 usually ships 11-24 days
4 183-8005 Cable tree (obsolete) $77.01 1 (version 5) (includes 29) usually ships 8-21 days
5 183-8965 Nut $20.93 1 usually ships 8-21 days
6 183-4638 Relay $124.30 1 usually ships 1-5 days
7 183-8006 Sheet metal screw ST4 2 $1.32 1 usually ships 7-19 days
8 183-0888 Capacitor $74.47 1 usually ships 1-5 days
9 183-8007 Bracket Call for price 1 usually ships 8-21 days
10 183-3042 120V pump $85.28 1 usually ships 8-21 days
11 183-8008 Bracket Call for price 1 usually ships 8-21 days
12 183-8009 Rubber bushing $7.98 1 usually ships 7-19 days
13 183-2736 Hose $9.65 1 (to order as cut goods) usually ships 8-21 days
14 173-6164 Cable bushing $8.47 2 usually ships 1-5 days
15 183-8010 1/8 inch angle socket $5.50 1 usually ships 8-21 days
16 183-0140 Sheet metal screw $1.35 1 (before SN 13843) usually ships 8-21 days
17 183-8011 Distributor strip $5.23 1 (before SN 13843) usually ships 7-19 days
18 183-8012 Bracket Call for price 1 (before SN 13843) usually ships 8-21 days
19 183-8013 Connector Call for price 1 usually ships 8-21 days
20 273-9209 Serrated lock washer $0.99 2 usually ships 7-19 days
21 183-2737 T rubber bushing $43.24 1 usually ships 8-21 days
22 183-8014 Hose nozzle $6.20 1 usually ships 8-21 days
23 183-8015 Right hand seal $14.41 1 (before SN 21311) (version 3) usually ships 7-19 days
24 183-8016 Left hand seal $14.41 1 (before SN 21311) (version 3) usually ships 7-19 days
25 183-8017 Clip $5.61 1 usually ships 8-21 days
26a 183-8018 Cover Call for price 1 (after SN 13842) (version 2) usually ships 8-21 days
26b 183-8019 Socket $22.22 1 (after SN 13842) (version 1) usually ships 7-19 days
27 183-2978 Screw M3 x 12mm $1.35 2 usually ships 8-21 days
28 183-8020 Protective cap $26.18 1 usually ships 7-19 days
29 183-8021 Automatic scrubber conversion kit (obsolete) $103.77 1 (version 6) (includes 32-34, 36-37) usually ships 8-21 days
30 183-8022 O-ring $2.42 1 usually ships 7-19 days
31 183-8023 Seal $40.65 2 (after SN 21310) (version 4) usually ships 8-21 days
32 183-8024 Resistor (obsolete) $99.47 1 (version 6) usually ships 8-21 days
33 183-8025 Clamp $5.50 1 usually ships 7-19 days
34 183-0144 Cable tie (Obsolete) $3.45 3 (version 6) usually ships 1-5 days
36 273-9959 Screw M3 x 8 $3.39 1 (version 6) usually ships 7-19 days
37 183-0201 Washer (Obsolete) $3.45 1 usually ships 1-5 days
38 183-8026 Serrated lock washer $4.79 1 usually ships 7-19 days
39 183-0872 Screw M5 x 12 $1.35 1 usually ships 1-5 days
