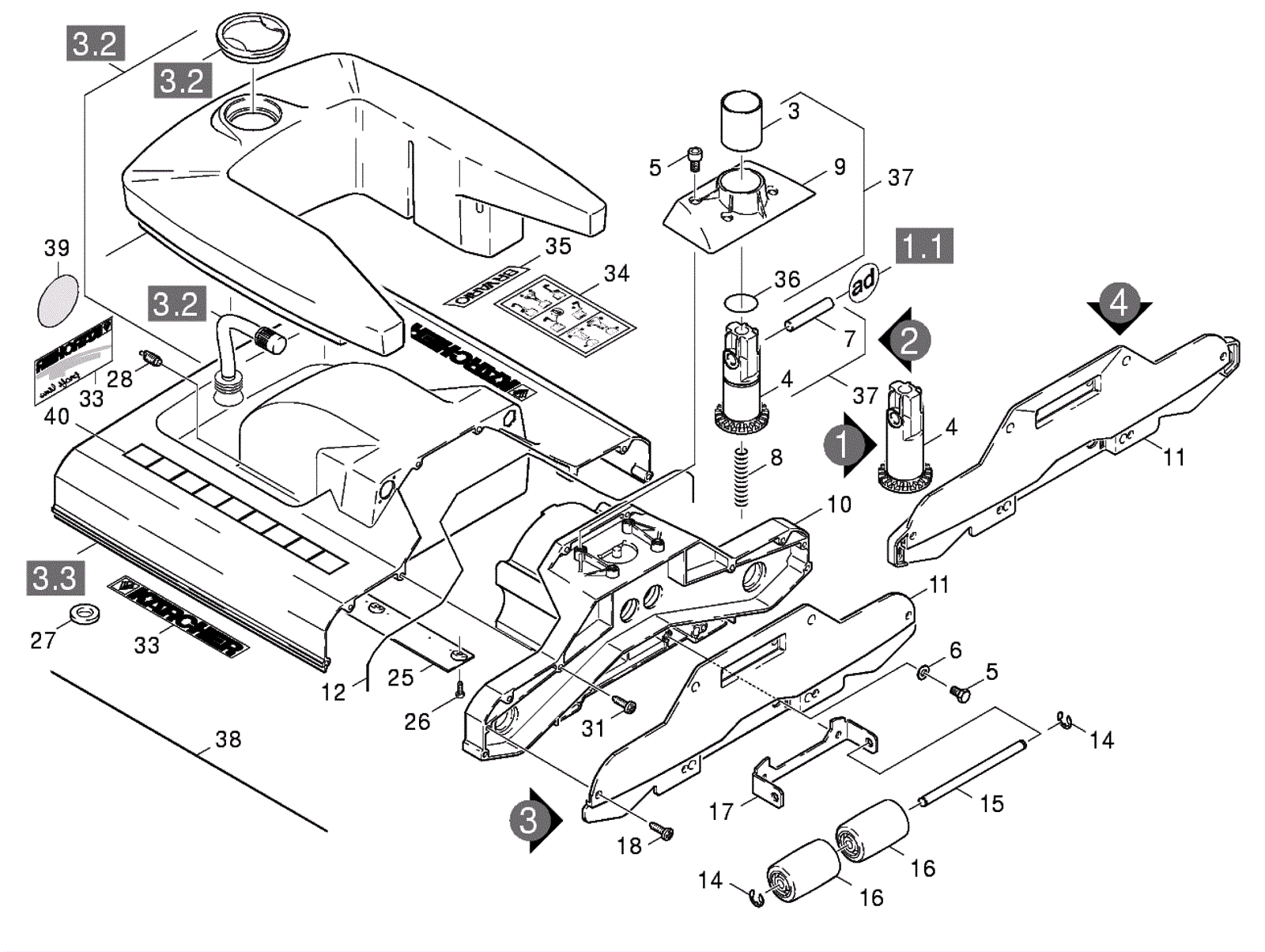

Power Brush Assembly

#PartDescription ReqNotesAvailability
3 183-8984 Plain bearing 1
4a 183-0885 Molded part 1 (version 2)
4b 183-8985 Molded part 1 (version 1)
5 183-7547 Screw 6
6 183-0471 Washer 2
7 183-8986 Bolt joint push handle 1
8 183-8987 Pressure spring 1
9 183-8988 Cover 1
10a 183-8989 Cover belt 1 (before SN 26273) (requires purchase of 10b)
10b 183-8990 Motor carrier 1 (after SN 26274)
11a 183-8991 Cover 1 (before SN 21535)
11b 183-8992 Covering cap 1 (between SN 21534 and 26272)
11c 183-8989 Cover belt 1 (after SN 26273)
12 183-2914 Cellular rubber string 1 (to order as cut goods)
14 183-2707 Lock washer (OBSOLETE) 2
15 183-8993 Axle 1
16a 183-4641 Roller 2
16b 183-8982 D45 roller(grey) 2 (hard)
17 183-8994 Sheet metal component holder wheel 1
18 183-0872 Screw M5 x 12 6
25 183-8995 Plate 2
26 183-0281 Screw 8
27 183-8996 Disk gasket 1 (after SN 20000)
28 183-2973 Pin 1
31 173-9043 Screw 5 x 25 8
33 183-8997 Profi line decal 1
34a 183-8998 Holm decal 1 (before SN 21535)
34b 183-8983 Holm decal 1 (after SN 21534)
35a 183-8999 Decal 1 (after SN 20000)
35b 183-9000 Br vario decal 1 (before SN 20001)
36 183-8000 Gasket 1 (version 2)
37 183-8001 Push handle joint assembly 1 (includes 3-5, 7, 9, 36)
38 183-8002 Seal string D2 2 (to order as cut goods)
39 183-8003 Danger decal 1
40 183-8004 Decal 1
