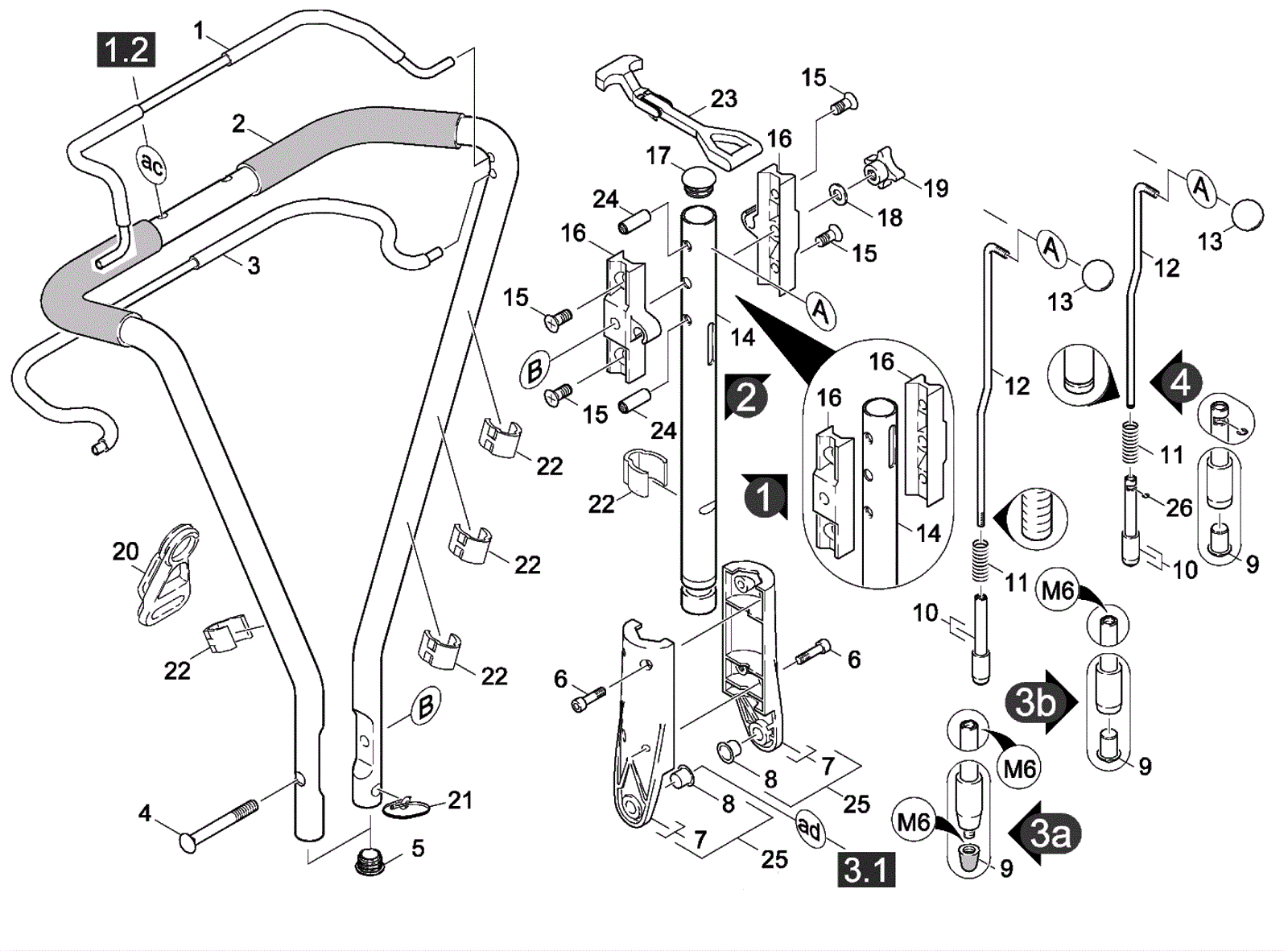

BR VARIO Shearing Shackle Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8963 Strap $46.12 1 usually ships 14-19 days
2 183-8946 Strap $231.47 1 usually ships 14-19 days
3 183-8947 Strap $46.75 1 usually ships 14-19 days
4 183-8948 Screw 10mm saucer head $1.76 1 usually ships 14-19 days
5 183-8949 Drain plug $1.10 2 usually ships 11-15 days
6 183-8950 Cheese head screw $2.63 4 usually ships 14-19 days
7 183-8951 Molded part push handle $49.49 2 (before SN 20001) usually ships 14-19 days
8 183-8952 Bushing $7.69 2 usually ships 14-19 days
9a 183-8953 Cap $7.69 1 (version 3A) usually ships 14-19 days
9b 183-0870 Clip-on cap (white) $18.69 1 usually ships 1-5 days
10 183-0869 Piston assembly with clip on cap (OBSOLETE) $69.22 1 (version 4) (after SN 20000) usually ships 14-19 days
11 183-0868 Spring $6.59 1 usually ships 1-5 days
12 183-0867 Bar $17.22 1 (version 4) (after SN 20000) usually ships 1-5 days
13 183-8954 SPHERICAL HEAD C 25-KU.SW DIN 319 - BALL BUTTON $5.50 1 usually ships 14-19 days
14a 183-0866 Strap $516.00 1 (before SN 20001) usually ships 1-5 days
14b 183-8955 Bottom strap part $88.34 1 (after SN 20000) usually ships 14-19 days
15 999-1985 Screw M8-1.25 x 16mm flat head phillips zinc $0.99 4 usually ships 16-20 days
16a 183-8956 Clamp $5.78 2 (before SN 20001) usually ships 11-15 days
16b 183-8957 Clamp $9.32 2 (after SN 20000) usually ships 14-19 days
17 183-0984 Plug $3.95 1 usually ships 14-19 days
18 273-6016 Washer $2.26 2 usually ships 11-15 days
19 183-8958 Star grip M10 $21.12 1 usually ships 11-15 days
20 183-0188 Pull relief $10.99 1 usually ships 14-19 days
21 183-8959 Cable tie $2.53 5 usually ships 11-15 days
22 273-7439 Cable clip $3.63 5 usually ships 1-5 days
23 183-8960 Clamping element (OBSOLETE) $29.25 1 (after SN 20000) usually ships 14-19 days
24 183-8961 Sleeve with female thread $2.64 2 (after SN 20000) usually ships 14-19 days
25 183-8962 Push handle acceptance $39.94 1 (after SN 20000) usually ships 14-19 days
26 183-0170 Washer lock $2.63 1 (version 4) usually ships 1-5 days
