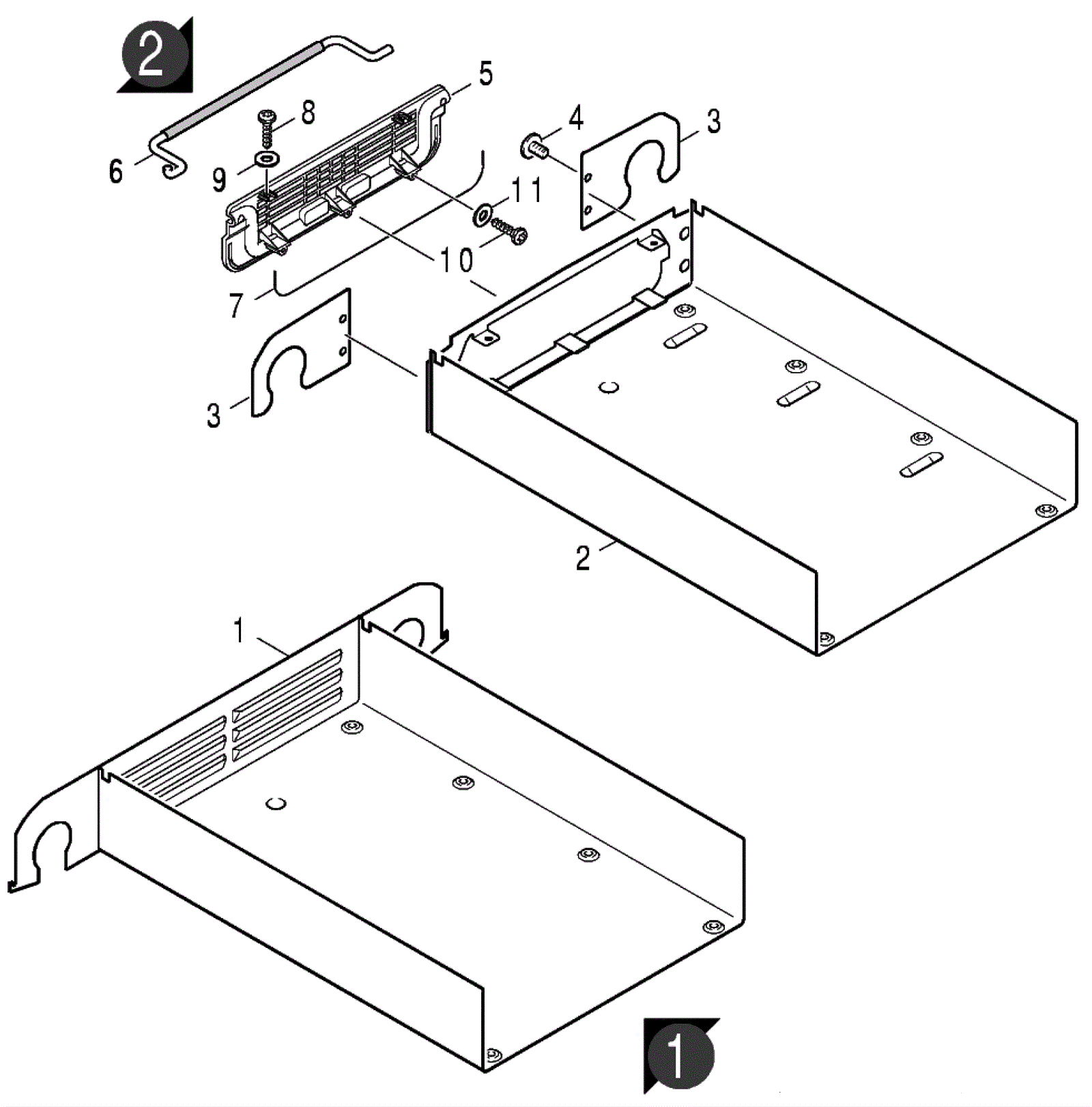

BR VARIO Bottom Plate Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8925 Bottom plate Call for price 1 (before SN 20001) usually ships 15-28 days
2a 183-8926 Sheet metal Call for price 1 (from SN 20000-21311) usually ships 15-28 days
2b 183-8917 Sheet metal $275.70 1 (after SN 21310) usually ships 15-28 days
3 183-8918 Bearing plate $32.15 2 (after SN 20002) usually ships 15-28 days
4 183-8919 Screw M5 oval $1.30 4 (after SN 20002) usually ships 15-28 days
5 183-8920 Handle part $12.84 1 (from SN 20000-21311) usually ships 15-28 days
6 183-8921 Strap Call for price 1 (after SN 21310) usually ships 15-28 days
7 183-2914 Cellular rubber string $4.84 1 (after SN 20002) (to order as cut goods) usually ships 15-28 days
8 183-8922 Screw $20.33 2 (after SN 20002) usually ships 15-28 days
9 183-8923 Washer $20.33 2 (after SN 20002) usually ships 15-28 days
10 183-8924 Screw $20.33 3 (after SN 20002) usually ships 15-28 days
11 999-9100 Washer M5 flat stainless steel $5.83 3 (after SN 20002) ships same day
