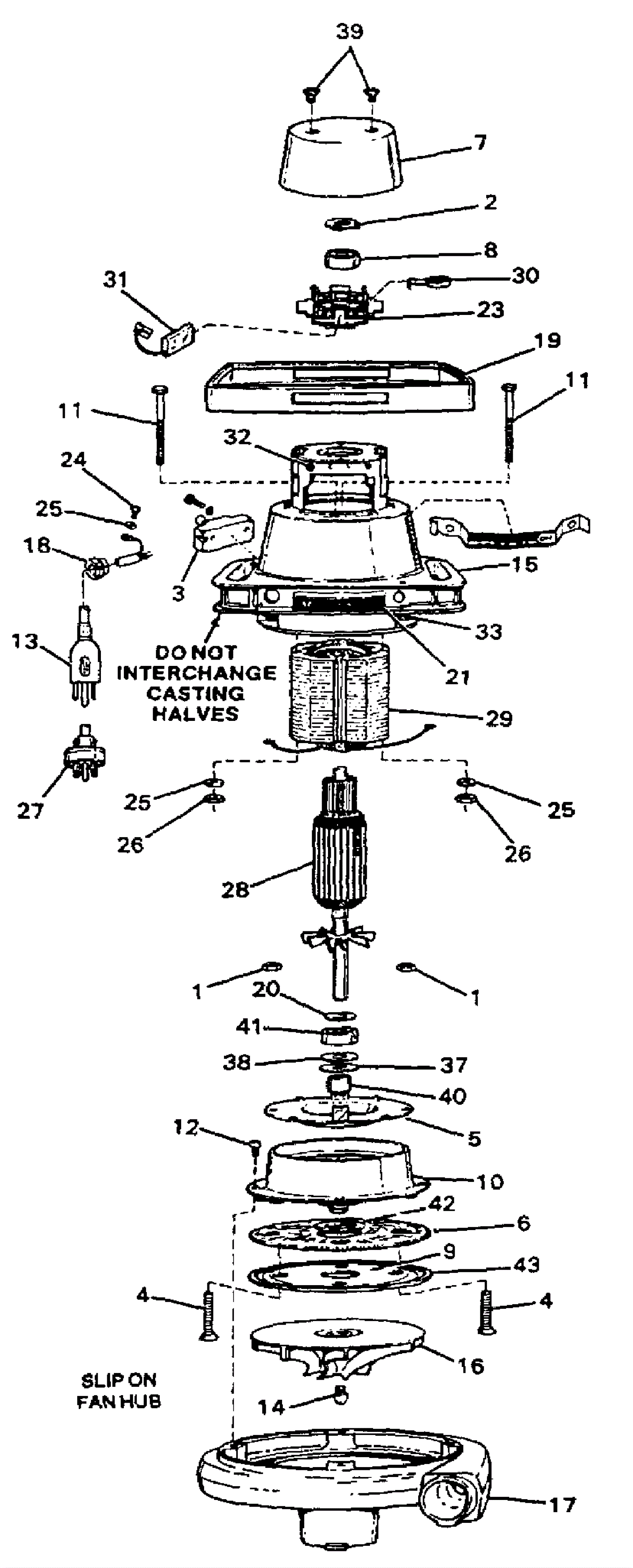

JUMBO ELECTRIC 95954 Blower Motor Assembly (8900H)

#PartDescriptionPriceReqNotesAvailability
1 183-0641 Nut 1/4-20 hex lock $1.30 4 usually ships 1-5 days
2 183-3111 Load spring $8.79 1 usually ships 8-21 days
3 183-3112 Switch $40.25 1 usually ships 8-21 days
4 183-1416 Screw $1.35 4 usually ships 8-21 days
5 183-3114 Cooling fan baffle $45.57 1 usually ships 8-21 days
6 183-3115 Fiberglass pad $5.45 1 usually ships 8-21 days
7 183-3116 Top cover $28.24 1 usually ships 8-21 days
8 183-3146 Bearing $9.12 1 ships same day
9 183-3118 Fan chamber plate $20.49 1 usually ships 8-21 days
10 183-3119 Cover plate $98.82 1 usually ships 8-21 days
11 183-3120 Screw $1.76 2 usually ships 8-21 days
12 183-3113 Screw $1.35 4 usually ships 8-21 days
13 183-3110 115V power cable assembly $82.83 1 usually ships 8-21 days
14 183-3121 Fan spinner $14.98 1 usually ships 8-21 days
15 183-3122 Motor housing $170.46 1 (includes 33) usually ships 8-21 days
16 183-3123 6 1/2 inch fan $171.03 1 usually ships 8-21 days
17 183-3124 Fan chamber (black) $137.17 1 usually ships 8-21 days
18 183-3125 Strain relief bushing $1.72 1 usually ships 8-21 days
19 183-3126 Bumper $65.63 1 usually ships 8-21 days
20 183-3127 Washer $22.48 1 usually ships 8-21 days
21 183-3128 Nameplate $5.50 1 usually ships 8-21 days
23 183-3129 Brush card S/A $157.15 1 usually ships 8-21 days
25a 183-4550 Washer #10 H/S lock $1.30 3 usually ships 8-21 days
25b 183-1417 Washer #10 lock $1.30 3 usually ships 8-21 days
26 999-0062 Nut 10-24 hex $0.99 2 ships same day
27 183-3130 Plug (OBSOLETE) Call for price 1 usually ships 8-21 days
28 183-3131 115V Armature $372.53 1 usually ships 8-21 days
29 183-3133 Field $267.52 1 usually ships 8-21 days
30 183-3135 U clip $2.44 2 usually ships 8-21 days
31 183-1418 Carbon brush $16.13 2 usually ships 8-21 days
32 183-3137 Screw $24.46 2 usually ships 8-21 days
33 183-3138 Screw (OBSOLETE) $5.30 4 (only available in 15) usually ships 8-21 days
34 183-3139 Nut $5.30 1 usually ships 8-21 days
35 183-1415 Nut (OBSOLETE) Call for price 1 usually ships 8-21 days
36 183-3141 Brush spring and damper S/A $32.09 2 usually ships 8-21 days
37 183-3142 Felt washer $2.06 1 usually ships 8-21 days
38 183-3143 Split washer $2.31 1 usually ships 8-21 days
39 183-3144 Screw $1.35 2 usually ships 8-21 days
40 183-3145 Spacer $6.18 1 ships same day
41a 183-3146 Bearing $9.12 1 ships same day
41b 183-3146 Bearing $9.12 1 ships same day
42 183-3147 Gasket $1.35 1 usually ships 8-21 days
43 183-1419 Gasket $10.85 1 usually ships 8-21 days
46 183-4320 Brush card pad $1.30 2 usually ships 8-21 days
