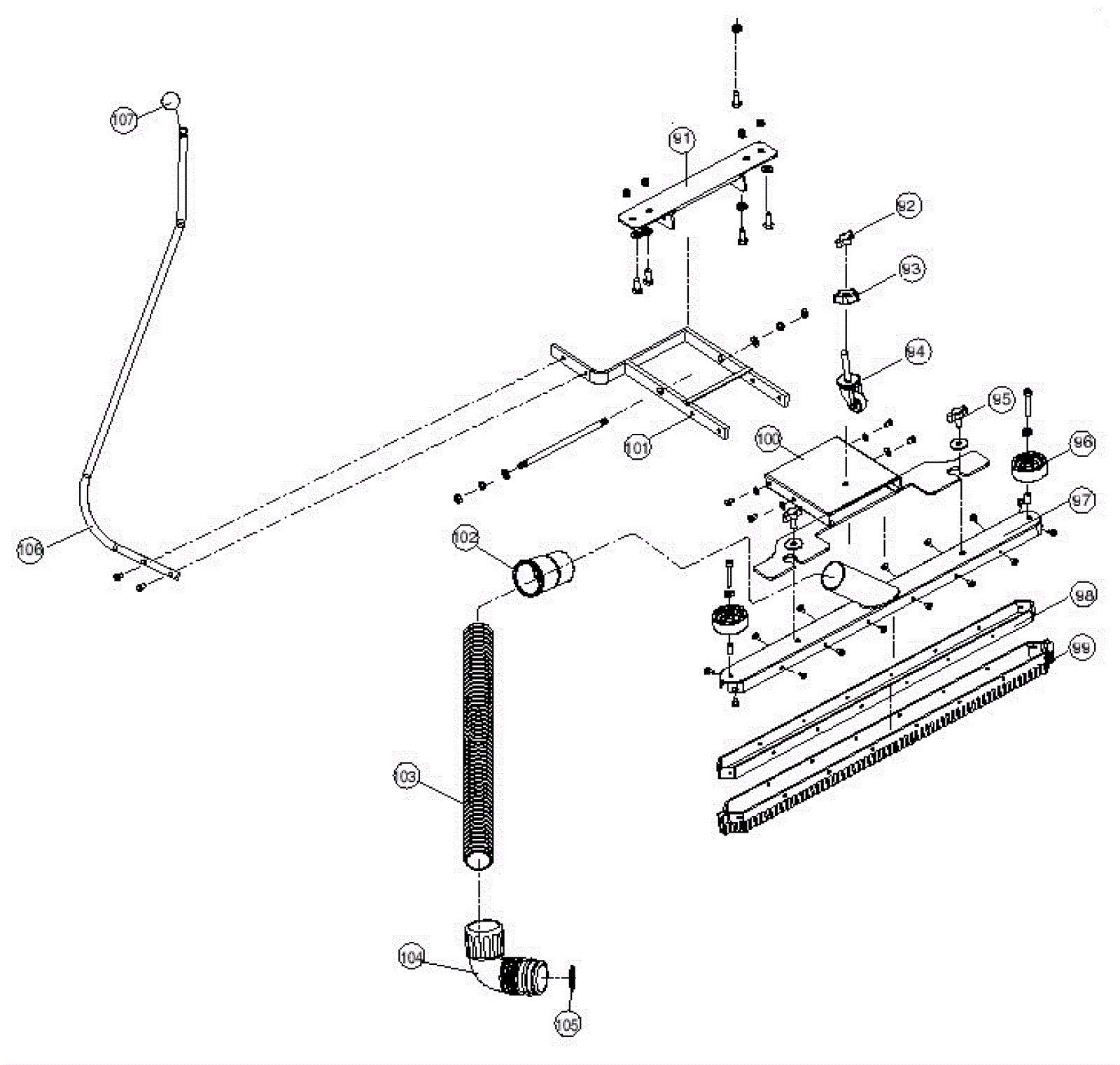

P15 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
91 183-9626 U-shaft assembly $26.06 1 usually ships 8-21 days
92 183-5017 Thumb wheel $5.21 1 usually ships 8-21 days
93 183-9627 Fixed nut $4.07 1 usually ships 8-21 days
94 183-5016 Caster wheel $13.08 1 ships same day
95 183-5025 Wing nut $4.71 1 usually ships 8-21 days
96 183-5023 Squeegee wheel $5.21 1 usually ships 8-21 days
97 183-5020 Squeegee body $58.38 1 usually ships 8-21 days
98 183-5021 Retainer strip $21.42 1 usually ships 8-21 days
99 190-0226 Squeegee blade (pkg of 2) $32.71 1 ships same day
100 183-9286 Mounting plate $89.62 1 usually ships 8-21 days
101 183-9628 Pedal bracket (OBSOLETE) Call for price 1 usually ships 8-21 days
102 183-9060 Connector $14.48 1 ships same day
103 183-9629 Hose $11.62 1 usually ships 8-21 days
104a 183-9630 Bend connector $8.71 1 usually ships 8-21 days
104b 183-5029 Elbow connector $14.25 1 usually ships 8-21 days
105 183-5031 Gasket $1.35 1 usually ships 8-21 days
106a 183-9631 Adjuster lever $40.56 1 ships same day
106b 190-0556 Handle hook $9.44 1 usually ships 10-27 days
107 183-9632 Adjuster lever knob $12.30 1 usually ships 8-21 days
