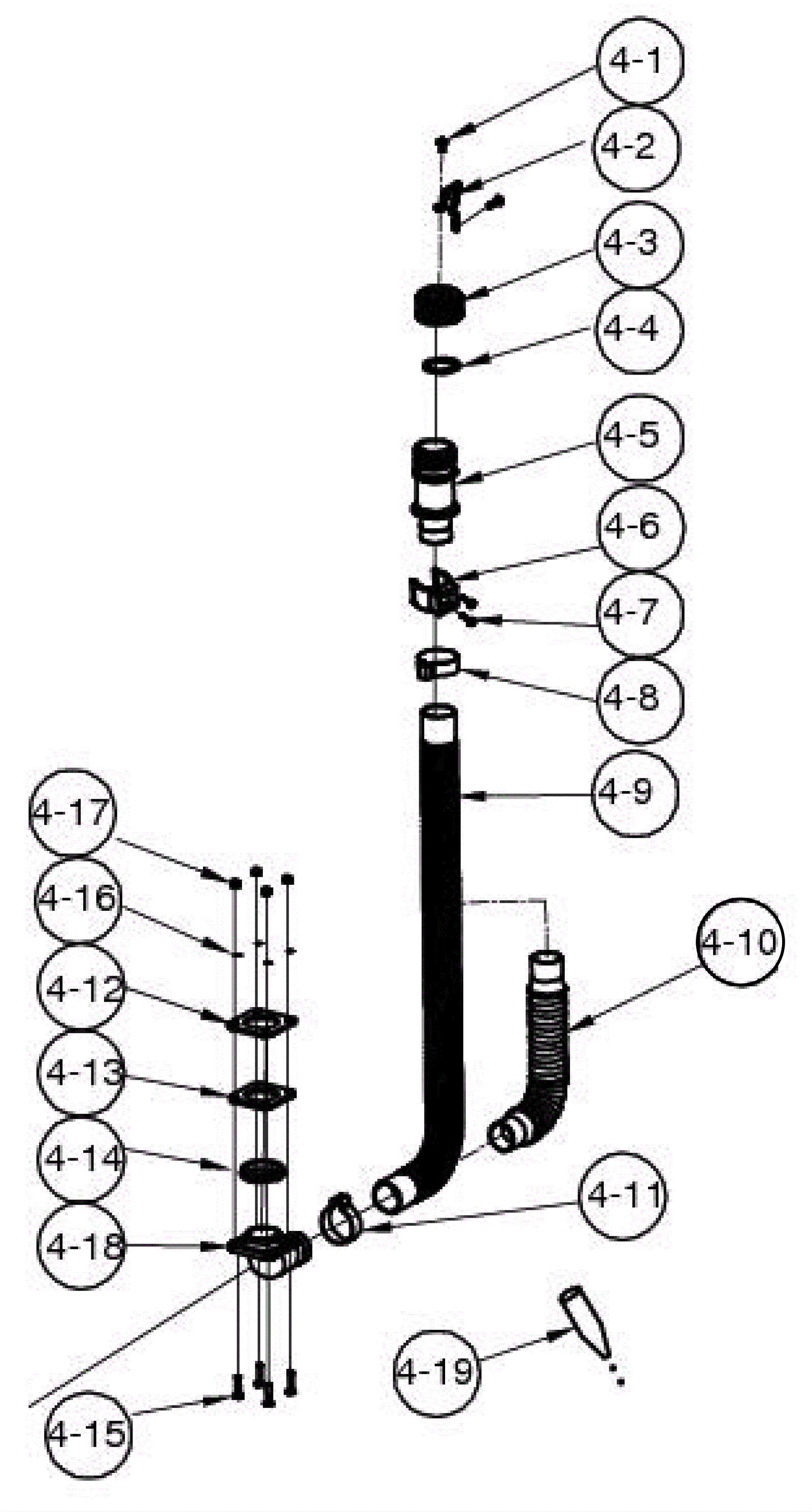

P15 Drain Hose Assembly

#PartDescriptionPriceReqNotesAvailability
4-1 183-9611 Screw M3.5 x 8mm $1.35 2 usually ships 8-21 days
4-2 183-9612 Chain (OBSOLETE) Call for price 1 usually ships 8-21 days
4-3 183-9613 Cap $5.50 1 usually ships 8-21 days
4-4 183-4889 Gasket $1.35 1 usually ships 8-21 days
4-5 183-9614 Connector $3.25 1 usually ships 8-21 days
4-6 183-9615 Hook $1.53 1 usually ships 8-21 days
4-7 183-4844 Screw M4 x 12mm $1.35 1 usually ships 8-21 days
4-8 183-9616 Clamp $5.91 1 usually ships 8-21 days
4-9 183-9617 Drain hose kit $62.67 1 usually ships 8-21 days
4-10 183-9618 Hose protector $12.22 1 usually ships 8-21 days
4-11 183-9619 Clamp $5.78 1 usually ships 8-21 days
4-12 183-9620 Plate $12.01 1 usually ships 8-21 days
4-13 183-9621 Top seal $1.95 1 usually ships 8-21 days
4-14 183-9622 Bottom seal $1.46 1 usually ships 8-21 days
4-15 183-9623 Screw M4 x 26mm $0.99 4 usually ships 8-21 days
4-16 183-9624 Washer (OBSOLETE) Call for price 4 usually ships 8-21 days
4-17 183-4958 Nut (OBSOLETE) $0.99 4 usually ships 8-21 days
4-18 183-9625 Bend connector $4.76 1 usually ships 8-21 days
