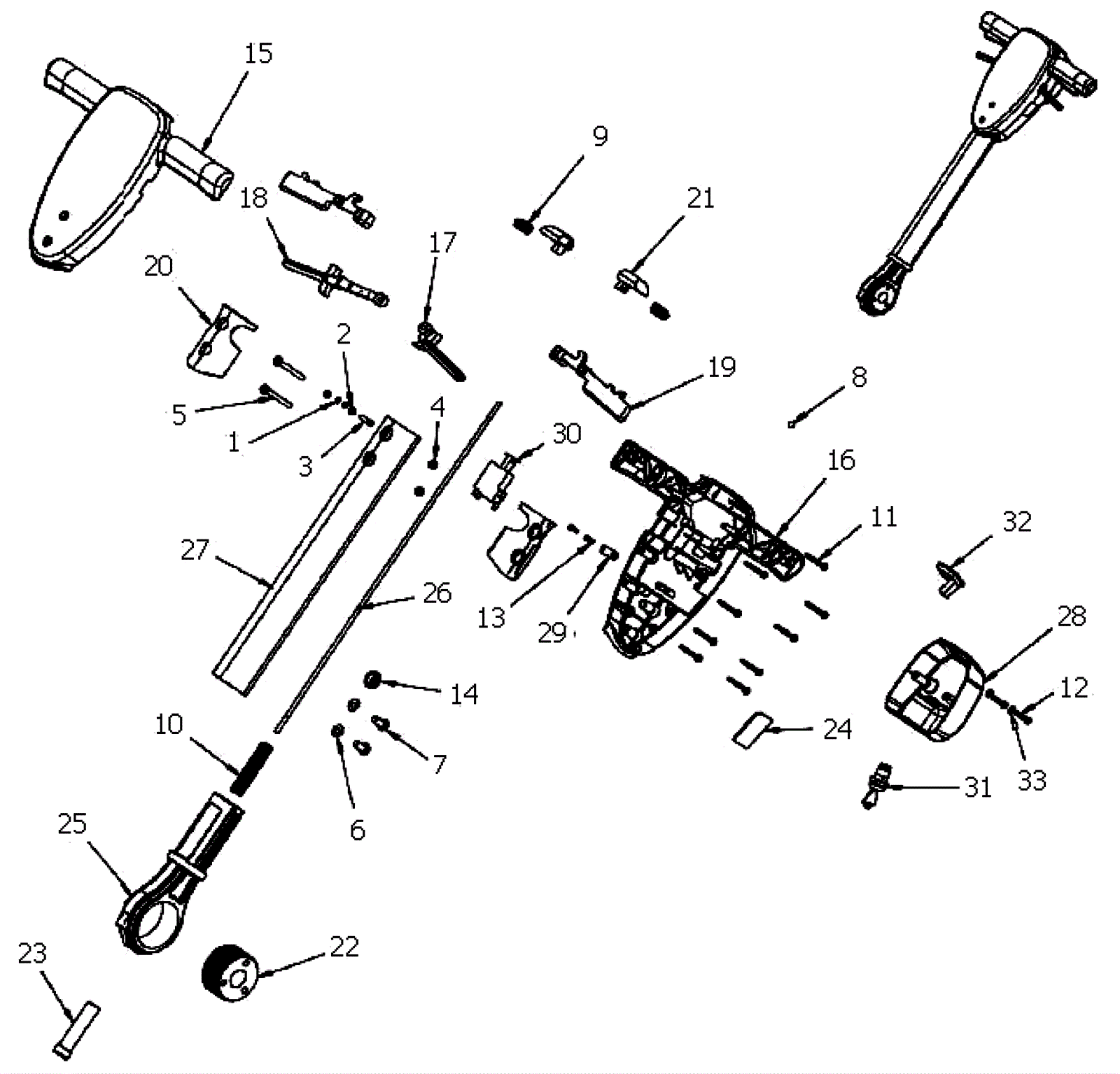

GLAZER BATTERY Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-1193 Spring washer $1.18 2 usually ships 9-20 days
2 183-1187 Screw M8 x 50mm socket head zinc plated $1.18 2 usually ships 9-20 days
3 183-1188 Screw self tapping $3.76 1 usually ships 9-20 days
4 183-1189 Motor cover (yellow) $64.27 2 usually ships 9-20 days
5 183-1194 Screw M6 x 50mm pan head zinc plated $1.72 2 usually ships 9-20 days
6a 183-1162 Washer $5.00 2 usually ships 9-20 days
6b 183-1163 Washer M8 $1.60 usually ships 9-20 days
7 183-1165 Bolt M8 x 16mm $1.18 2 usually ships 9-20 days
8 183-1195 8mm ball bearing $1.23 2 usually ships 9-20 days
9 183-1196 Interlock handle spring $1.23 2 usually ships 9-20 days
10 183-1197 Dog gear spring $13.99 1 usually ships 9-20 days
11 183-1143 Self tapping screw $2.02 9 usually ships 9-20 days
12 183-1198 Screw self tapping $1.18 2 usually ships 9-20 days
13 183-1199 Screw M4.5 x 13mm $1.39 2 usually ships 9-20 days
14 183-1200 Diaphragm grommet Call for price 1 usually ships 9-20 days
15 183-2276 Control box front $17.99 1 usually ships 9-20 days
16 183-2277 Control box back $17.99 1 usually ships 9-20 days
17 183-1203 Solution lever Call for price 1 usually ships 9-20 days
18 183-1204 Handle adjustment lever $2.92 1 usually ships 9-20 days
19b 183-1206 Trigger Lever $4.34 usually ships 9-20 days
20 183-1207 Rubber handle boot $46.99 2 usually ships 9-20 days
21 183-1208 Interlock button Call for price 2 usually ships 9-20 days
22 183-1209 Handle adjustment gear $147.99 1 usually ships 9-20 days
23 183-1210 Dog gear adjusting handle $47.99 1 usually ships 9-20 days
24a 183-1211 Black handle socket plate $1.72 1 usually ships 9-20 days
24b 183-1212 Blank handle socket plate $1.66 usually ships 9-20 days
25 183-1213 Knuckle molding Call for price 1 usually ships 9-20 days
26 183-1214 Adjusting rod $5.63 1 usually ships 9-20 days
27 183-1215 Oval handle tube $64.99 1 usually ships 9-20 days
28 183-1216 Handle box (black) $9.81 1 usually ships 9-20 days
29 183-1217 Cable clamp $4.99 1 usually ships 9-20 days
30 183-1218 Switch $41.99 1 usually ships 9-20 days
31 183-1219 Nut 5/16-18 hex $0.90 1 usually ships 9-20 days
32 183-1220 Trucharge module kit $41.11 1 usually ships 9-20 days
33 183-1221 Washer (black) $1.23 2 usually ships 9-20 days
N/S 183-1222 Spray kit $220.43 usually ships 9-20 days
N/S 183-1117 Complete wiring harness (98494) $80.50 usually ships 9-20 days
