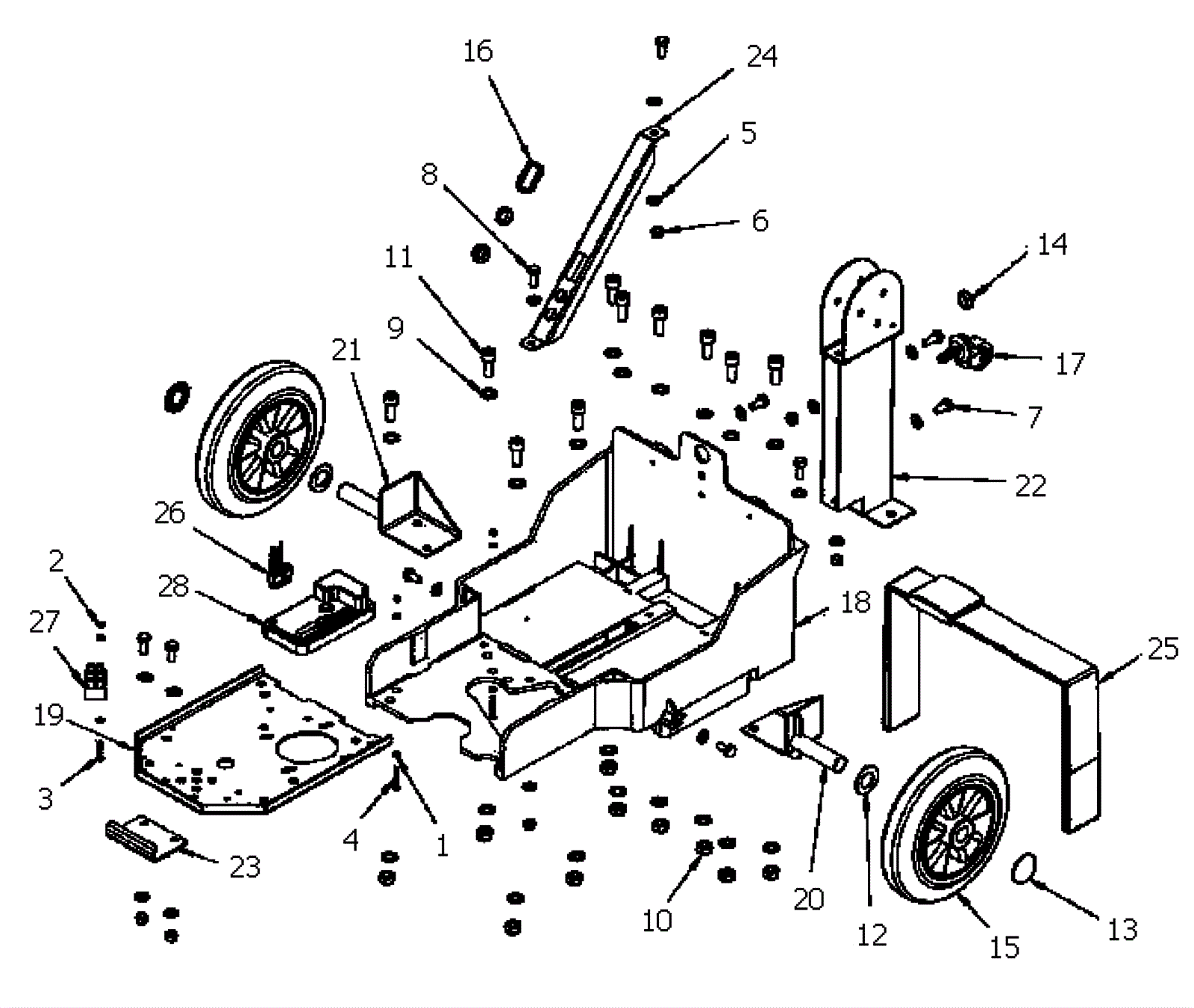

GLAZER BATTERY Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-1158 Washer M4 form a zinc plated Call for price 6 usually ships 14-19 days
2 183-1159 Nut M4 nyloc zinc plated Call for price 3 usually ships 14-19 days
3 183-1160 Screw M4 x 25mm pan head stainless steel $3.95 1 usually ships 14-19 days
4 183-1161 Screw M4 x 30mm pan head zinc plated Call for price 2 usually ships 14-19 days
5a 183-1162 Washer $5.50 16 usually ships 14-19 days
5b 183-1163 Washer M8 $3.95 (M8 x 27) usually ships 14-19 days
6 183-1164 Nut M8.5 nyloc zinc plated Call for price 6 usually ships 14-19 days
7 183-1165 Bolt M8 x 16mm $3.95 4 usually ships 14-19 days
8 183-1166 Bolt M8 x 20mm Call for price 6 usually ships 14-19 days
9 183-1168 Washer M10 plain zinc plated Call for price 20 usually ships 14-19 days
10 183-1167 Nut M10 nyloc zinc plated Call for price 10 usually ships 14-19 days
11 183-1169 Bolt M10 x 25 mm socket head Call for price 10 usually ships 14-19 days
12 183-1132 Washer #20 plain zinc plated $2.63 2 usually ships 14-19 days
13 183-1170 Cap 20mm starlock $3.95 2 usually ships 14-19 days
14 183-1171 Grommet 14.3 bore $3.95 3 usually ships 14-19 days
15 183-1172 200mm Wheel with roller bearing $31.89 2 usually ships 14-19 days
16 183-1174 32mm grommet Call for price 1 usually ships 14-19 days
17 183-1173 Lightweight caster $15.39 1 usually ships 14-19 days
18 183-1176 Chassis (black) $144.09 1 usually ships 14-19 days
19 183-1177 Motor tray Call for price 1 usually ships 14-19 days
20 183-1178 Left hand stub axle $26.39 1 usually ships 14-19 days
21 183-1179 Right hand stub axle Call for price 1 usually ships 14-19 days
22 183-1180 Handle support $59.39 1 usually ships 14-19 days
23 183-1181 Lift handle (black) $20.41 1 usually ships 14-19 days
24 183-1182 Tie bar $10.99 1 usually ships 14-19 days
25 183-1183 Battery strap Call for price 1 usually ships 14-19 days
26 183-1184 14w mini fit junior molex Call for price 1 usually ships 14-19 days
27 183-1185 3 way terminal block Call for price 1 usually ships 14-19 days
28 183-1186 I drive controller (d51123) $357.49 1 usually ships 14-19 days
