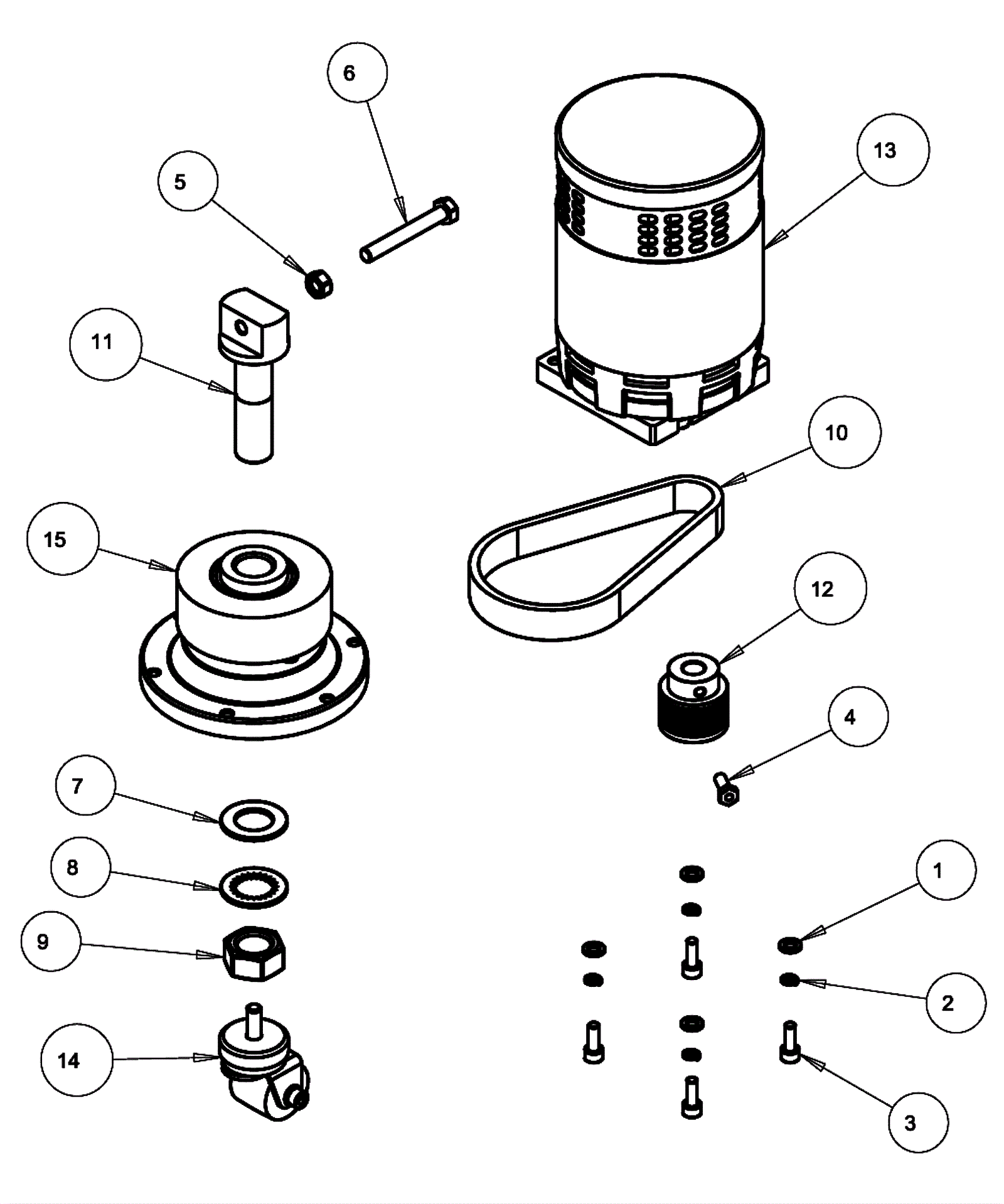

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
183-1126
|
Washer |
Call for price
|
8 |
|
usually ships 14-19 days |
2 |
183-1127
|
Nut M6.5 nyloc zinc plated |
$2.63
|
4 |
|
usually ships 14-19 days |
3 |
183-1128
|
Bolt #M6 x 16 |
$3.95
|
1 |
|
usually ships 14-19 days |
4 |
183-1129
|
Socket head screw #M6 x 20 zinc plated |
$1.30
|
4 |
|
usually ships 14-19 days |
5 |
183-1130
|
Nut M8 zinc plated |
$2.63
|
1 |
|
usually ships 14-19 days |
6 |
183-1131
|
Hex head bolt #M8 x 90 zinc plated |
Call for price
|
1 |
|
usually ships 14-19 days |
7 |
183-1132
|
Washer #20 plain zinc plated |
$2.63
|
1 |
|
usually ships 14-19 days |
8 |
183-1133
|
Washer #20 internal shakeproof |
Call for price
|
1 |
|
usually ships 14-19 days |
9 |
183-1134
|
Nut #20 zinc plate |
Call for price
|
1 |
|
usually ships 14-19 days |
10 |
183-1135
|
Belt vee |
$15.39
|
1 |
|
usually ships 14-19 days |
11 |
183-1136
|
Center spindle |
$56.09
|
1 |
|
usually ships 14-19 days |
12 |
183-1137
|
Pulley motor |
$48.39
|
1 |
|
usually ships 14-19 days |
13 |
183-1138
|
Motor 24 volts 350 watts |
$448.79
|
1 |
|
usually ships 14-19 days |
14 |
183-1139
|
Castor assembly |
$75.89
|
1 |
|
usually ships 14-19 days |
15 |
183-1140
|
Floating assembly |
$296.99
|
1 |
|
usually ships 14-19 days |
N/S |
183-1117
|
Complete wiring harness (98494) |
$98.99
|
1 |
|
usually ships 14-19 days |
N/S |
183-1138
|
Motor 24 volts 350 watts |
$448.79
|
1 |
|
usually ships 14-19 days |
