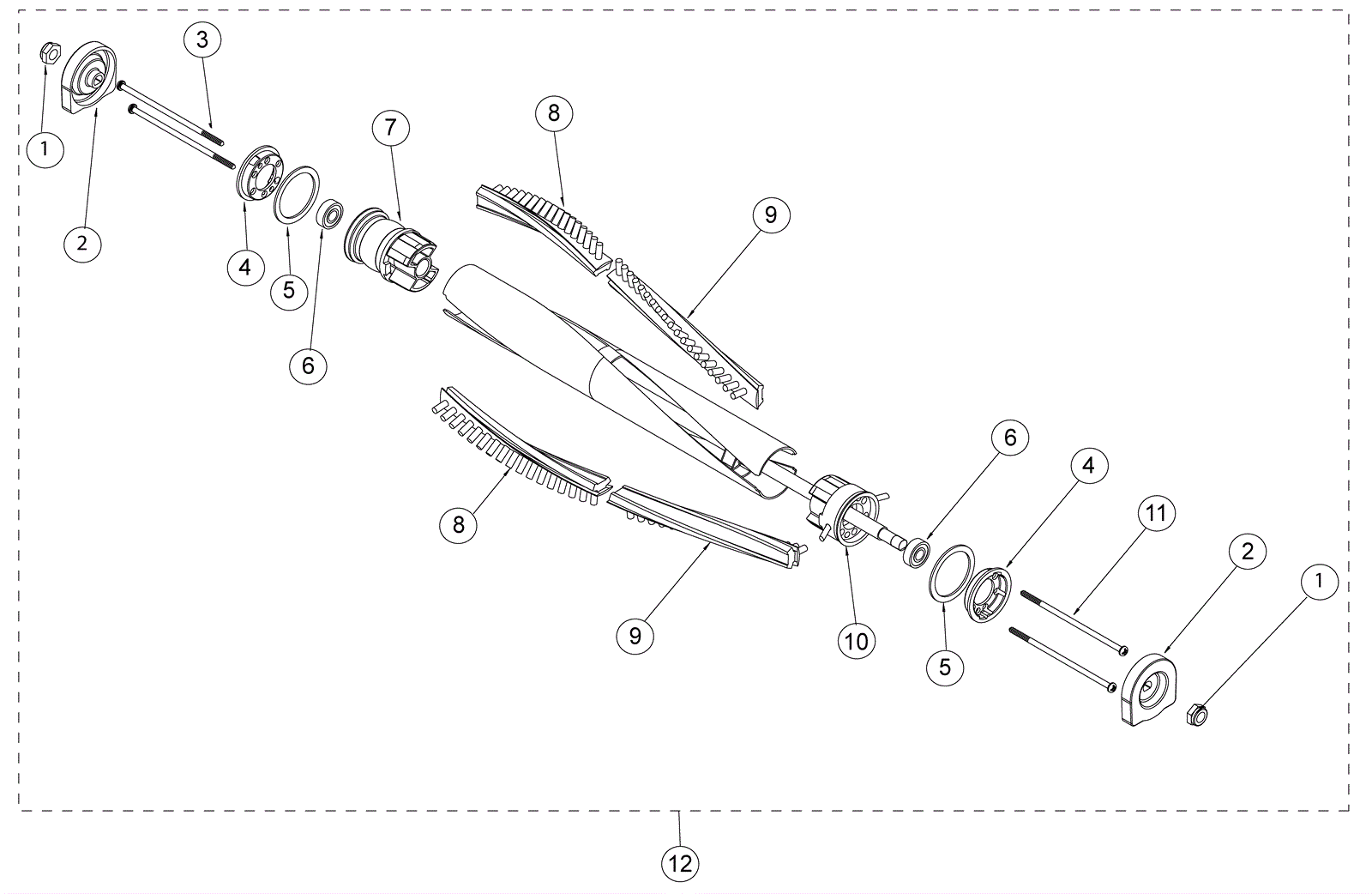

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-2407
|
Nut 1/4-28 hex lock |
2 |
|
|
2 |
183-2408
|
Metal end cap |
2 |
|
|
3 |
183-2409
|
Pulley end screw 80 mm |
2 |
|
|
4 |
183-2410
|
Retaining ring |
2 |
|
|
5 |
183-2411
|
Felt seal |
1 |
|
|
6 |
183-2412
|
Bearing |
2 |
|
|
7 |
183-2413
|
Belt pulley |
1 |
|
|
8 |
183-2414
|
Short bush strip (white) |
1 |
|
|
9 |
190-1091
|
Bristle |
1 |
|
|
10 |
183-2416
|
Bearing holder |
1 |
|
|
11 |
183-2417
|
Non-pulley screw 40mm |
2 |
|
|
12 |
190-1093
|
Agitator Assembly with White Bristles |
1 |
(includes 1-11) |
|
