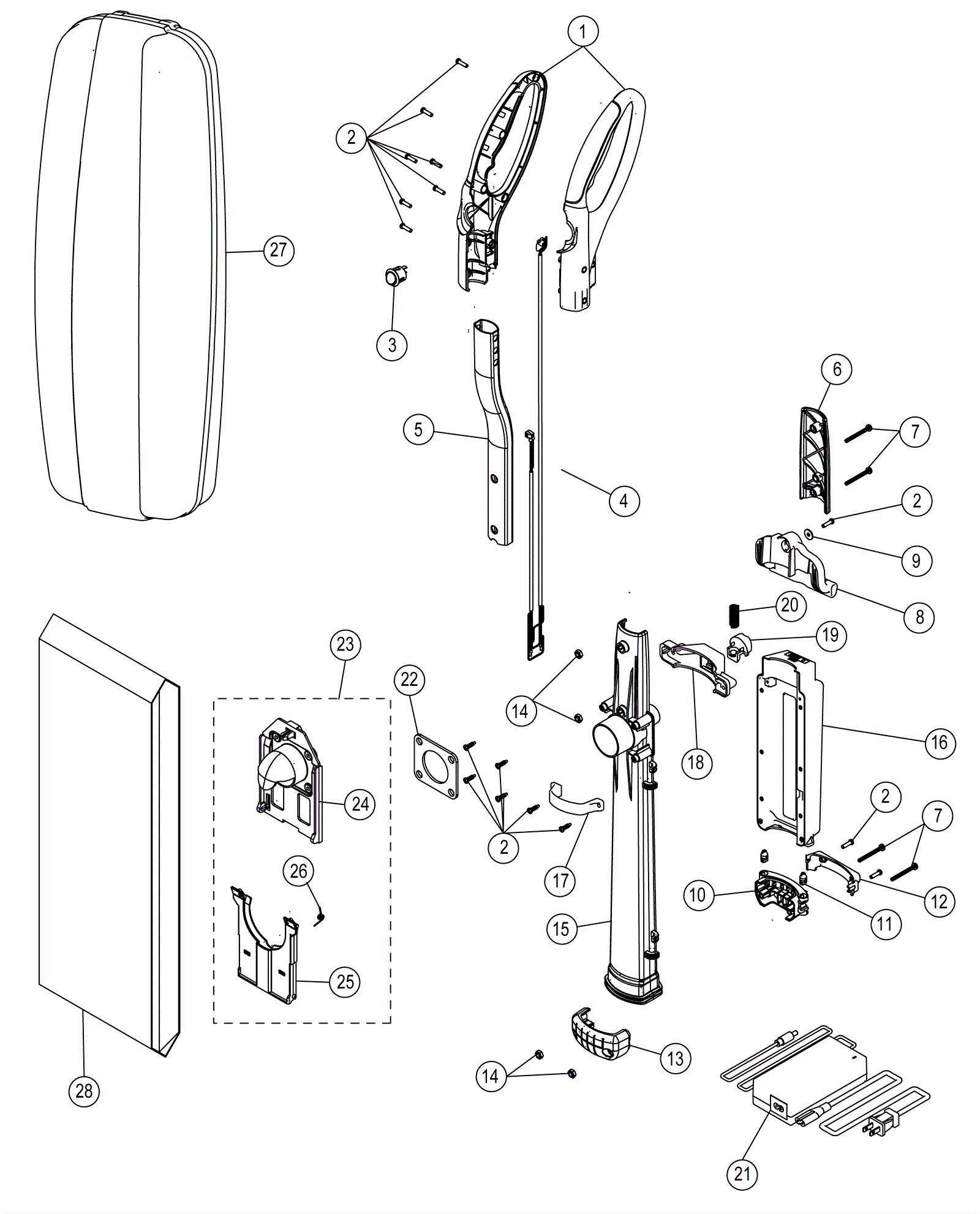

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-2342
|
Handle grip assembly |
2 |
|
|
2 |
183-2343
|
Screw M8-18 x 5/8 |
15 |
|
|
3 |
183-2344
|
Switch |
1 |
|
|
4 |
183-2345
|
Wire harness |
1 |
|
|
5 |
183-2346
|
Handle tube |
1 |
|
|
6 |
183-2347
|
Back handle cover |
1 |
|
|
7 |
183-2348
|
Screw |
4 |
|
|
8 |
183-2349
|
Carry handle |
1 |
|
|
9 |
183-2350
|
Washer |
1 |
|
|
10 |
183-2351
|
Back neck coupling |
1 |
|
|
11 |
183-2352
|
Post |
2 |
|
|
12 |
183-2353
|
Cable cover |
1 |
|
|
13 |
183-2354
|
Front neck coupling |
1 |
|
|
14 |
183-2355
|
Hex nut |
4 |
|
|
15 |
183-2356
|
Handle duct |
1 |
|
|
16 |
183-2357
|
BATTERY PACK 2.9 AH DC FOR CORDLESS ULW |
1 |
|
|
17 |
183-2358
|
Battery clamp |
1 |
|
|
18 |
183-2359
|
Latch case |
1 |
|
|
19 |
183-2360
|
Latch button |
1 |
|
|
20 |
183-2361
|
Latch spring |
1 |
|
|
21 |
190-1481
|
ZM-800 charger |
1 |
|
|
22 |
183-2363
|
Bag mount seal |
1 |
|
|
23 |
183-2364
|
Bag mount assembly |
1 |
|
|
24 |
183-2365
|
Bag mount |
1 |
|
|
25 |
183-2366
|
Bag mount hinge |
1 |
|
|
26 |
183-2367
|
Bag collar spring |
1 |
|
|
27 |
183-2368
|
Hard shell bag |
1 |
|
|
28 |
183-8697
|
HEPA bag (pkg of 10) |
1 |
|
|
