YA1023A

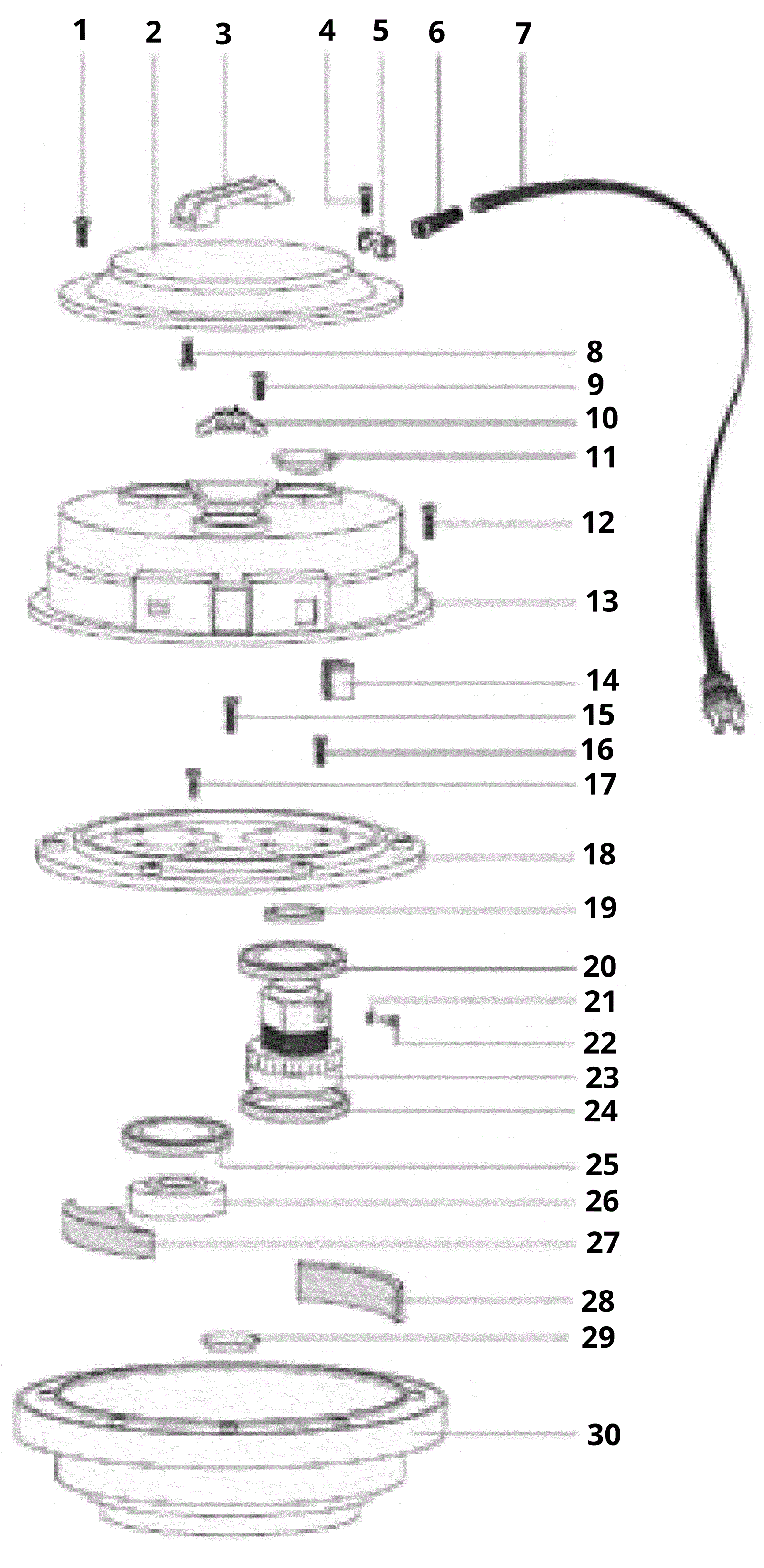

Vacuum Head Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
6
usually ships 8-21 days
2
183-9807
Top cover
$116.69
1
usually ships 8-21 days
3
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
1
usually ships 8-21 days
4
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
2
usually ships 8-21 days
5
183-9808
Cord grip
Call for price
1
usually ships 8-21 days
6
183-9809
Strain relief
$2.70
1
usually ships 8-21 days
7
183-9810
Power cord
Call for price
1
usually ships 8-21 days
8
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
1
usually ships 8-21 days
9
183-9811
Screw M5 x 14
Call for price
1
usually ships 8-21 days
10
183-9812
Terminal board
Call for price
1
usually ships 8-21 days
11
183-9813
Vacuum head cover cap
Call for price
2
usually ships 8-21 days
12
183-9814
Screw M5 x 35
Call for price
8
usually ships 8-21 days
13
183-9815
Vacuum head cover
Call for price
1
usually ships 8-21 days
14
183-9816
Switch
Call for price
1
usually ships 8-21 days
15
183-9817
Screw M5 x 30
Call for price
1
usually ships 8-21 days
16
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
4
usually ships 8-21 days
17
183-9806
Screw M5 x 20 (OBSOLETE)
$2.22
8
usually ships 8-21 days
18
183-9818
Baffle plate
Call for price
1
usually ships 8-21 days
19
183-9819
Gasket
Call for price
3
usually ships 8-21 days
20
183-9820
Gasket
$5.10
1
usually ships 8-21 days
21
183-9821
Washer
Call for price
1
usually ships 8-21 days
22
183-9822
Screw
Call for price
1
usually ships 8-21 days
23
183-7440
Vacuum motor
$242.17
1
usually ships 1-5 days
24
183-9820
Gasket
$5.10
1
usually ships 8-21 days
25
183-9820
Gasket
$5.10
1
usually ships 8-21 days
26
183-9823
Motor gasket
Call for price
2
usually ships 8-21 days
27
183-9824
Large foam baffle
$39.99
3
usually ships 8-21 days
28
183-9825
Flat foam baffle
Call for price
3
usually ships 8-21 days
29
183-9826
Vacuum head base cap
Call for price
2
usually ships 8-21 days
30
183-9827
Vacuum head base
$87.22
1
usually ships 8-21 days
