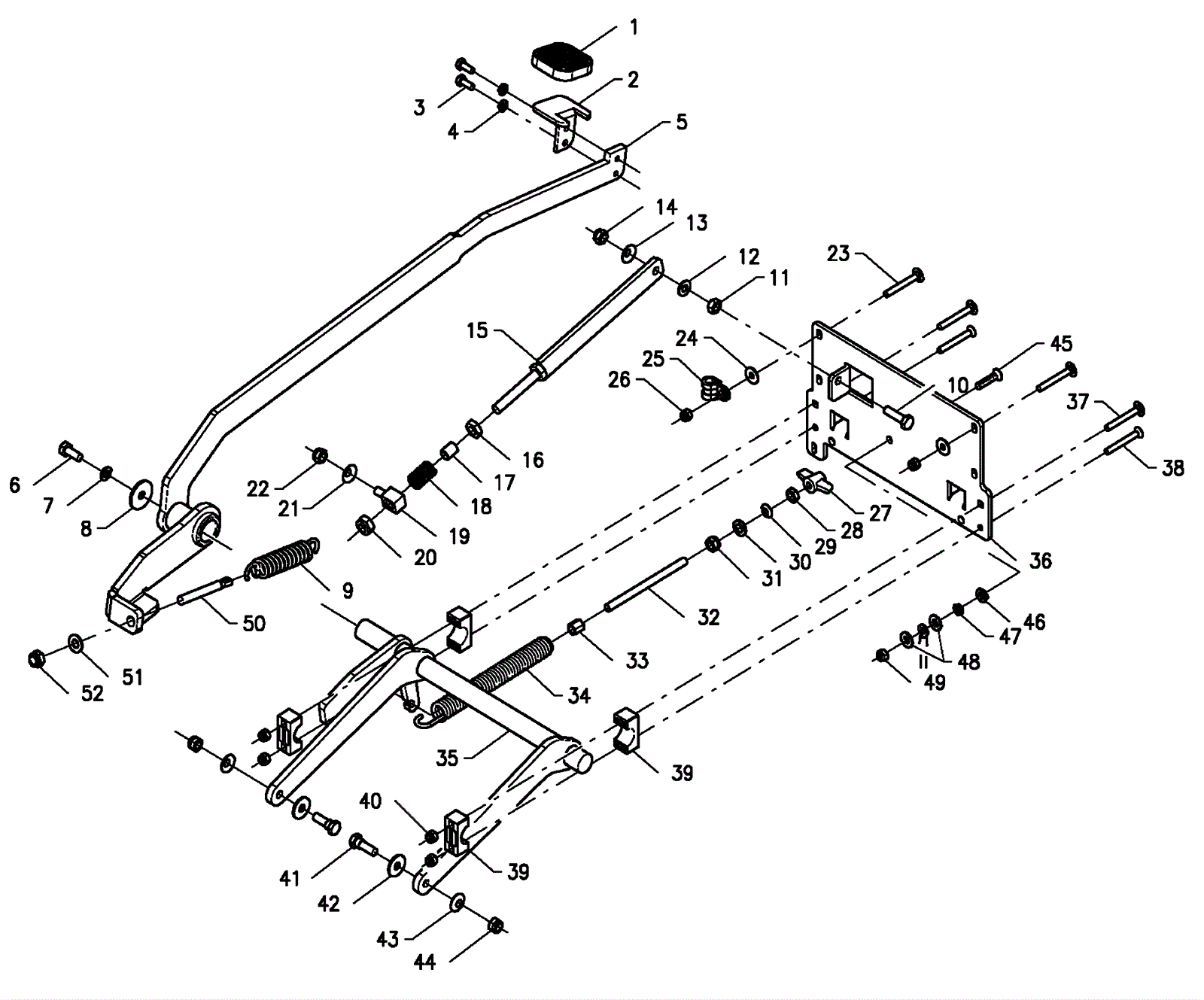

OB 20/14 Base Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8433 Pedal cover $8.08 1 usually ships 8-21 days
2 183-8434 Pedal plate $12.79 1 usually ships 8-21 days
4 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
5 183-9551 Lifting arm $402.69 1 usually ships 8-21 days
6 183-2473 Screw M8 x 20mm $1.23 1 usually ships 8-21 days
7 999-0674 Washer M8 split lock plain finish $0.99 1 ships same day
8 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
9 183-9552 Traction spring Call for price 1 usually ships 8-21 days
10 183-2546 Screw M8 x 35mm $1.23 1 usually ships 8-21 days
11 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
12 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
13 183-9554 Cupped washer $1.25 1 usually ships 8-21 days
14 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
15 183-9553 Arm Call for price 1 usually ships 8-21 days
16 183-9348 Nut $1.23 1 usually ships 8-21 days
17 183-8427 Spring guide $7.42 1 usually ships 8-21 days
18 183-8429 Compression spring $3.38 1 usually ships 8-21 days
19 183-8426 Arm adjuster $21.29 1 usually ships 8-21 days
20 183-8424 Nut $1.23 1 usually ships 8-21 days
21 183-9554 Cupped washer $1.25 1 usually ships 8-21 days
22 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
23 183-8430 Screw M6 x 70 $1.23 4 usually ships 8-21 days
24 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
25 183-9381 Collar for sheath $10.87 1 usually ships 8-21 days
26 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
27 183-4768 Wing nut $4.04 1 usually ships 8-21 days
28 183-8267 Nut INOX $1.23 1 usually ships 8-21 days
29 183-4766 Spherical bushing $11.23 1 usually ships 8-21 days
30 183-9116 Spherical bushing bracket $18.69 1 usually ships 8-21 days
31 183-9130 Lock nut $1.23 1 ships same day
32 183-4764 Threaded tie rod $9.67 1 usually ships 8-21 days
33 183-4763 Insert $1.23 1 usually ships 8-21 days
34 183-4762 Spring traction $27.21 1 usually ships 8-21 days
35 183-9556 Base control arm Call for price 1 usually ships 8-21 days
36 183-9557 Plate Call for price 1 usually ships 8-21 days
37a 183-3178 Screw M6 x 50mm $1.18 2 usually ships 8-21 days
37b 183-8526 Screw M6 x 14 $1.23 2 ships same day
38 999-1337 Screw M6 x 50mm socket head $0.99 2 ships same day
39 183-7613 Base control holder $6.69 4 usually ships 8-21 days
40 183-8271 Nut INOX $1.23 4 usually ships 8-21 days
41 183-9558 Stud bolt Call for price 2 usually ships 8-21 days
42 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
43 183-9554 Cupped washer $1.25 2 usually ships 8-21 days
44 183-9130 Lock nut $1.23 2 ships same day
45 183-8227 Screw M6 x 25 $1.23 1 (after serial number 18001938) usually ships 8-21 days
46 183-9559 Lock washer INOX $1.23 1 (after serial number 18001938) usually ships 8-21 days
47 183-9157 Nut $1.23 1 (after serial number 18001938) usually ships 8-21 days
48 183-2457 Washer INOX $1.23 2 (after serial number 18001938) usually ships 8-21 days
49 183-8271 Nut INOX $1.23 1 (after serial number 18001938) usually ships 8-21 days
50 183-9560 Tie rod spring $11.82 1 (after serial number 18002779) usually ships 8-21 days
51 183-8260 Washer INOX $1.23 1 (after serial number 18002779) usually ships 8-21 days
52 183-9130 Lock nut $1.23 1 (after serial number 18002779) ships same day
