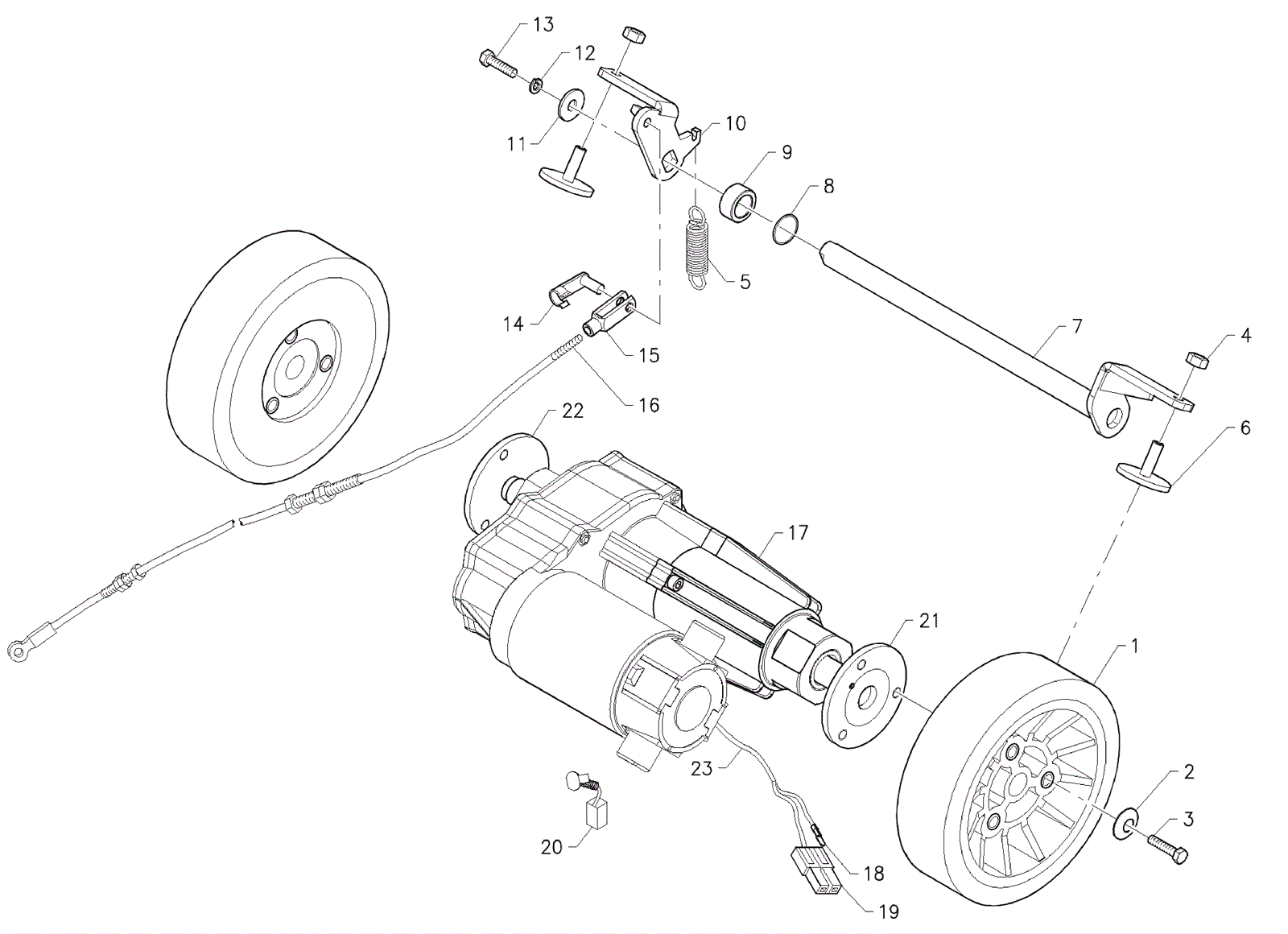

OB 20/14 Motor Break Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-7573 Flanged wheel $145.77 2 usually ships 8-21 days
1b 183-9549 Wheel (red) $228.25 2 usually ships 8-21 days
2 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
3 183-9538 Screw M8 x 40mm $1.29 6 usually ships 8-21 days
4 183-9540 Nut INOX $1.23 2 usually ships 8-21 days
5 183-2572 Spring $6.48 1 usually ships 8-21 days
6 183-9199 Brake pad $14.63 2 usually ships 8-21 days
7 183-9541 Brake shaft $77.50 1 usually ships 8-21 days
8 183-2497 O-ring $1.23 1 usually ships 8-21 days
9 183-9543 Spacer $12.81 1 usually ships 8-21 days
10 183-9544 Brake shaft lever $37.46 1 usually ships 8-21 days
11 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
12 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
13 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 ships same day
14 183-7638 Fork clip $2.95 1 usually ships 8-21 days
15 183-9197 Fork $5.53 1 usually ships 8-21 days
16 183-9542 Geared motor assembly (OB 20/14) $1,870.82 1 usually ships 8-21 days
17a 183-9545 Geared motor assembly $3,250.05 1 usually ships 8-21 days
18 183-8468 Connector $2.12 2 usually ships 8-21 days
19 183-8469 30amp Connector (red) $2.72 2 usually ships 8-21 days
20 183-9546 Carbon brush $26.21 2 usually ships 8-21 days
21 183-9547 Right hand axle shaft $168.34 1 usually ships 8-21 days
22 183-9548 Left hand axle shaft $159.00 1 usually ships 8-21 days
23 183-9550 Sheath M8 x 450mm $3.06 1 usually ships 8-21 days
