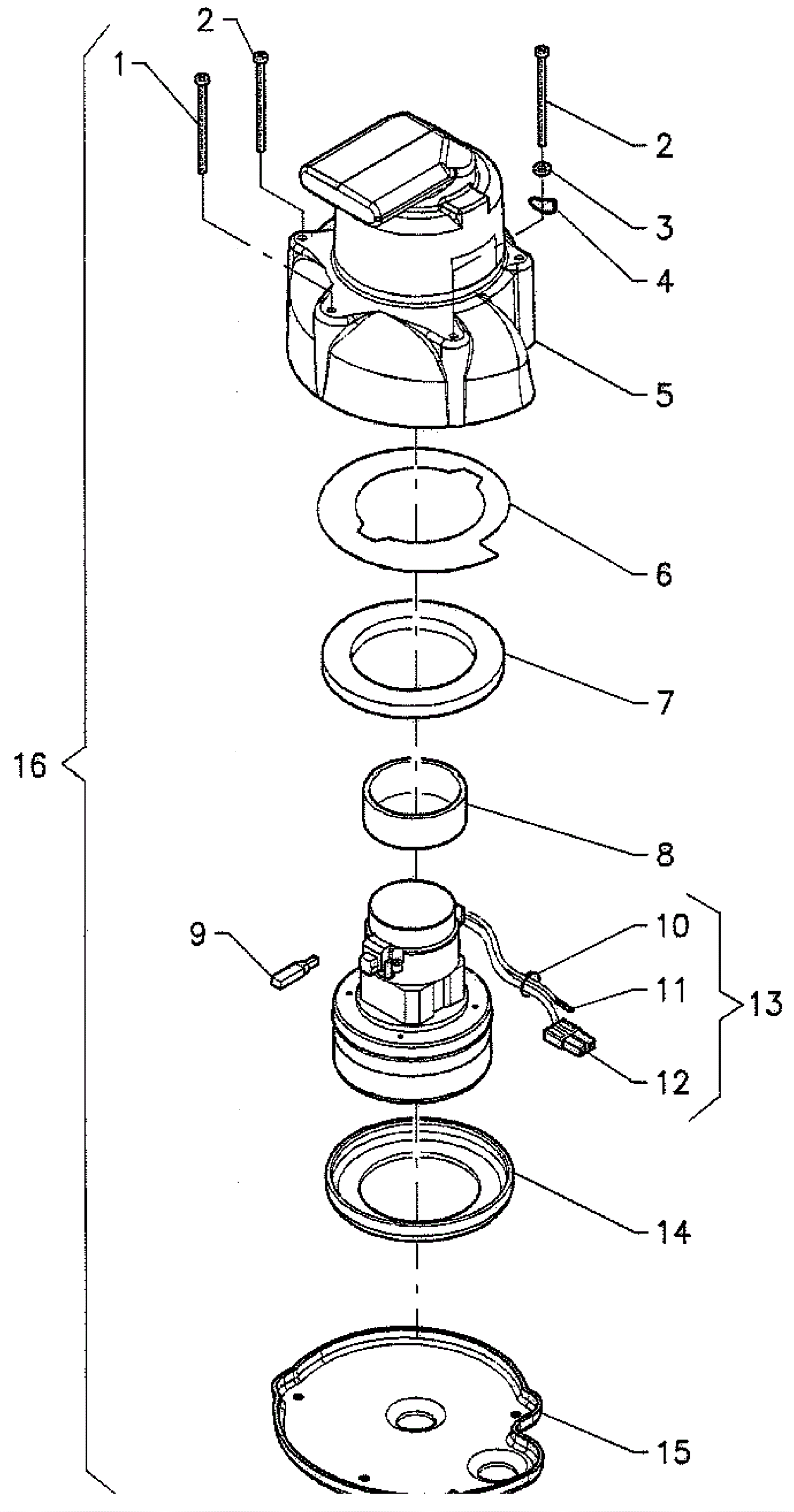

OB 20/14 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8461 Screw $1.54 3 usually ships 15-28 days
2 183-8462 Screw $6.35 2 usually ships 15-28 days
3 183-9527 Bushing $1.54 1 usually ships 15-28 days
4 183-8481 Ring with gasket $4.40 1 usually ships 15-28 days
5 183-8464 Motor housing $149.26 1 usually ships 15-28 days
6 183-8465 Protection ring $11.15 1 usually ships 15-28 days
7 183-8466 Gasket $8.03 1 usually ships 15-28 days
8 183-8476 Ring $4.84 1 usually ships 15-28 days
9 183-4701 Carbon brushes $27.82 2 usually ships 15-28 days
10 183-8467 Clamp $1.54 2 usually ships 15-28 days
11 183-8468 Connector $2.42 2 usually ships 15-28 days
12 183-8469 30amp Connector (red) $3.30 2 usually ships 15-28 days
13 183-8166 Vacuum motor $676.73 1 (includes 10-12) usually ships 15-28 days
14 183-8471 Vacuum motor gasket $16.67 1 usually ships 15-28 days
15 183-8472 Motor base $99.14 1 usually ships 15-28 days
16 183-9528 Complete motor with housing $1,013.05 1 (includes 1-15) usually ships 15-28 days
