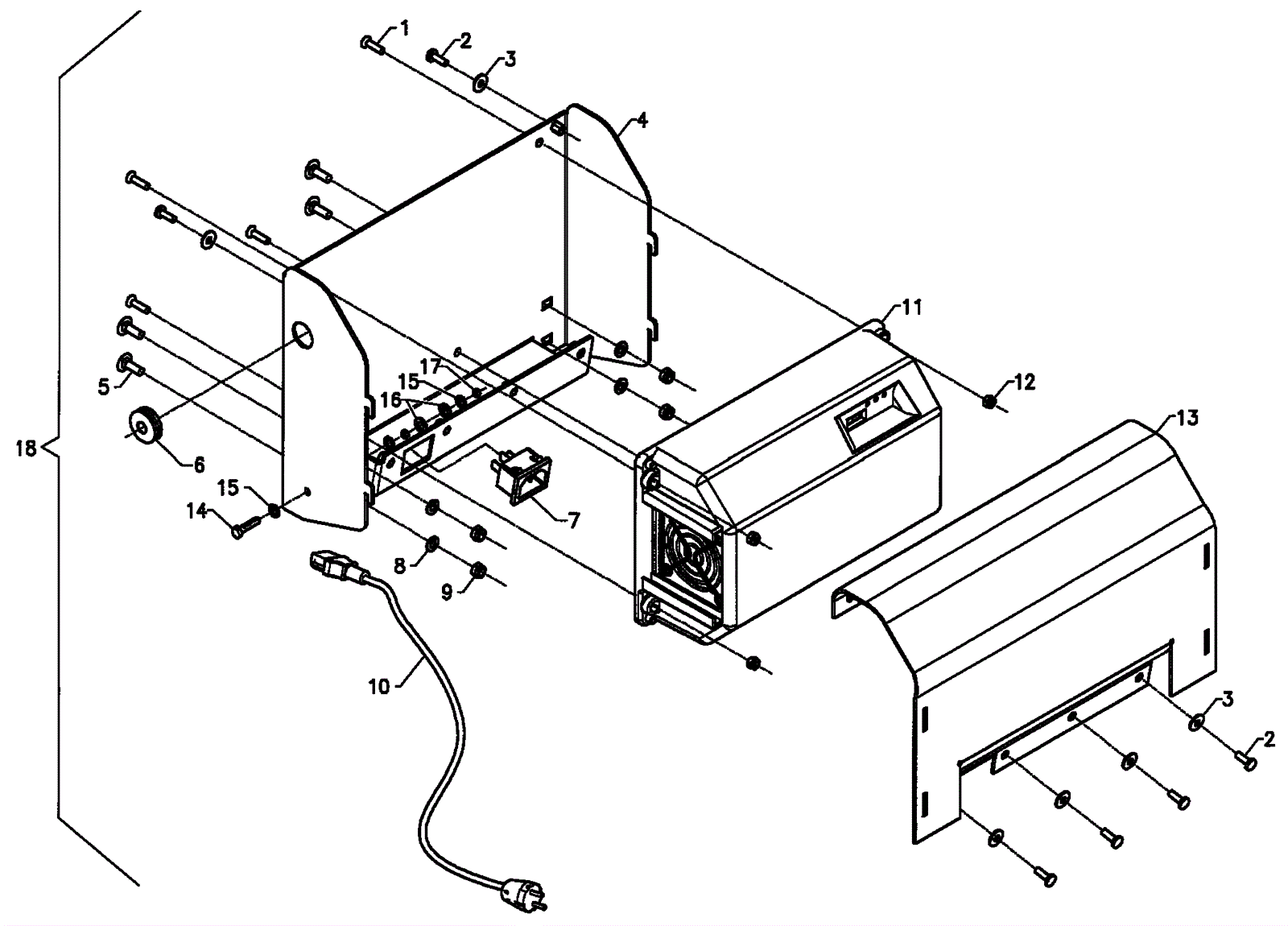

OB 20/14 On-Board Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-5098 Screw M4 x 16mm $1.23 4 usually ships 8-21 days
2 183-2702 Screw M4 x 10mm $1.23 6 usually ships 8-21 days
3 183-2665 Washer $1.23 6 usually ships 8-21 days
4 183-9308 Charger support $86.84 1 usually ships 8-21 days
5 183-2627 Screw M5 x 16mm $2.00 4 usually ships 8-21 days
6 183-2431 Grommet $5.58 1 usually ships 8-21 days
7 183-2435 Main socket 10a 250v $4.49 1 usually ships 8-21 days
8 183-2610 Washer $1.23 4 usually ships 8-21 days
9 183-8279 Nut INOX $1.23 4 usually ships 8-21 days
10a 183-4711 Charger cable $21.60 1 usually ships 8-21 days
10b 183-9524 Battery charger with cable $1,000.00 1 (BR 22/14 up to S/N 13001158 and BD 26/14 up to S/N 1300686) usually ships 8-21 days
11 183-9307 Battery charger $1,059.40 1 (BR 22/14 from S/N 13001159 and BD 26/14 from S/N 13000687) usually ships 8-21 days
12 183-8460 Nut $1.23 4 usually ships 13-23 days
13 183-4769 Onboard charger plastic cover $22.15 1 usually ships 8-21 days
14 183-2437 Screw M4 x 14mm $1.23 1 usually ships 8-21 days
15 183-8365 Washer $1.23 3 usually ships 8-21 days
16 183-2438 Washer $1.23 2 usually ships 8-21 days
17 183-2439 Nut $1.23 1 usually ships 8-21 days
18 183-9525 Battery charger assembly $1,308.49 1 (includes 1-17) usually ships 8-21 days
