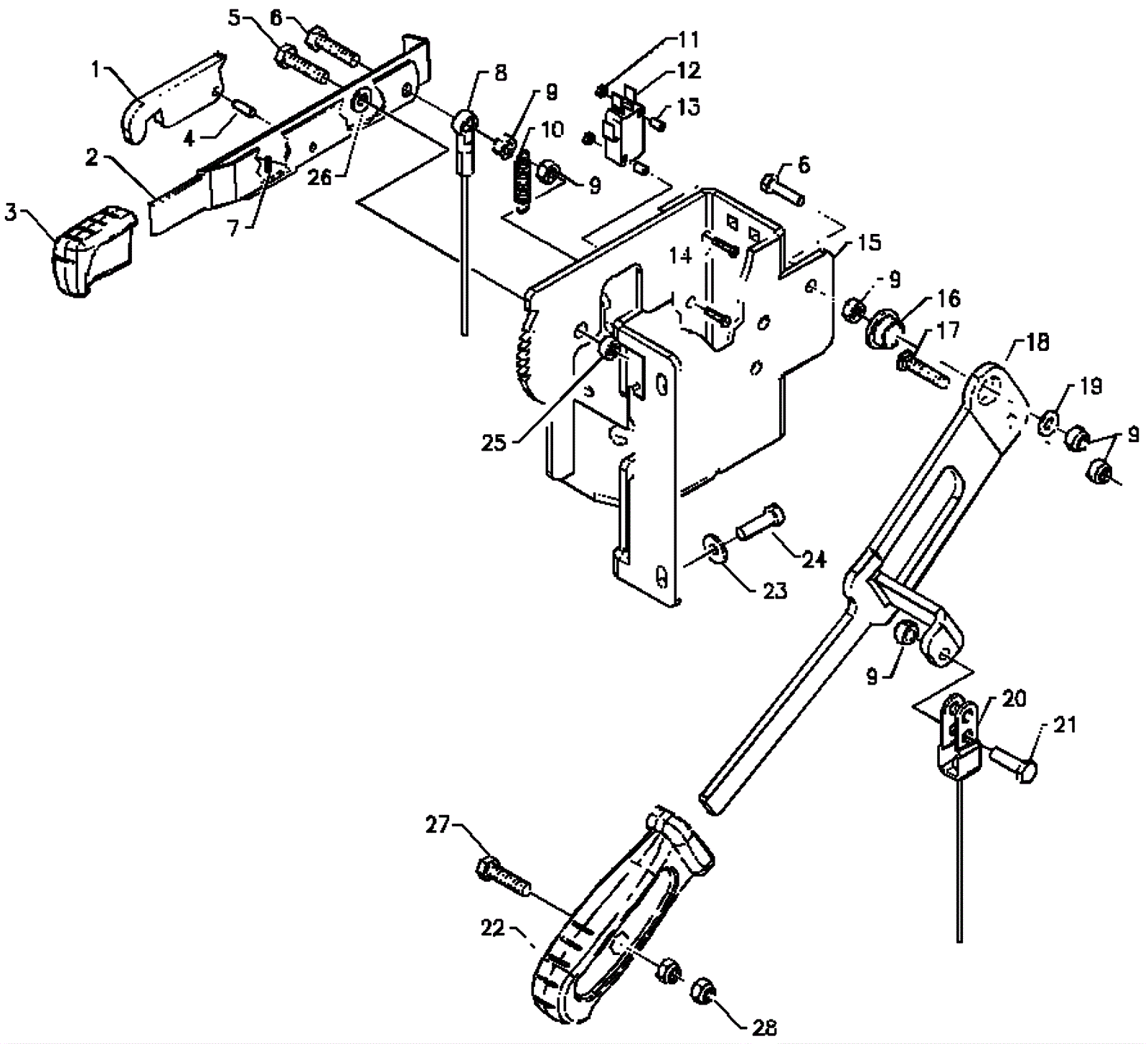

OB 20/14 Control Levers Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-9168 Blocking lever $4.49 1 usually ships 8-21 days
2 183-9517 Break lever $35.88 1 usually ships 8-21 days
3 183-9166 Brake control knob $3.33 1 usually ships 8-21 days
4 183-9169 Parallel pin $1.23 1 usually ships 8-21 days
5 183-2473 Screw M8 x 20mm $1.23 1 usually ships 8-21 days
6 183-8512 Screw M6 x 25 $1.23 2 usually ships 8-21 days
7 183-9167 Compression spring $3.43 1 usually ships 8-21 days
8 183-9518 Break cable $23.45 1 usually ships 8-21 days
9 183-8256 Nut $1.23 6 usually ships 8-21 days
10 183-2633 Traction spring $10.87 1 usually ships 8-21 days
11 183-8357 Nut $1.23 2 usually ships 8-21 days
12 183-9170 10amp microswitch $9.87 1 usually ships 8-21 days
13 183-8211 Spacer $1.23 2 usually ships 8-21 days
14 183-8345 Screw M3 x 25 $1.23 2 usually ships 8-21 days
15 183-9519 Lever support plate $144.28 1 usually ships 8-21 days
16 183-8258 Bushing $8.42 1 usually ships 8-21 days
17 183-8254 Screw M6 x 16 $1.23 1 usually ships 8-21 days
18 183-9520 Squeegee control lever $39.09 1 usually ships 8-21 days
20 183-9021 Rope with eye and fork $33.96 1 usually ships 8-21 days
21 183-8292 Screw M6 x 20 $1.23 1 usually ships 8-21 days
22 183-9340 Squeegee control knob $8.53 1 usually ships 8-21 days
23 183-8537 Washer $1.23 4 usually ships 8-21 days
24 183-8494 Screw M5.2 x 19 (OBSOLETE) Call for price 4 usually ships 8-21 days
26 183-8307 Washer $4.70 1 usually ships 8-21 days
27 183-2429 Screw M4 x 16mm $1.23 1 usually ships 8-21 days
28 183-2439 Nut $1.23 2 usually ships 8-21 days
