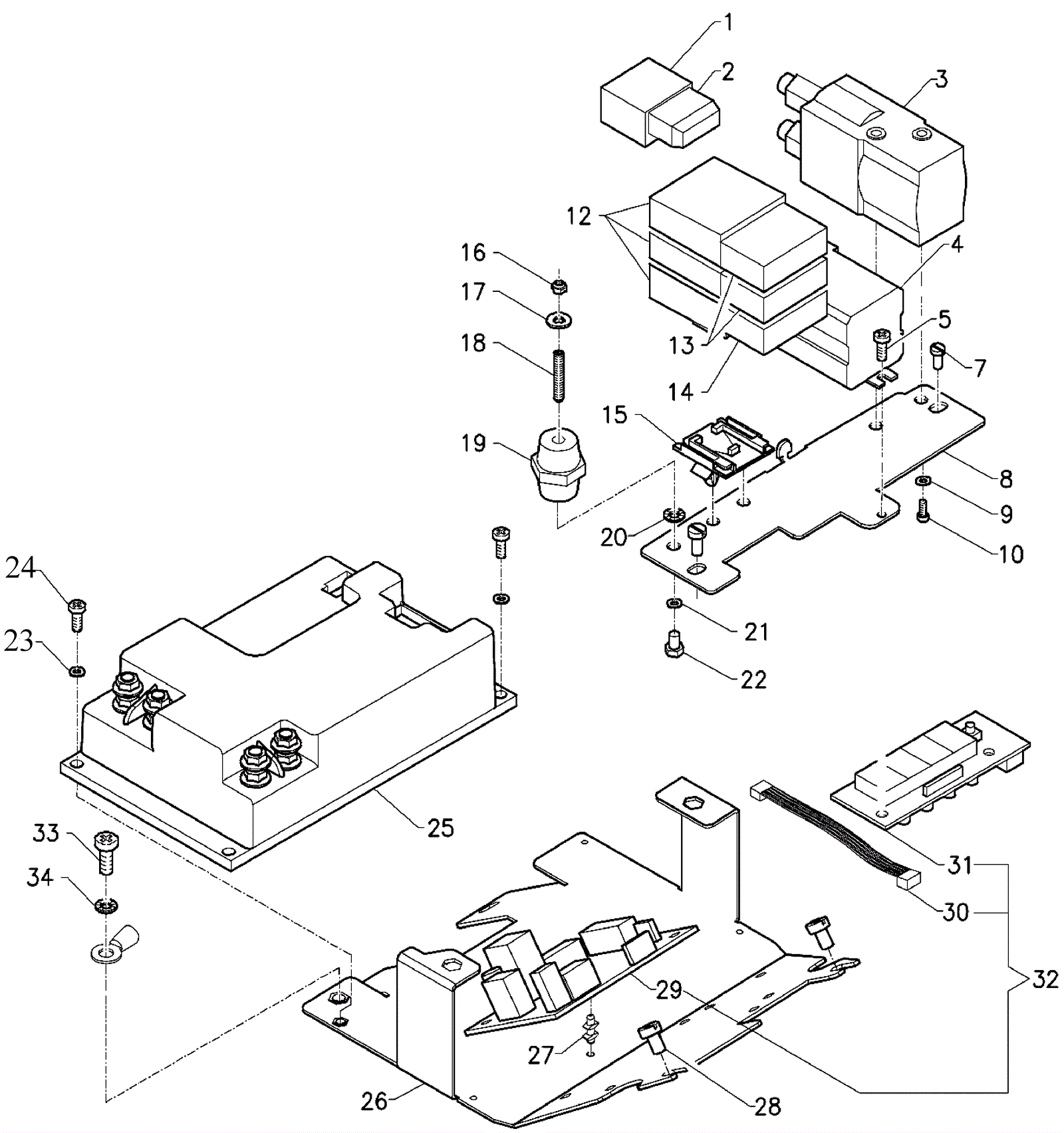

OB 20/14 Electrical Layout Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8370 Fuse holder $4.89 1 usually ships 8-21 days
2 183-8376 3amp Fuse $1.23 1 usually ships 8-21 days
3 183-4698 Switch $130.54 1 usually ships 8-21 days
4 183-4693 Relay $48.39 1 usually ships 8-21 days
5 183-2557 Screw M3 x 6mm $1.23 1 (from S/N 17000170) usually ships 8-21 days
7 183-2430 Screw M5 x 14mm $1.23 2 usually ships 8-21 days
8 183-9514 Components panel $13.07 1 usually ships 8-21 days
9 183-8365 Washer $1.23 2 usually ships 8-21 days
10 183-8364 Screw M4 x 8 $1.39 2 usually ships 8-21 days
12 183-8324 Fuse holder $4.14 3 usually ships 8-21 days
13 183-8377 30amp Fuse $3.79 2 usually ships 8-21 days
14 183-2168 50amp maxifuse $3.91 1 usually ships 8-21 days
15 183-8329 Plate $2.04 1 usually ships 8-21 days
16 183-8314 Nut $1.23 1 usually ships 8-21 days
17 183-8374 Washer $1.23 1 usually ships 8-21 days
18 183-8325 Dowel $1.23 1 usually ships 8-21 days
19 183-8326 Insulator $22.07 1 usually ships 8-21 days
20 183-8327 Washer $1.23 1 usually ships 8-21 days
21 183-8374 Washer $1.23 1 usually ships 8-21 days
22 183-8330 Screw M5 x 8 $1.23 1 usually ships 8-21 days
23 183-8338 Washer $1.23 4 usually ships 8-21 days
24 183-8350 Screw $1.23 4 usually ships 8-21 days
25 183-9515 Chopper card $868.40 1 usually ships 8-21 days
26 183-9516 Insulation panel $52.36 1 usually ships 8-21 days
27 183-8331 Double coupler $1.23 4 usually ships 8-21 days
28 183-8332 Screw M5 x 8 $1.23 4 usually ships 8-21 days
29 183-9022 Battery check card $216.39 1 ships same day
30 183-8359 Display cable $23.69 1 usually ships 8-21 days
31 183-8356 Battery display $37.84 1 usually ships 8-21 days
32 183-9023 Check card control $245.23 1 usually ships 1-5 days
33 183-2430 Screw M5 x 14mm $1.23 1 usually ships 8-21 days
34 183-9267 Lock washer $1.23 1 (includes 29-31) usually ships 8-21 days
