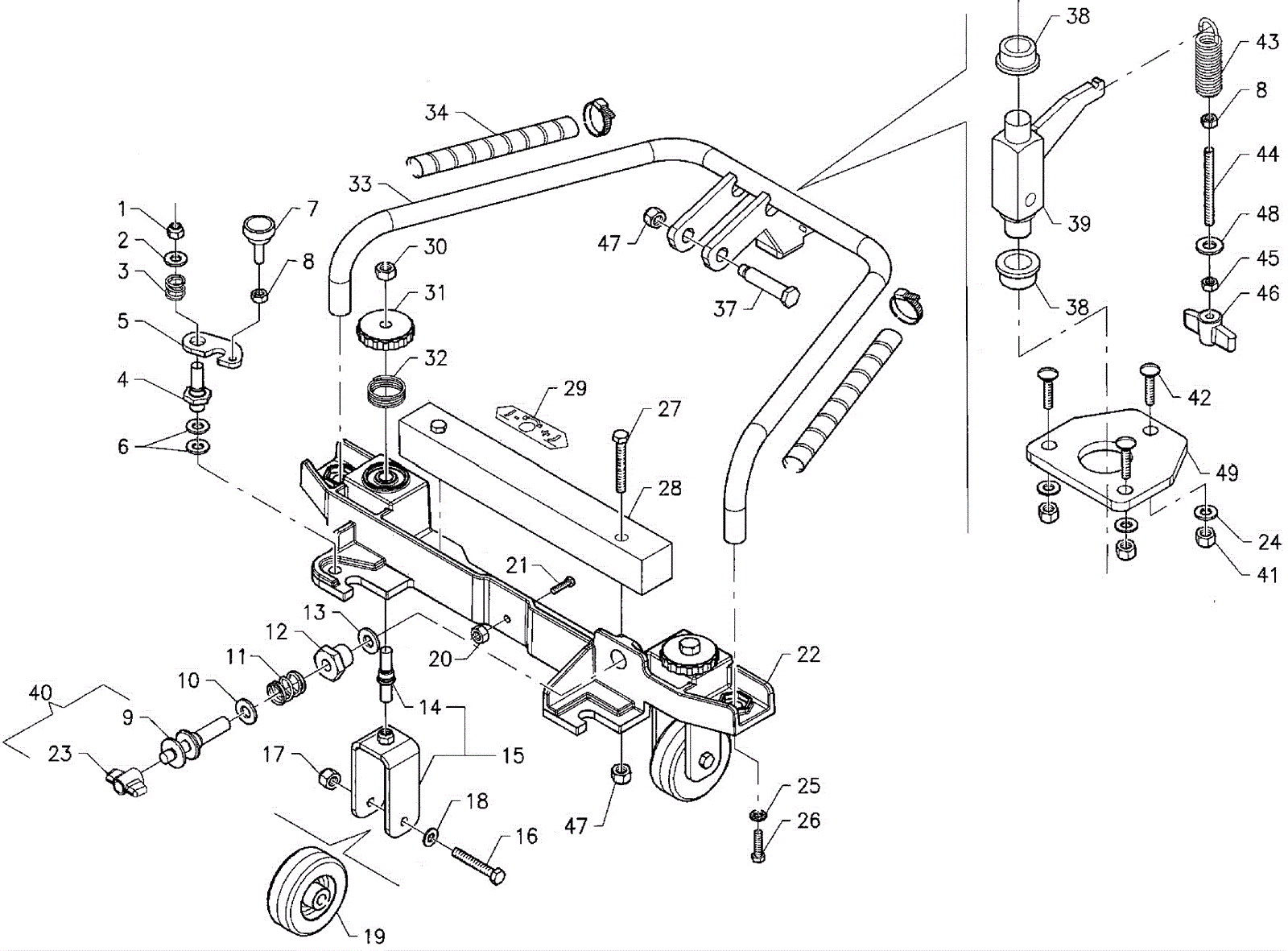

OB 20/14 Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8291 Nut INOX $1.23 1 usually ships 8-21 days
2 183-8260 Washer INOX $1.23 1 usually ships 8-21 days
3 183-8261 Compression spring $5.75 1 usually ships 8-21 days
4 183-8262 Coupler pin $16.12 1 usually ships 8-21 days
5 183-8263 Squeegee coupler $7.04 1 usually ships 8-21 days
6 183-8264 Washer INOX $1.23 2 usually ships 8-21 days
7 183-8265 Handwheel $4.83 1 usually ships 8-21 days
8 183-8266 Nut INOX $1.23 2 usually ships 8-21 days
9 183-8274 Inclination adjuster $42.21 1 usually ships 8-21 days
10 183-8312 Washer $1.23 1 usually ships 8-21 days
11 183-8276 Compression spring $3.81 1 usually ships 8-21 days
12 183-8277 Bushing $19.15 1 usually ships 8-21 days
13 183-8293 Washer INOX $1.23 1 usually ships 8-21 days
14 183-8270 Wheel adjuster screw $17.07 2 usually ships 8-21 days
16 183-8281 Screw M6 x 45 INOX $1.23 2 usually ships 8-21 days
17 183-8271 Nut INOX $1.23 2 usually ships 8-21 days
18 183-8240 Washer INOX $1.23 1 usually ships 8-21 days
19 183-4707 Wheel and bushing (grey) $13.43 2 usually ships 8-21 days
20 183-8279 Nut INOX $1.23 1 usually ships 8-21 days
21 183-8280 Screw M5 x 18 INOX $0.86 1 ships same day
22 183-8272 Squeegee support $50.40 1 ships same day
23 183-8273 Wing nut $3.24 1 usually ships 8-21 days
24 183-2457 Washer INOX $1.23 3 usually ships 8-21 days
25 183-8286 Washer INOX $1.23 3 usually ships 8-21 days
26 183-8289 Screw M8 x 20 INOX $1.23 2 usually ships 8-21 days
27 183-9412 Screw M8 x 45mm INOX $1.73 2 usually ships 8-21 days
28 183-9508 Weight $78.36 1 usually ships 8-21 days
29 183-8287 Height adjustment decal $1.29 1 usually ships 8-21 days
30 183-8267 Nut INOX $1.23 2 usually ships 8-21 days
31 183-8268 Handwheel $5.00 2 usually ships 8-21 days
32 183-8269 Spring $3.29 2 usually ships 8-21 days
33 183-9509 Squeegee arm $147.51 1 usually ships 8-21 days
34 183-9510 Sheath Call for price 2 usually ships 8-21 days
37 183-8284 Pin $14.20 1 usually ships 8-21 days
38 183-9181 Bushing $18.53 2 usually ships 8-21 days
39 183-9511 Arm joint $36.31 1 usually ships 8-21 days
41 183-8229 Nut INOX $1.23 3 usually ships 8-21 days
42 183-3211 Screw M6 x 20mm INOX $1.35 3 usually ships 8-21 days
43 183-2644 Traction spring $10.28 1 usually ships 8-21 days
44 183-9512 Tie rod Call for price 1 usually ships 8-21 days
45 183-8214 Nut $1.23 1 usually ships 8-21 days
46 183-8435 Wing nut $3.95 1 usually ships 8-21 days
47 183-9130 Lock nut $1.23 3 ships same day
49 183-9513 Plate $14.21 1 usually ships 8-21 days
