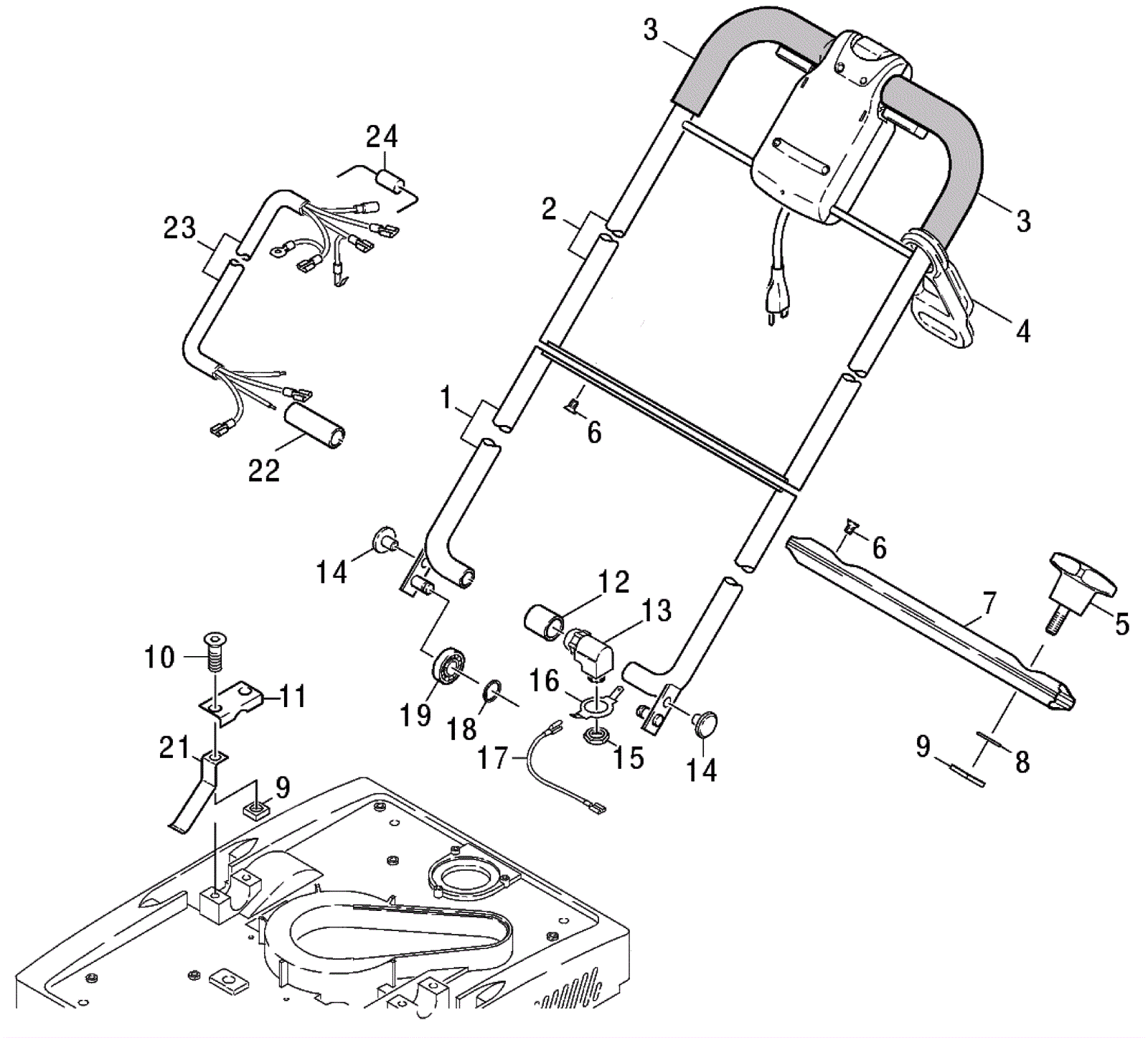

BRVS 400 Handle Assembly (serial number 16790 onward)

#PartDescriptionPriceReqNotesAvailability
1 183-2782 Strap $226.09 1 usually ships 8-21 days
2 183-2783 Strap $257.24 1 usually ships 8-21 days
3 183-2784 Cellular handle $23.56 2 usually ships 8-21 days
4 183-0188 Pull relief $8.89 1 usually ships 8-21 days
5 183-2785 Star handle $7.47 2 usually ships 8-21 days
6 183-2786 Screw flat head (OBSOLETE) $1.30 6 usually ships 8-21 days
7 183-2788 Hinge (OBSOLETE) $32.87 1 usually ships 8-21 days
8 183-0090 Washer lock $1.32 2 usually ships 8-21 days
9 183-0947 Square nut $1.39 6 usually ships 8-21 days
10 999-1985 Screw M8-1.25 x 16mm flat head phillips zinc $0.99 4 usually ships 11-24 days
11 183-0948 Plate $23.63 2 usually ships 1-5 days
12 183-2763 Bush $18.69 2 usually ships 8-21 days
13a 183-2764 Angle cable connector Call for price 1 usually ships 8-21 days
13b 183-2789 Angled cable gland $76.07 1 usually ships 8-21 days
14 183-2790 Bolt $7.67 2 usually ships 8-21 days
15 183-2781 Counternut $2.20 1 usually ships 8-21 days
16 183-2791 Retainer clip $10.47 1 usually ships 8-21 days
17 183-2792 Cable $5.50 1 usually ships 8-21 days
18 183-0196 Washer lock $1.35 2 usually ships 1-5 days
19 183-2765 Ball bearing $17.73 2 usually ships 8-21 days
21 183-0949 Plate spring $9.52 2 usually ships 1-5 days
22 183-2793 Insulating hose $10.47 1 usually ships 8-21 days
23 183-2794 Cable $163.14 1 usually ships 8-21 days
24 183-2795 Diode $4.00 1 usually ships 8-21 days
