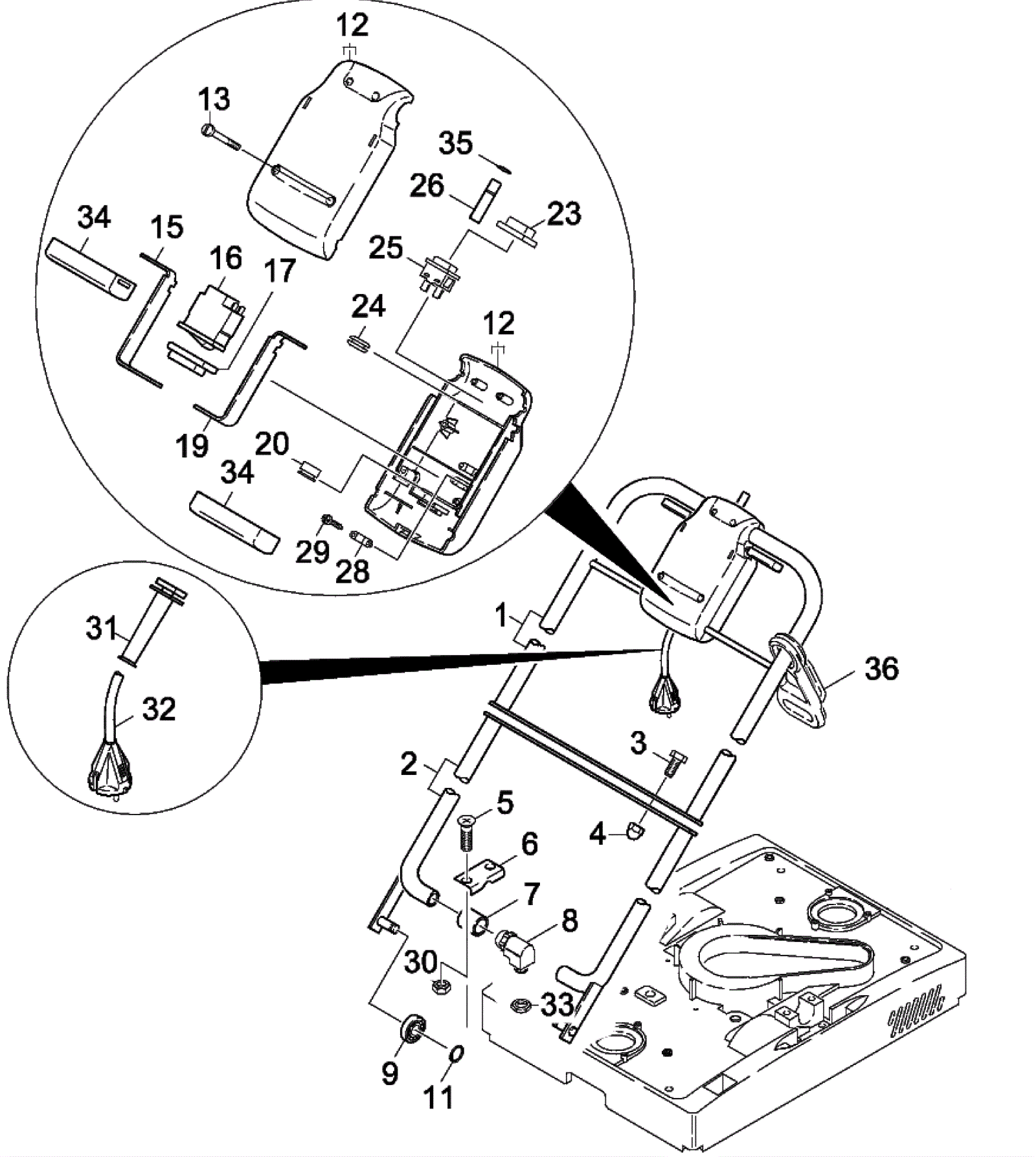

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-2758
|
Strap |
1 |
|
|
2 |
183-2759
|
Strap |
1 |
|
|
3 |
183-2760
|
Screw |
2 |
|
|
4 |
183-2761
|
Cap nut |
2 |
|
|
5 |
999-1985
|
Screw M8-1.25 x 16mm flat head phillips zinc |
4 |
|
|
6 |
183-0948
|
Plate |
2 |
|
|
7 |
183-2763
|
Bush |
2 |
|
|
8 |
183-2764
|
Angle cable connector |
1 |
|
|
9 |
183-2765
|
Ball bearing |
2 |
|
|
11 |
183-0196
|
Washer lock |
2 |
|
|
12 |
183-2766
|
Housing |
1 |
|
|
13 |
183-2767
|
Screw oval head |
4 |
|
|
15 |
183-2768
|
Plate |
1 |
|
|
16 |
183-2769
|
Rocker switch |
1 |
|
|
17 |
183-2770
|
Switch cover |
1 |
|
|
19 |
183-2772
|
Plate |
1 |
|
|
20 |
183-2735
|
Cable gland |
2 |
|
|
23 |
183-2773
|
Cap |
1 |
|
|
24 |
183-2774
|
Rubber bushing |
2 |
|
|
25 |
183-2775
|
Pushbutton |
1 |
|
|
26 |
183-2776
|
Press slide |
1 |
|
|
28 |
183-2777
|
Cable clamp |
2 |
|
|
29 |
183-2778
|
Screw oval head |
4 |
|
|
30 |
183-0947
|
Square nut |
4 |
|
|
31 |
183-2779
|
Protection |
1 |
|
|
32 |
183-2780
|
Cable |
1 |
|
|
33 |
183-2781
|
Counternut |
1 |
|
|
34 |
183-0460
|
Handle |
2 |
|
|
35 |
183-2707
|
Lock washer (OBSOLETE) |
1 |
|
|
36 |
183-0188
|
Pull relief |
1 |
|
|
