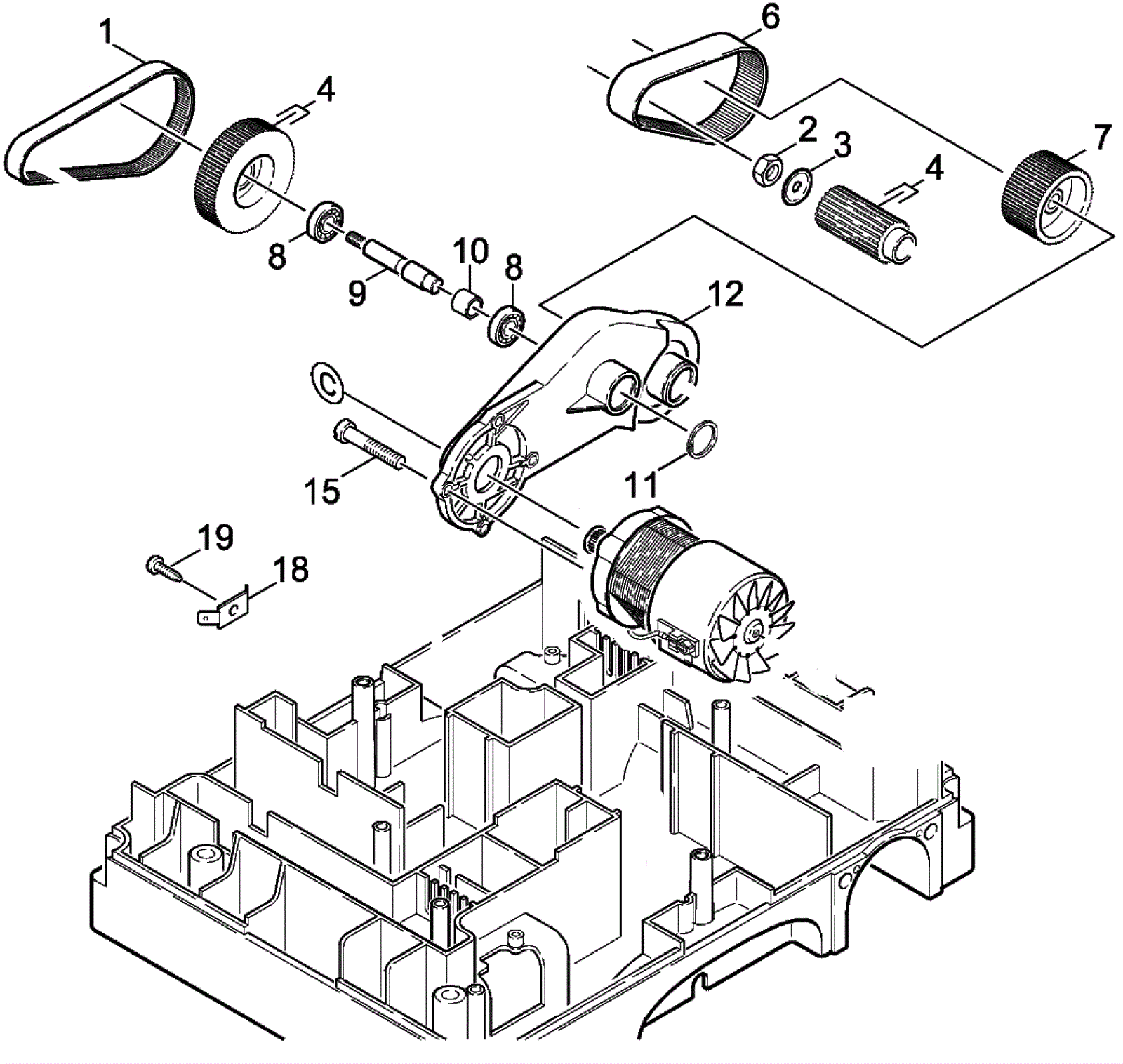

BRVS 400 Gearing Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2748 Toothed belt $24.60 2 usually ships 8-21 days
2 183-0405 Hex nut $1.80 2 usually ships 1-5 days
3 183-2749 Washer Call for price 2 usually ships 8-21 days
4 183-2750 Pulleys Call for price 2 usually ships 8-21 days
6 183-2751 Toothed belt (OBSOLETE) $43.98 2 usually ships 8-21 days
7 183-2752 Pulley Call for price 2 usually ships 8-21 days
8 183-0375 Ball bearing $5.21 4 usually ships 8-21 days
9 183-2753 Shaft Call for price 2 usually ships 8-21 days
10 183-2754 Sleeve Call for price 1 usually ships 8-21 days
11 183-0373 Safety ring $5.50 2 usually ships 1-5 days
12 183-2755 Housing $156.73 2 usually ships 8-21 days
15 183-2756 Screw sheet metal Call for price 8 usually ships 8-21 days
18 183-2757 Plug Call for price 1 usually ships 8-21 days
19 183-2722 Screw Call for price 4 usually ships 8-21 days
