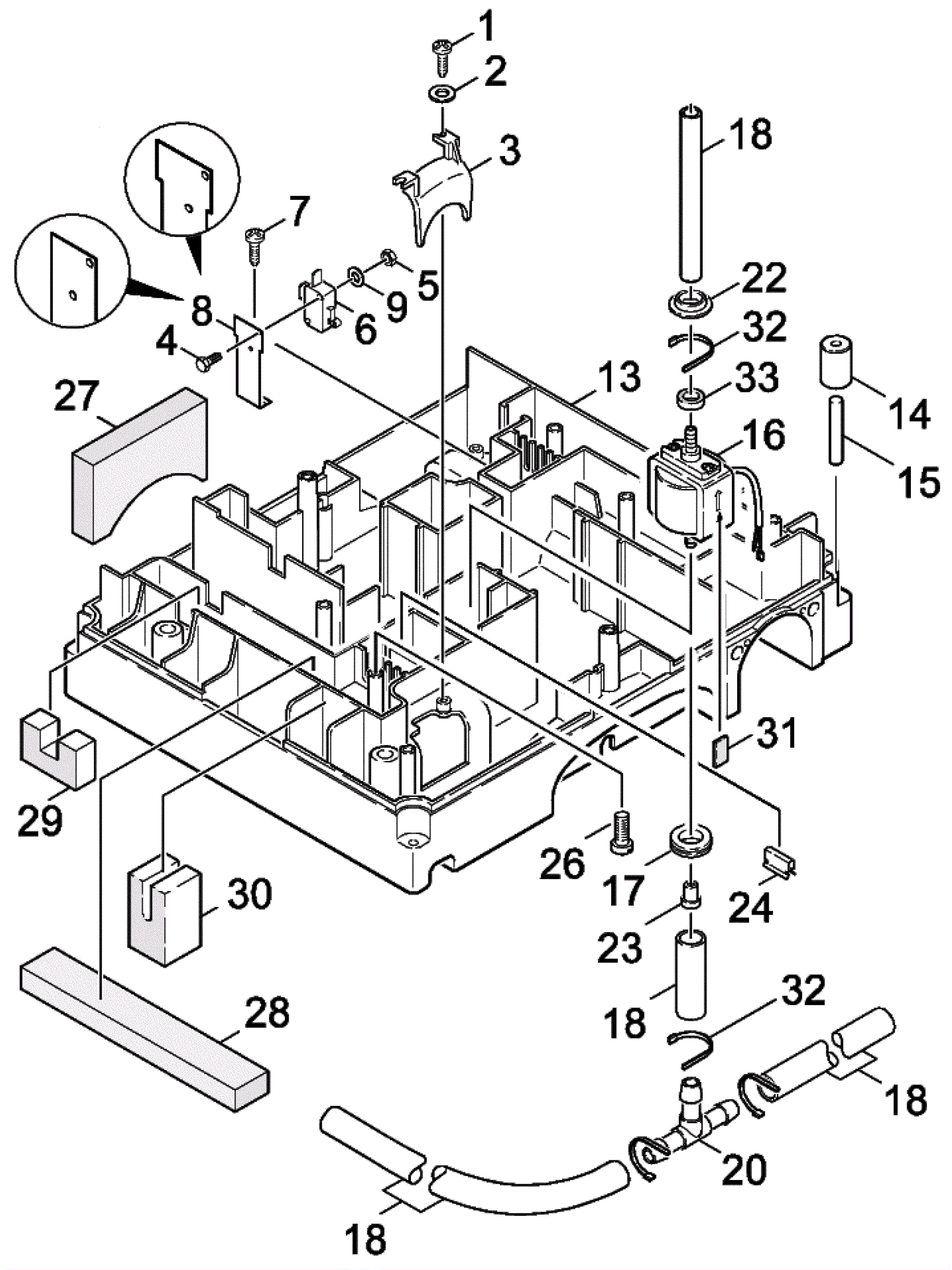

BRVS 400 Bottom Unit Piece Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-0281 Screw $1.35 4 usually ships 8-21 days
2 183-2723 Washer Call for price 4 usually ships 8-21 days
3 183-2724 Cover Call for price 2 usually ships 8-21 days
4 183-2725 Screw cheese head Call for price 2 usually ships 8-21 days
5 183-2726 Nut hex head Call for price 2 usually ships 8-21 days
6a 183-2727 Micro switch $28.06 1 usually ships 8-21 days
6b 183-2728 Micro switch Call for price 1 usually ships 8-21 days
7 183-2729 Screw M4.2 x 13mm Call for price 1 usually ships 8-21 days
8 183-2730 Bracket Call for price 1 usually ships 8-21 days
9 183-2731 Washer Call for price 1 usually ships 8-21 days
13a 183-2732 Motor housing $560.23 1 usually ships 8-21 days
13b 183-9599 Housing Call for price 1 usually ships 8-21 days
14 183-2733 Roller $19.73 4 usually ships 8-21 days
15 183-2734 Straight pin $3.80 4 usually ships 8-21 days
16 183-0928 Pump $242.50 1 usually ships 8-21 days
17 183-2735 Cable gland $3.48 1 usually ships 8-21 days
18 183-2736 Hose $9.65 1 usually ships 8-21 days
20 183-2737 T rubber bushing $43.24 1 usually ships 8-21 days
22 183-2738 Joint ring $5.50 1 usually ships 8-21 days
23 183-2739 Screen $8.73 1 usually ships 8-21 days
24 183-2740 U bracket $1.53 2 usually ships 8-21 days
26 183-2741 Screw cheese head $2.99 9 usually ships 8-21 days
27 183-2742 Insulating plate $4.74 2 usually ships 8-21 days
28 183-2743 Insulating plate $4.83 2 usually ships 8-21 days
29 183-2744 Insulating plate $3.05 2 usually ships 8-21 days
30 183-2745 Insulating mat $7.12 2 usually ships 8-21 days
31 183-2746 Tesamoll 19 x 3 $5.90 1 usually ships 8-21 days
32 183-0144 Cable tie (Obsolete) $3.45 2 usually ships 1-5 days
33 183-2747 Joint ring $5.02 1 usually ships 8-21 days
