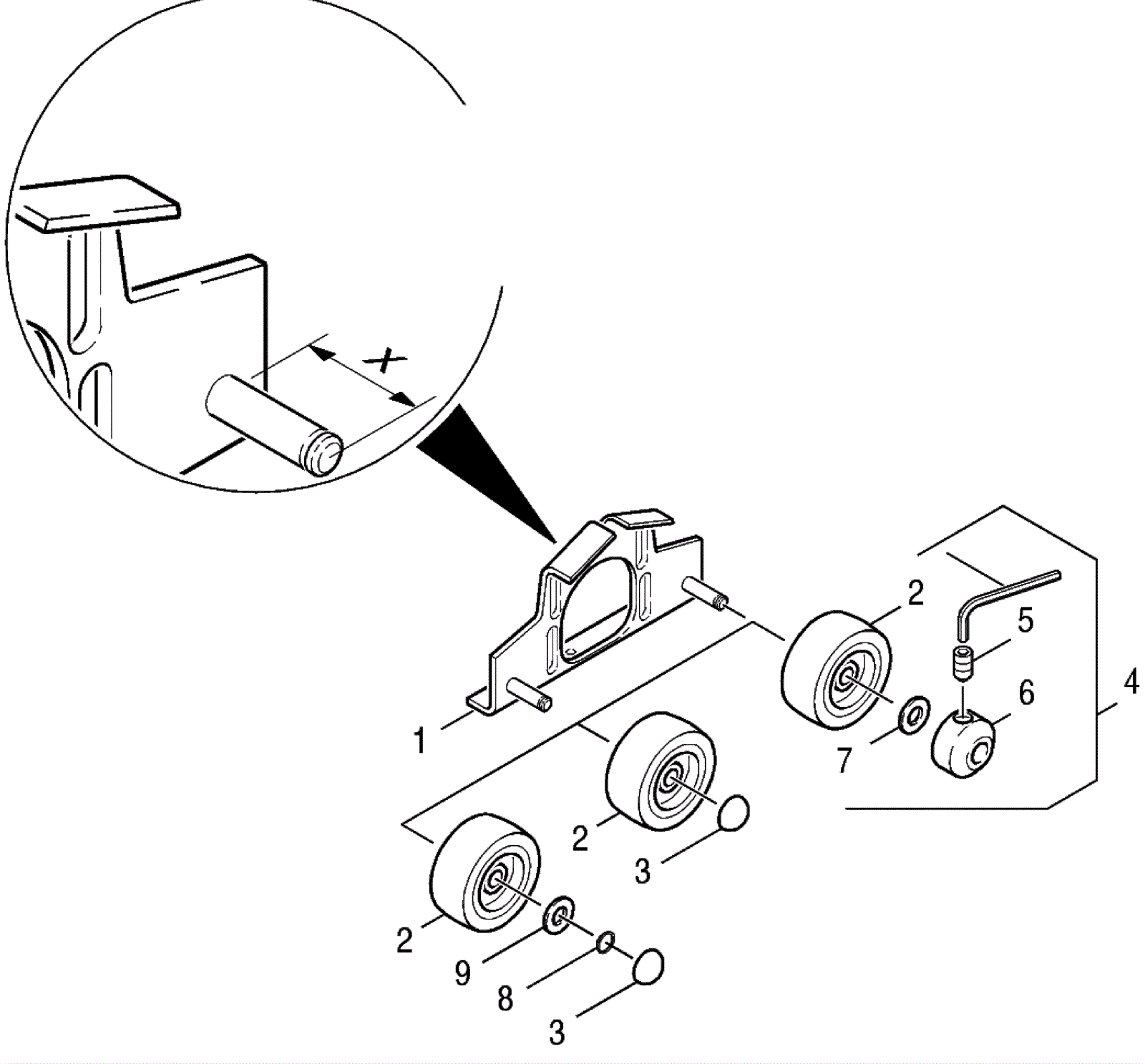

BRVS 400 Bottom Unit Height Adjustment 2 Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2847 Bracket (OBSOLETE) Call for price 2 usually ships 8-21 days
2a 183-2848 Wheel $31.14 4 usually ships 8-21 days
2b 183-2849 Wheel (OBSOLETE) $9.80 4 usually ships 8-21 days
2c 183-2041 Wheel $8.11 4 usually ships 8-21 days
3 183-0197 Wheel cap $2.67 4 usually ships 8-21 days
4 183-2850 Conversion kit Call for price 1 (includes 2 and 5-7) usually ships 8-21 days
5 183-2851 Threaded pin Call for price 4 usually ships 8-21 days
6 183-2852 Set collar Call for price 4 usually ships 8-21 days
7 183-0099 Washer $1.35 4 usually ships 1-5 days
8 183-2853 Spring clip $1.42 4 usually ships 8-21 days
9 183-2854 Joint ring $1.35 4 usually ships 8-21 days
