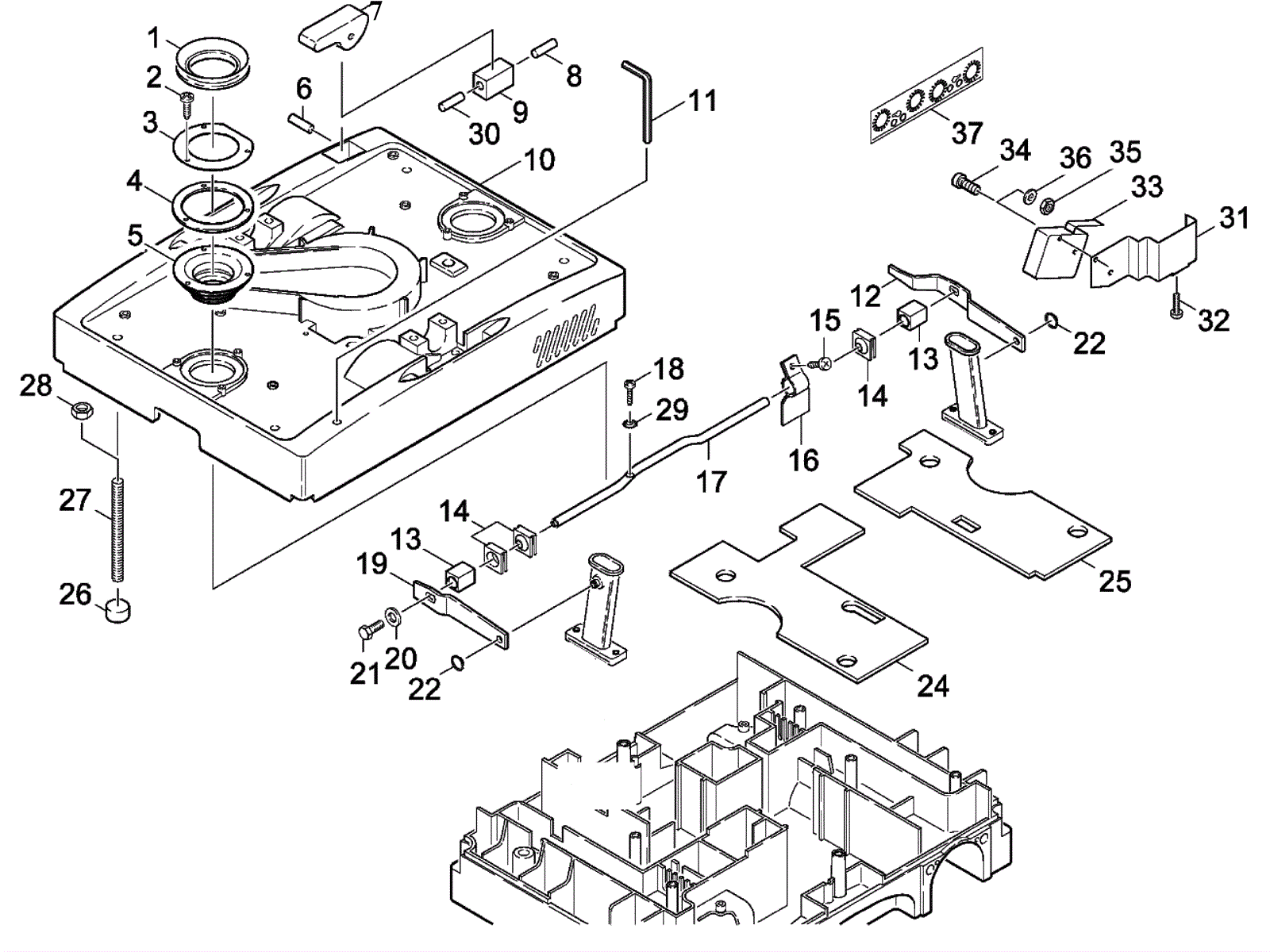

BRVS 400 Top Unit Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 183-2822 Joint ring $8.14 2 usually ships 8-21 days
2 183-2799 Screw M3.5 x 12mm $1.72 6 usually ships 8-21 days
3 183-2823 Washer $9.15 2 usually ships 8-21 days
4 183-2824 Joint ring $5.50 2 usually ships 8-21 days
5 183-2825 Bellows $20.75 2 usually ships 8-21 days
6 183-2826 Straight pin $1.95 1 usually ships 8-21 days
7 183-2827 Eccentric $12.90 1 usually ships 8-21 days
8 183-2828 Straight pin $1.30 1 usually ships 8-21 days
9 183-2829 Calipers $9.00 1 usually ships 8-21 days
10 183-4608 Top cover $292.44 1 usually ships 1-5 days
11 183-2830 Screw driver Call for price 1 usually ships 8-21 days
12 183-2831 Lever $41.36 1 usually ships 8-21 days
13 183-2832 Bearing block Call for price 2 usually ships 8-21 days
14 183-2833 Seal Call for price 3 usually ships 8-21 days
15 183-2834 Sheet metal screw Call for price 1 usually ships 8-21 days
16 183-2835 Clamp Call for price 1 usually ships 8-21 days
17 183-2836 Shaft Call for price 1 usually ships 8-21 days
18 183-2722 Screw Call for price 1 usually ships 8-21 days
19 183-2838 Lever $38.12 1 usually ships 8-21 days
20 183-0379 Washer $1.35 2 usually ships 1-5 days
21 183-0206 Screw $1.30 2 usually ships 1-5 days
22 183-0196 Washer lock $1.35 2 usually ships 1-5 days
24 183-2837 Plate $13.35 1 usually ships 8-21 days
25 183-2839 Plate Call for price 1 usually ships 8-21 days
26 183-2813 Washer $6.26 4 usually ships 8-21 days
27 183-2840 Threaded pin $4.96 4 usually ships 8-21 days
28 183-0079 Hex nut $1.35 4 usually ships 1-5 days
29 183-2841 Serrated lock washer Call for price 1 usually ships 8-21 days
30 183-2842 Grooved pin $1.98 1 usually ships 8-21 days
31 183-2843 Bracket Call for price 1 usually ships 8-21 days
32 183-2844 Screw Call for price 1 usually ships 8-21 days
33 183-2845 Micro switch $63.32 1 usually ships 8-21 days
34 183-2725 Screw cheese head Call for price 2 usually ships 8-21 days
35 183-2726 Nut hex head Call for price 2 usually ships 8-21 days
36 183-2731 Washer Call for price 2 usually ships 8-21 days
37 183-2846 Decal Call for price 1 usually ships 8-21 days
