BRVS 400

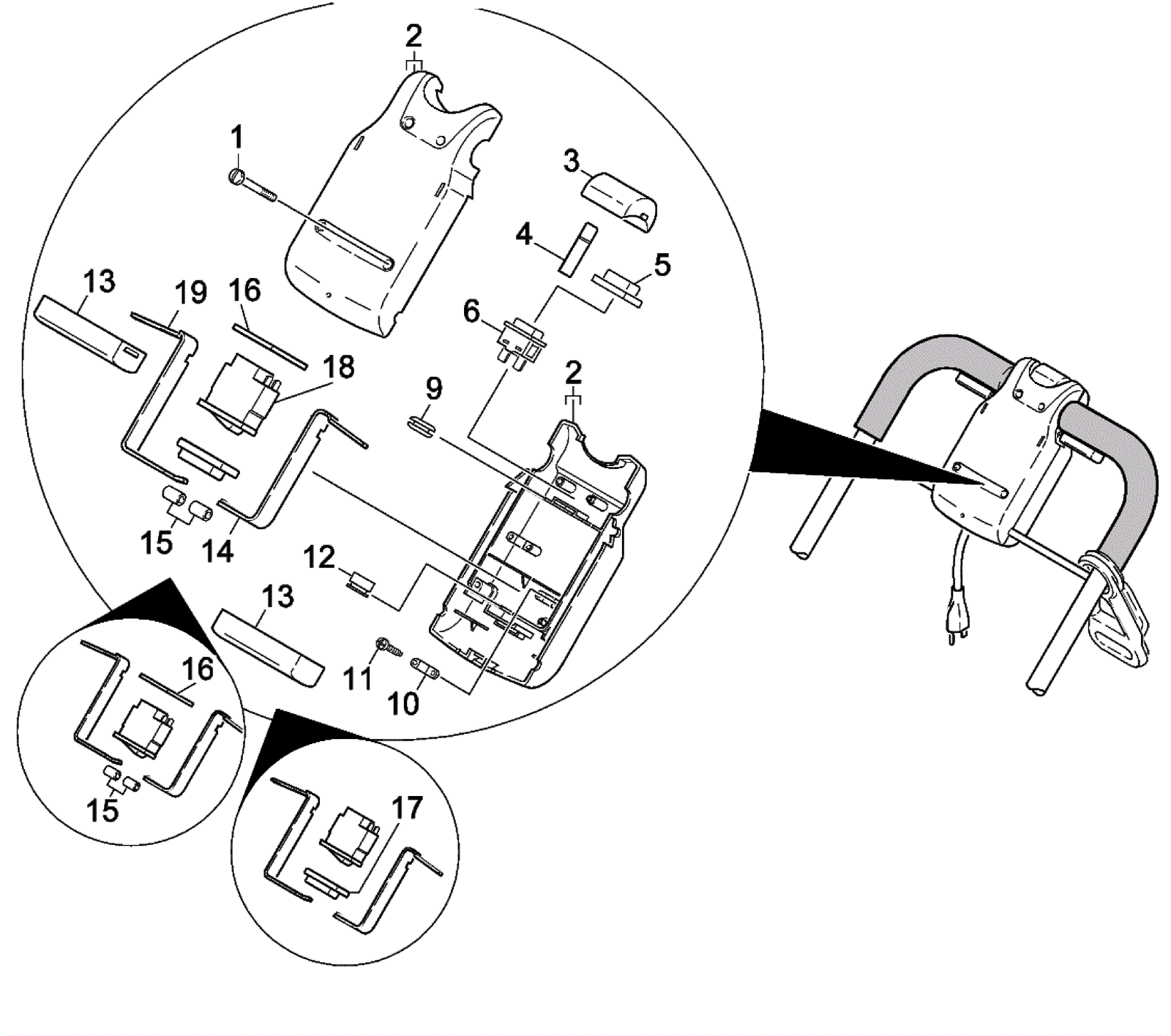

Handle Switch Box Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1a
183-2767
Screw oval head
$1.18
4
usually ships 9-20 days
1b
183-2796
Screw oval head
$1.23
4
usually ships 9-20 days
2
183-2766
Housing
Call for price
2
usually ships 9-20 days
3
183-2797
Calipers
$6.53
1
usually ships 9-20 days
4
183-2798
Grooved pin
$3.68
1
usually ships 9-20 days
5
183-2773
Cap
$2.76
1
usually ships 9-20 days
6
183-2775
Pushbutton
$7.78
1
usually ships 9-20 days
9
183-2774
Rubber bushing
$3.54
2
usually ships 9-20 days
10
183-2777
Cable clamp
$5.00
2
usually ships 9-20 days
11
183-2799
Screw M3.5 x 12mm
$1.56
4
usually ships 9-20 days
12
183-2735
Cable gland
$3.16
2
usually ships 9-20 days
13
183-0460
Handle
$6.62
2
usually ships 9-20 days
14
183-2772
Plate
$30.49
1
usually ships 9-20 days
15
183-2800
Hose
$1.23
2
usually ships 9-20 days
16
183-2771
Frame
$2.70
1
usually ships 9-20 days
17
183-2770
Switch cover
Call for price
1
usually ships 9-20 days
18
183-2769
Rocker switch
$58.88
1
usually ships 9-20 days
19
183-2768
Plate
$21.53
1
usually ships 9-20 days
N/S
183-2779
Protection
$5.00
1
usually ships 9-20 days
N/S
183-2780
Cable
$73.68
1
usually ships 9-20 days
