CV 48

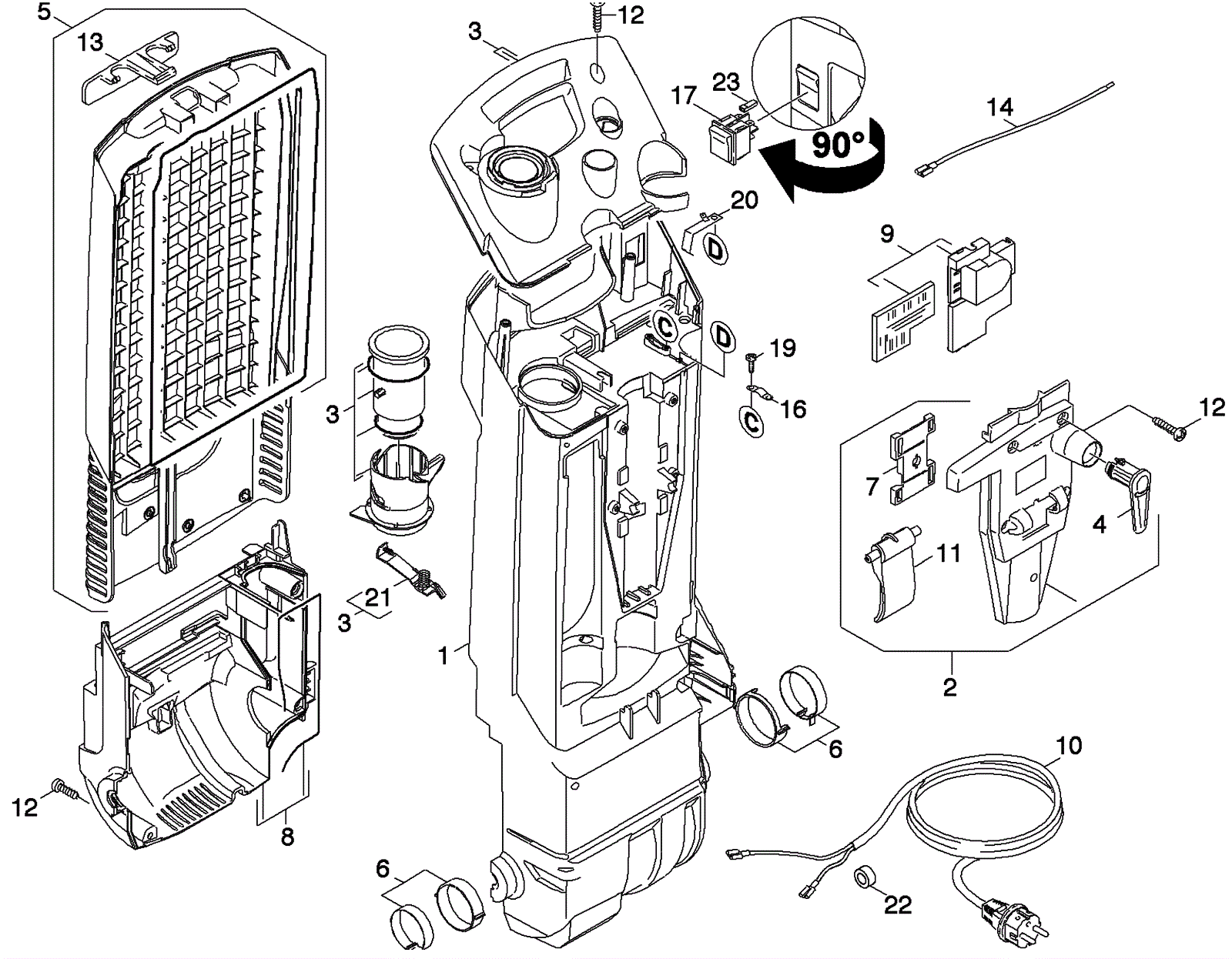

Appliance Top Parts Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-8123
Housing
$133.40
1
usually ships 9-20 days
2
183-8124
Back cover assembly
$32.47
1
(includes 4,7,11-12)
usually ships 1-5 days
3a
183-8125
Top cover
$57.08
1
ships same day
3b
183-4780
Lever and tube assembly
$5.00
1
(includes 21)
usually ships 9-20 days
4
183-2129
Lower cord catch
$6.01
1
usually ships 9-20 days
5a
183-3259
Front cover complete
Call for price
1
(includes 13)
usually ships 9-20 days
5b
183-9431
Front cover (yellow)
$114.51
1
usually ships 9-20 days
5c
183-9432
CV front cover (black)
$76.53
1
usually ships 9-20 days
6
183-9433
Bearing shell
$25.62
1
usually ships 9-20 days
7
183-8127
Clamp
$5.13
1
usually ships 9-20 days
8
183-8128
Motor cover
$28.24
1
usually ships 1-5 days
9
183-8129
Circuit board
$95.52
1
usually ships 9-20 days
10
183-9014
40 foot power cord
$52.00
1
ships same day
11
183-8130
Lever
$5.46
1
usually ships 1-5 days
12
183-8116
Screw 5 x 20
$0.90
9
usually ships 9-20 days
13
183-8131
Cover lock
$3.95
1
usually ships 9-20 days
14
183-3260
Electrical small parts
Call for price
1
usually ships 9-20 days
16
183-2085
Clamp clip
$4.37
1
ships same day
17a
183-2526
Rocker switch
$9.72
1
usually ships 9-20 days
17b
183-2526
Rocker switch
$9.72
1
usually ships 9-20 days
19
183-0923
Screw 3.5 x 12
$1.23
2
usually ships 9-20 days
20
183-8134
Spring
$13.64
1
usually ships 9-20 days
21
183-9435
Spring connection
$10.11
1
usually ships 9-20 days
22
183-9436
Ring
$9.78
1
usually ships 9-20 days
23
183-0146
Insulating house
$1.23
2
usually ships 1-5 days
