CV 48

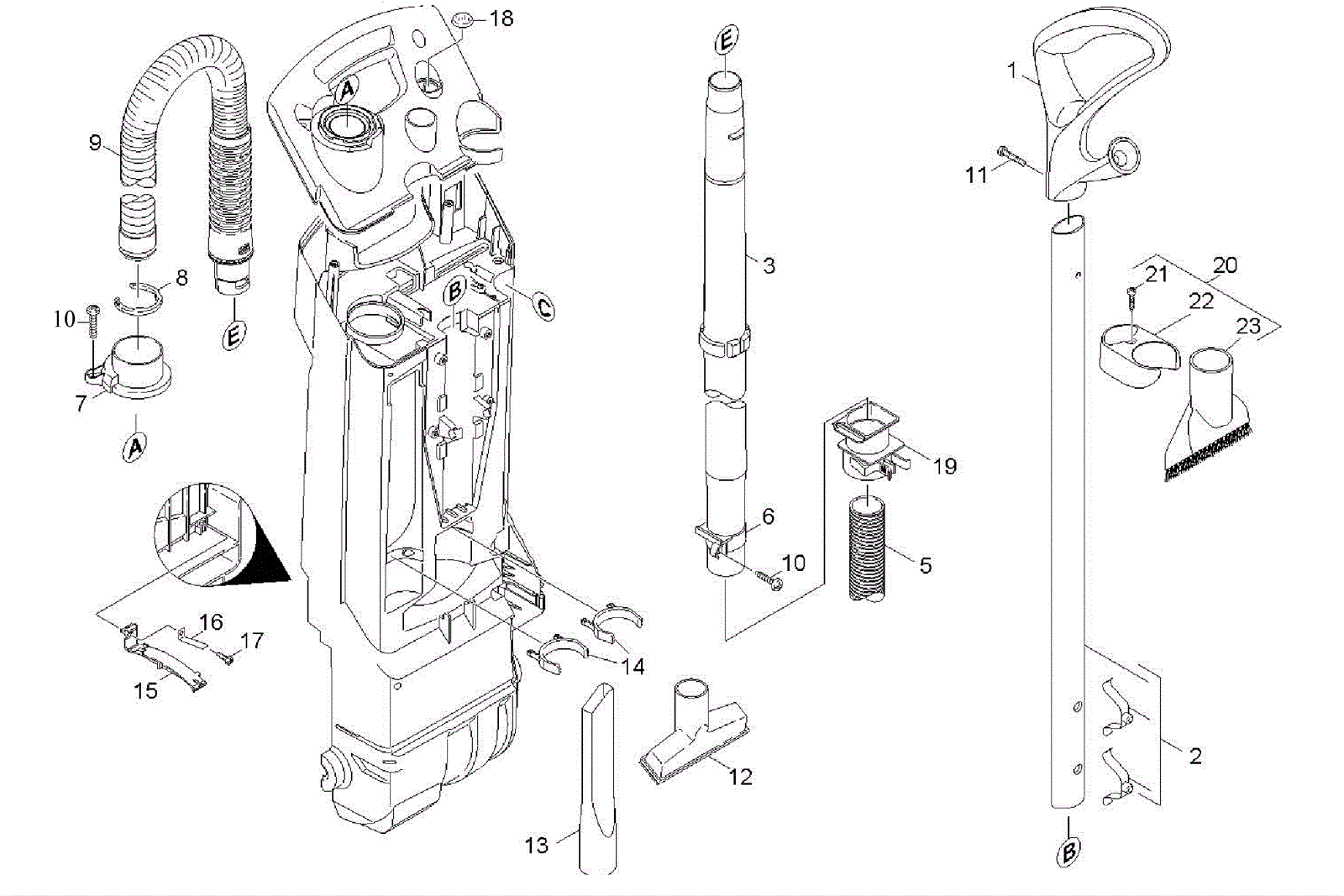

Piece Parts Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-8112
Handle
$30.76
1
usually ships 9-20 days
2
183-8113
Handle bracket
$50.23
1
usually ships 9-20 days
3
183-7666
Wand
$40.30
1
usually ships 9-20 days
5
183-8114
Suction hose
$34.84
1
usually ships 9-20 days
6
183-7415
Suction tube ring
$4.18
1
usually ships 9-20 days
7
183-7549
Connection piece
$4.83
1
ships same day
8
183-8115
Retaining ring
$2.37
1
ships same day
9
183-7414
Suction tube with sleeve
$51.20
1
ships same day
10
183-8116
Screw 5 x 20
$0.90
2
usually ships 9-20 days
11
183-8117
Screw 5 x 40
$1.23
1
usually ships 9-20 days
12
183-8118
Upholstery nozzle
$10.12
1
ships same day
13
173-5755
Crevice nozzle
$6.20
1
ships same day
14
183-8119
Clip
$4.60
2
usually ships 9-20 days
15
183-8120
Bracket
$4.47
1
usually ships 1-5 days
16
183-8121
Spring
$1.41
1
usually ships 1-5 days
17
183-9428
Screw M4 x 12mm
$1.23
1
usually ships 9-20 days
18
183-2092
Lens
$4.41
1
usually ships 1-5 days
19
183-9429
Wand sleeve
$7.85
1
usually ships 9-20 days
20
183-9430
Accessory clamp kit
$30.87
1
(includes 21-23)
usually ships 9-20 days
21
183-2889
Screw M5 x 20mm
$1.23
1
usually ships 9-20 days
22
183-3257
Clamp
Call for price
1
usually ships 9-20 days
23
183-3258
Suction brush
$14.21
1
usually ships 9-20 days
