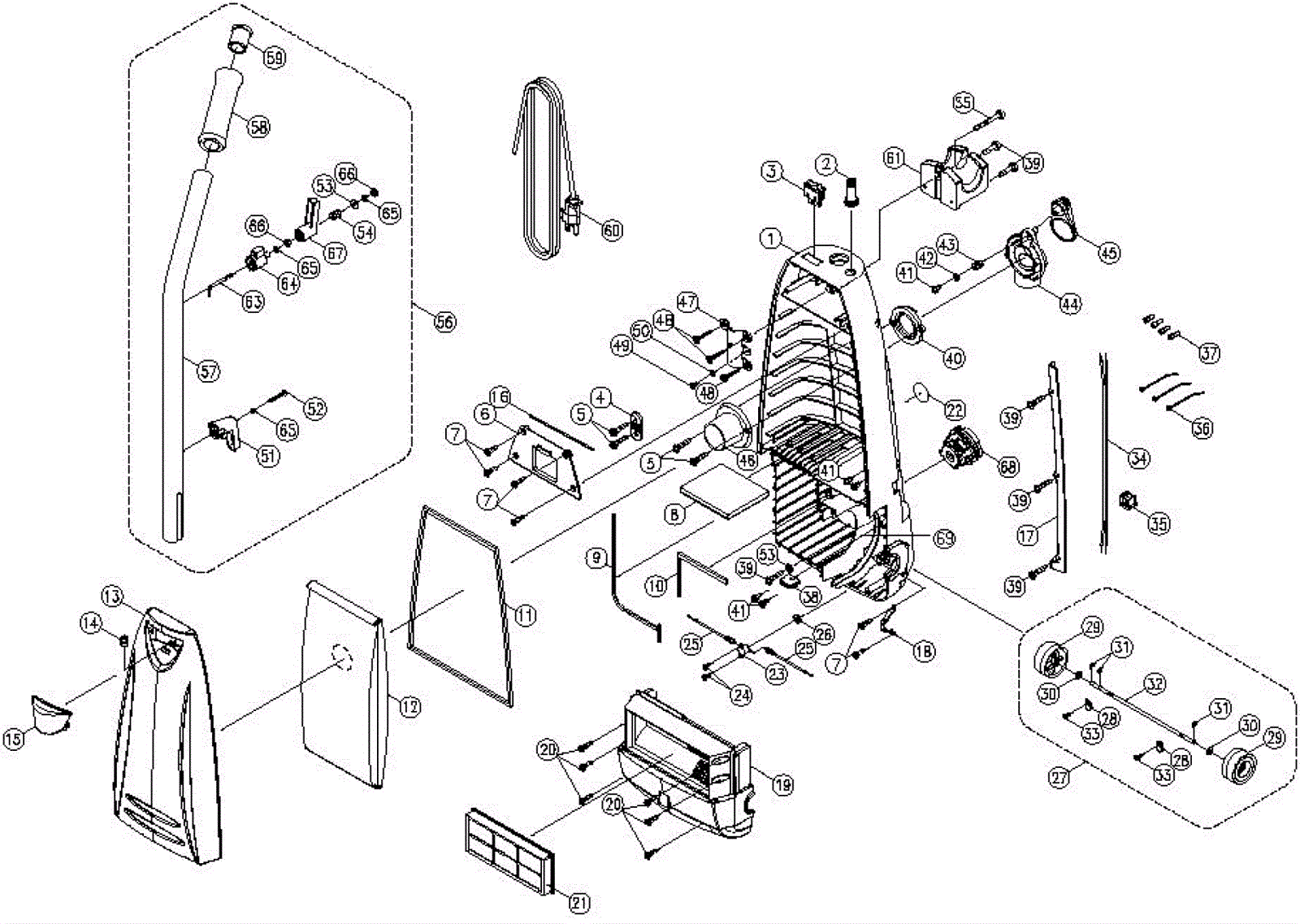

CK 14/1 Upper Housing Assembly - Standard

#PartDescriptionPriceReqNotesAvailability
1 190-0328 Dust compartment Call for price 1 usually ships 1-5 days
2 183-9070 Cord strain relief $1.25 1 usually ships 15-28 days
3 190-0329 Switch $2.33 1 usually ships 1-5 days
4 190-0330 Cord holder $1.30 1 usually ships 1-5 days
5 190-0298 Screw M4 x 15 set $1.30 4 usually ships 1-5 days
6 190-0331 Switch cover $4.27 1 usually ships 1-5 days
7 190-0114 Screw $1.30 6 usually ships 1-5 days
8 190-0115 Secondary filter $1.41 1 ships same day
9 190-0333 Motor cover seal Call for price 1 usually ships 1-5 days
10 190-0334 Motor cover seal Call for price 1 usually ships 1-5 days
11 190-0335 Dust compartment seal Call for price 1 usually ships 1-5 days
12 190-0280 Paper bag (pkg of 12) $20.61 1 usually ships 14-19 days
13 190-0338 Dust cover $52.48 1 usually ships 14-19 days
14 190-0339 Latch spring (OBSOLETE) $1.30 1 usually ships 14-19 days
15 190-0340 Cover release handle (OBSOLETE) Call for price 1 usually ships 14-19 days
16 190-0341 Switch cover seal Call for price 1 usually ships 1-5 days
17 190-0123 Motor cord holder plate $1.96 1 usually ships 1-5 days
18 190-0342 Support strap Call for price 1 usually ships 1-5 days
19 190-0343 Motor cover Call for price 1 usually ships 1-5 days
20 190-9686 Screw #8-18 x 5/8 $1.30 6 usually ships 15-28 days
21 190-0344 Plastic frame (OBSOLETE) $9.66 1 usually ships 15-28 days
22 190-0345 Warning decal Call for price 1 usually ships 1-5 days
23 190-0128 Thermal reset switch $9.89 1 usually ships 15-28 days
24 190-0347 Screw M3 x 10mm set Call for price 2 usually ships 1-5 days
25 190-0348 Temperature wire Call for price 2 usually ships 1-5 days
26 190-0130 Thermal switch seal $1.30 1 usually ships 14-19 days
27 190-0349 Rear wheel assembly $18.84 1 (includes 28-33) usually ships 14-19 days
28 190-0132 Set washer for axle $1.30 2 usually ships 14-19 days
29 190-0133 Rear wheel $4.44 2 usually ships 14-19 days
30 190-0351 Washer Call for price 2 usually ships 1-5 days
31 190-0352 E ring Call for price 4 usually ships 1-5 days
32 190-0353 Rear wheel shaft Call for price 1 usually ships 1-5 days
33 190-0354 Screw M4 x 8mm set Call for price 2 usually ships 1-5 days
34 190-0355 Motor cord $5.50 1 usually ships 1-5 days
35 190-0356 Wire bushing Call for price 1 usually ships 1-5 days
36 190-0357 Zip tie Call for price 3 usually ships 1-5 days
37 190-0358 Wire connector Call for price 4 usually ships 1-5 days
38 190-0359 Cord holder $1.30 1 usually ships 1-5 days
39 190-0201 Screw for handle release spring $1.35 6 usually ships 1-5 days
40 190-0360 Gasket Call for price 1 usually ships 1-5 days
41 190-0361 Screw M5 x 12mm set Call for price 3 usually ships 1-5 days
42 190-0362 Washer Call for price 1 usually ships 1-5 days
43 190-0363 Suction spring $1.34 1 usually ships 1-5 days
44 190-0364 Suction inlet $3.06 1 usually ships 1-5 days
45 190-0365 Bag adapter $13.84 1 usually ships 14-19 days
46 190-0146 Bag inlet $1.56 1 usually ships 1-5 days
47 183-1553 Handle clamp Call for price 1 usually ships 15-28 days
48 190-0366 Screw M4 x 16mm set Call for price 3 usually ships 1-5 days
49 190-0326 Screw M4 x 6 set Call for price 1 usually ships 1-5 days
50 190-0367 Washer Call for price 1 usually ships 1-5 days
51 190-0368 Lower cord hook $4.88 1 usually ships 14-19 days
52 190-0370 Screw M4 x 25mm set Call for price 1 usually ships 1-5 days
53 190-0297 Washer $0.99 1 usually ships 1-5 days
54 190-0371 Cord hook spring $1.30 1 usually ships 1-5 days
55 190-9952 Screw $1.30 1 usually ships 14-19 days
56 190-0149 Handle assembly $60.49 1 (includes 51-54, 57-59, 63-67 ships same day
57 190-0373 Handle tube (OBSOLETE) Call for price 1 usually ships 1-5 days
58 190-0471 Rubber handle grip $3.96 1 (this handle grip used to be foam but is now rubber) ships same day
59 190-0375 Handle end cap $1.54 1 usually ships 1-5 days
60 190-0158 Power cord 50' 18/3 yellow $80.29 1 ships same day
61 183-9072 Hose hanger bracket $2.79 1 usually ships 15-28 days
63 190-0378 Screw $1.30 1 usually ships 1-5 days
64 190-1327 Cord holder $1.30 1 ships same day
65 190-0380 Washer $1.35 3 usually ships 1-5 days
66 190-0381 Nut Call for price 2 usually ships 1-5 days
67 190-0382 Upper cord hook $1.87 1 usually ships 1-5 days
68 190-0383 Bypass assembly $5.02 1 usually ships 1-5 days
69 190-0384 Relief valve Call for price 1 usually ships 1-5 days
