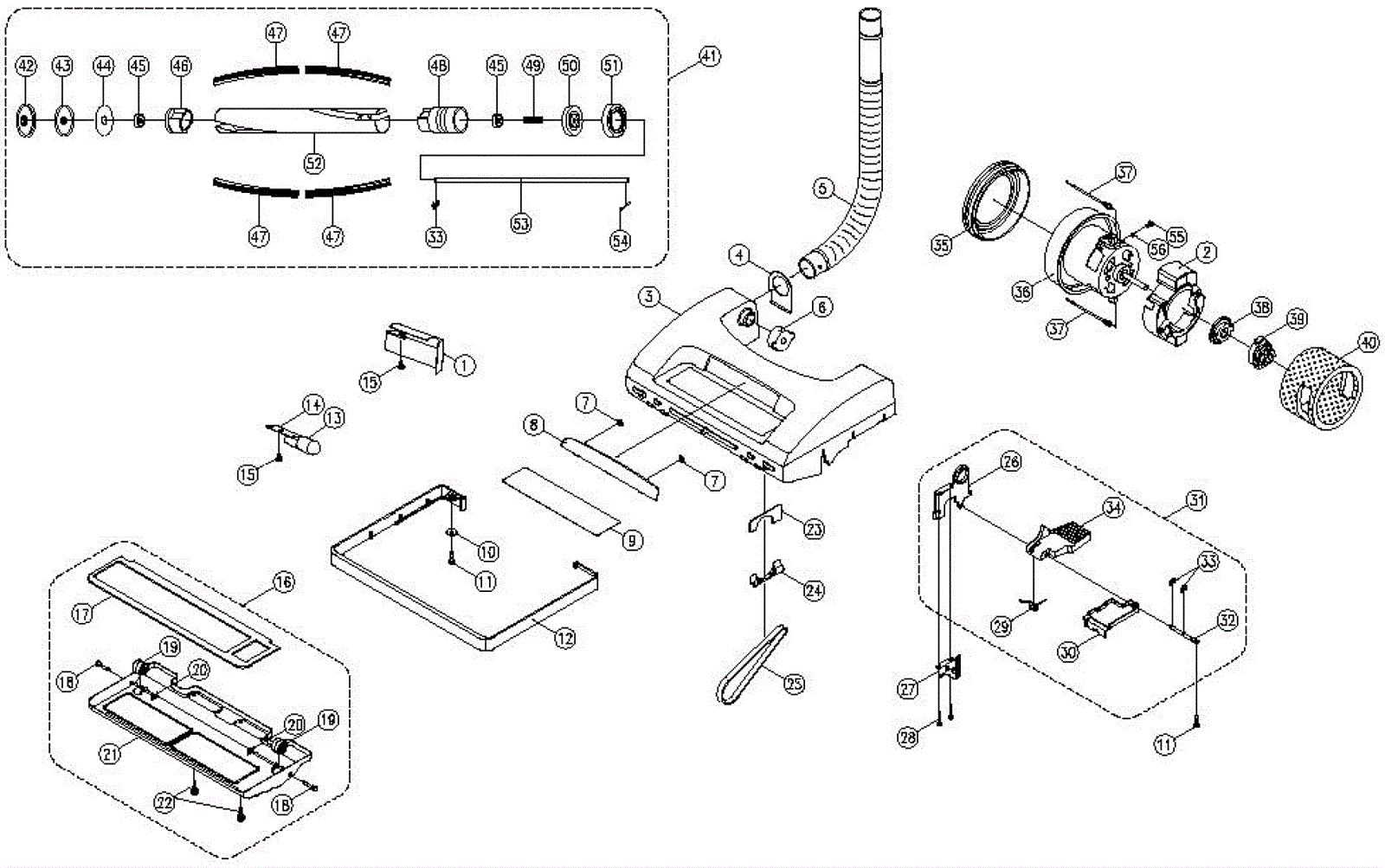

CK 14/1 Brush Head Assembly - Standard

#PartDescriptionPriceReqNotesAvailability
1 190-0289 Reflector plate Call for price 1 usually ships 1-5 days
2 190-0290 Motor shroud Call for price 1 usually ships 1-5 days
3 190-0291 Nozzle housing (OBSOLETE) $24.08 1 usually ships 14-19 days
4 190-0292 Hose fitting $1.30 1 usually ships 1-5 days
5 190-0293 Vacuum hose $4.75 1 ships same day
6 183-9089 Brush base collar $1.35 1 usually ships 15-28 days
7 190-0294 CS ring $1.30 2 usually ships 1-5 days
8 190-0295 Clear lens $2.84 1 usually ships 1-5 days
10 190-0297 Washer $0.99 1 usually ships 1-5 days
11 190-0298 Screw M4 x 15 set $1.30 2 usually ships 1-5 days
12 190-0299 Furniture guard (black) $9.89 1 usually ships 1-5 days
13 190-0300 Bulb socket Call for price 1 usually ships 1-5 days
14 190-0301 Slimline light bulb $5.04 1 usually ships 1-5 days
15 190-9686 Screw #8-18 x 5/8 $1.30 2 usually ships 15-28 days
16 190-0171 Base plate assembly $28.59 1 (includes 17-22) ships same day
17 190-0303 Lower plate Call for price 1 usually ships 1-5 days
18 190-0173 Base plate wheel axle $1.30 2 usually ships 14-19 days
19 190-0176 Base plate latch stud screw $1.83 2 usually ships 14-19 days
20 190-0175 Base plate wheel push nut $1.30 2 usually ships 1-5 days
21 190-0304 Bottom plate $30.28 1 usually ships 1-5 days
22 190-0305 Set screw $1.30 2 usually ships 1-5 days
23 190-0307 Brush support $10.60 1 ships same day
24 190-0307 Brush support $10.60 1 ships same day
25 190-0199 Belt $3.83 1 ships same day
26 190-0202 Pedal frame $2.78 1 usually ships 14-19 days
27 190-0203 Rear belt guard $1.30 1 usually ships 14-19 days
28 190-9686 Screw #8-18 x 5/8 $1.30 2 usually ships 15-28 days
29 190-0309 Pedal spring $1.30 1 usually ships 1-5 days
30 190-1430 Pedal $3.21 1 usually ships 15-28 days
31 190-0311 Pedal frame assembly $8.04 1 (includes 26, 29, 30, 32-34) usually ships 1-5 days
32 190-0312 Pedal frame shaft Call for price 1 usually ships 1-5 days
33 190-0313 E ring Call for price 3 usually ships 1-5 days
34 190-0314 Pedal release $3.21 1 usually ships 1-5 days
35 190-0315 Motor mount Call for price 1 usually ships 1-5 days
36 183-1547 Vacuum motor with cover $140.35 1 usually ships 15-28 days
37 190-0316 Temperature wire Call for price 2 usually ships 1-5 days
38 190-0195 Front rubber motor mount $2.18 1 usually ships 1-5 days
39 190-0194 Metal pivot sleeve $3.17 1 usually ships 14-19 days
40 190-0317 Sound suppressor $1.30 1 usually ships 1-5 days
41 190-0180 Brushroll assembly $47.58 1 (includes 33, 42-54) ships same day
42 190-0181 Brushroll rubber end caps left $1.30 1 usually ships 14-19 days
43 190-0319 Left cover (OBSOLETE) $2.49 1 usually ships 14-19 days
44 190-0183 Brushroll felt washer $1.30 1 ships same day
45 190-0320 Bearing (OBSOLETE) $4.31 1 usually ships 14-19 days
46 190-0321 Agitator bearing holder $8.79 1 usually ships 14-19 days
47 190-0322 Agitator brush $4.11 4 ships same day
48 190-0323 Pulley Call for price 1 usually ships 1-5 days
49 190-0188 Brushroll spacing spring $1.30 1 usually ships 1-5 days
50 190-0324 Right cover $1.55 1 usually ships 1-5 days
51 190-0190 Brushroll pulley end rubber cap $1.30 1 usually ships 14-19 days
52 190-0325 Agitator core Call for price 1 usually ships 1-5 days
53 190-0191 Brushroll shaft $2.77 1 ships same day
54 190-0192 Brushroll spring clip $1.30 1 usually ships 1-5 days
55 190-0326 Screw M4 x 6 set Call for price 1 usually ships 1-5 days
56 190-0327 Washer Call for price 1 usually ships 1-5 days
