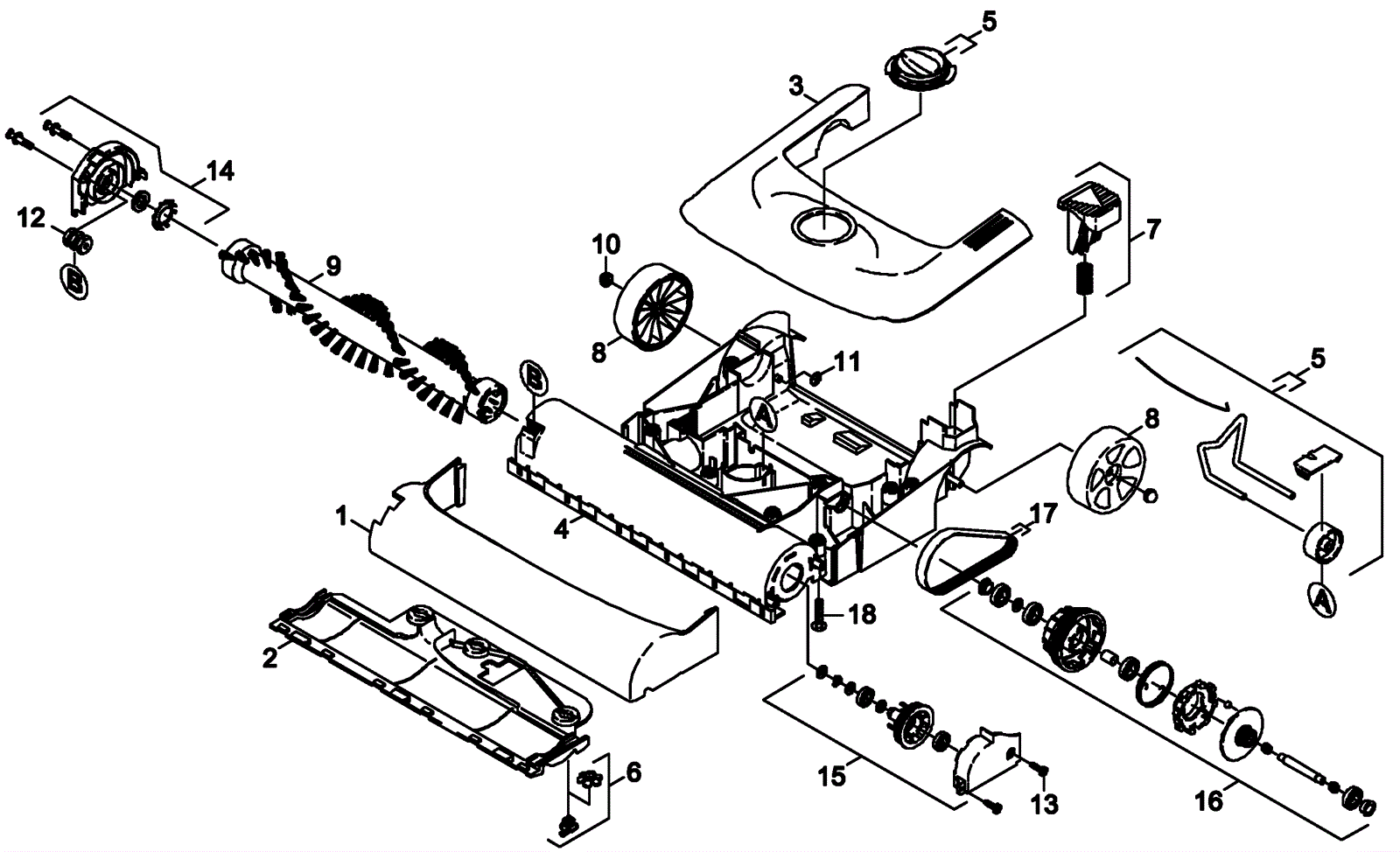

CV 30 Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-7508 Shock absorber $104.73 1 usually ships 9-20 days
2 183-0895 Glide sole $25.55 1 ships same day
3 183-7509 Top cover $37.91 1 ships same day
4 183-7432 Base assembly black plastic $67.20 1 ships same day
5 183-4586 Wheel adjustment $33.31 1 ships same day
6 183-7433 Lock piece kit (pkg of 4) $15.18 1 ships same day
7 183-8135 Foot pedal $9.39 1 ships same day
8 183-7434 Wheel $17.32 2 ships same day
9 183-7510 Brush roller (black) $45.46 1 ships same day
10 183-7435 Lock washer $3.68 2 ships same day
11 183-7436 Lock washer $1.23 2 ships same day
12 183-7511 Screw union $10.33 2 ships same day
13 273-0966 Screw M4-10.9 x 12mm round head $2.48 2 usually ships 7-19 days
14 183-0883 Covering cap $40.44 1 ships same day
15 183-0884 Belt side covering cap $61.83 1 ships same day
16 183-8136 Coupler assembly $97.53 1 usually ships 9-20 days
17 164-6694 Belt (pkg of 2) $58.31 1 ships same day
18 183-8116 Screw 5 x 20 $0.90 8 usually ships 9-20 days
N/S 183-2132 Axle $16.50 1 ships same day
