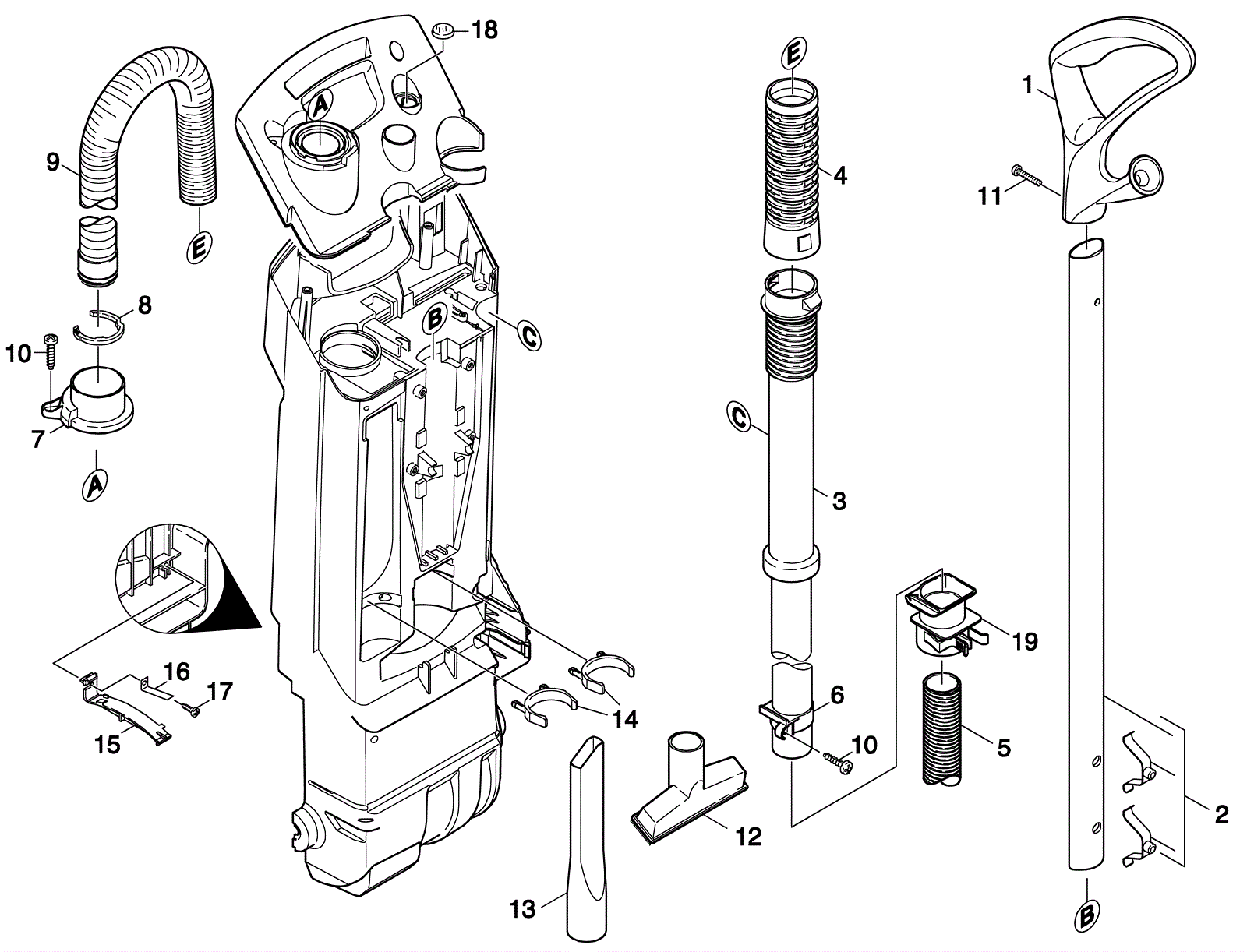

CV 30 Attachments Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8112 Handle $30.76 1 usually ships 9-20 days
2 183-8113 Handle bracket $50.23 1 usually ships 9-20 days
3 183-7414 Suction tube with sleeve $51.20 1 ships same day
4 183-7413 Sleeve $23.80 1 usually ships 9-20 days
5 183-8114 Suction hose $34.84 1 ships same day
6 183-7415 Suction tube ring $4.18 1 usually ships 9-20 days
7 183-7549 Connection piece $4.83 1 ships same day
8 183-8115 Retaining ring $2.37 1 ships same day
9 183-7452 Hose $52.33 1 ships same day
10 183-8116 Screw 5 x 20 $0.90 2 usually ships 9-20 days
11 183-8117 Screw 5 x 40 $1.23 1 usually ships 9-20 days
12 183-8118 Upholstery nozzle $10.12 1 ships same day
13 173-5755 Crevice nozzle $6.20 1 ships same day
14 183-8119 Clip $4.60 2 usually ships 9-20 days
15 183-8120 Bracket $4.47 1 usually ships 1-5 days
16 183-8121 Spring $1.41 1 usually ships 1-5 days
17 273-0966 Screw M4-10.9 x 12mm round head $2.48 1 usually ships 7-19 days
18 183-2092 Lens $4.41 1 usually ships 1-5 days
19 183-8122 Bushing (OBSOLETE) $6.85 1 usually ships 9-20 days
