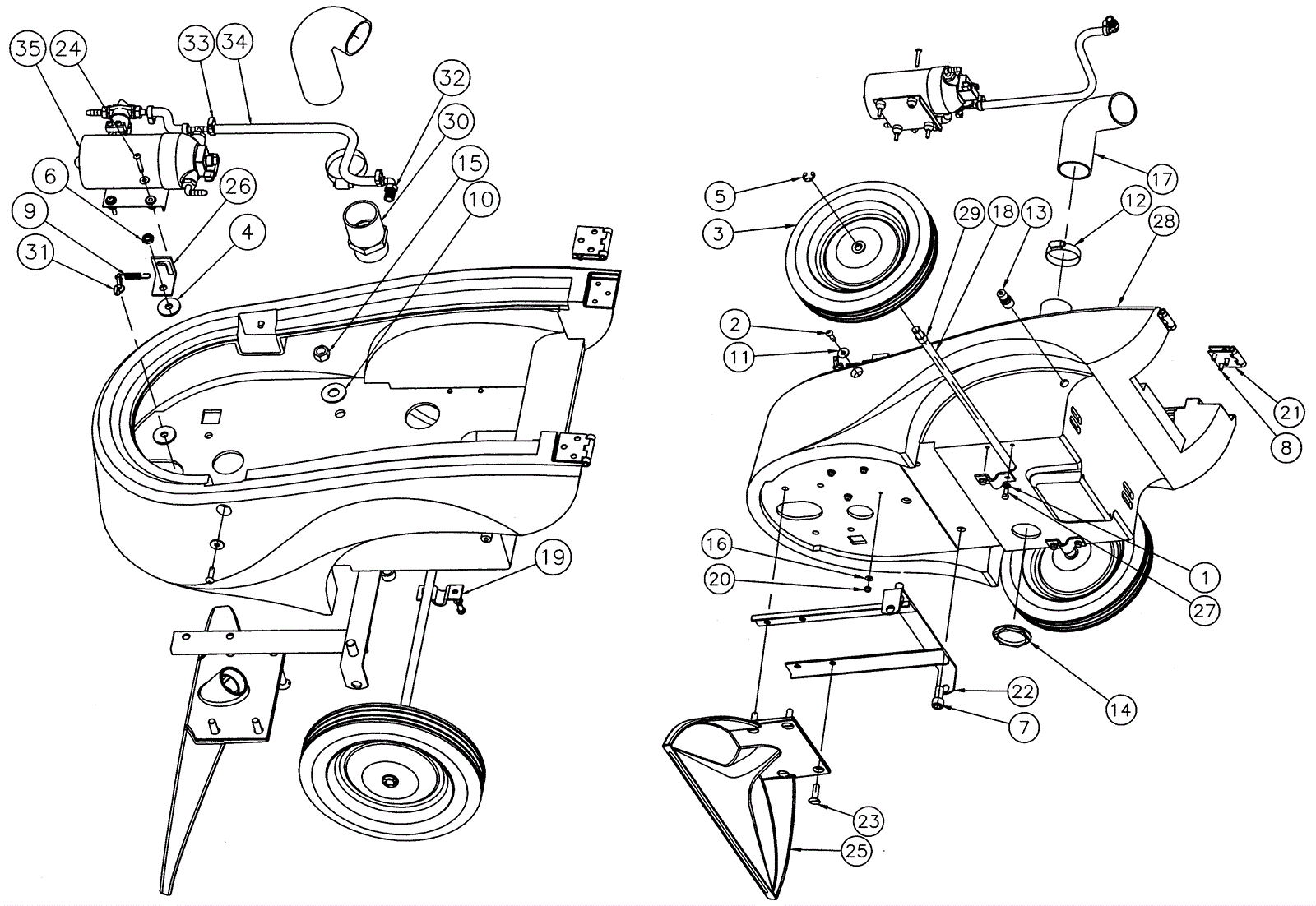

MARATHON 800 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
2 999-0866 Screw 1/4-20 x 7/8 round head slotted zinc plated $0.99 2 ships same day
3 183-0522 10 inch wheel $83.57 2 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
5 183-0041 Retaining ring $0.99 2 ships same day
6 999-0247 Nut 3/8-16 hex jam plain finish $0.99 3 ships same day
7 999-1199 Screw 1/2-13 x 1 socket head cap stainless steel $3.38 2 usually ships 1-5 days
8 999-1200 Screw 1/4-20 x 1/2 truss head slotted zinc plated $0.99 6 ships same day
9 183-4242 Spring $28.60 1 usually ships 1-5 days
10 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
11 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
12 183-4243 Hose clamp $7.18 1 usually ships 15-28 days
13 183-4244 1/4 Inch brass nipple fitting $12.09 1 usually ships 10-20 days
14 190-0870 Nut lock $4.29 1 usually ships 15-28 days
15 999-0202 Nut 1/2-13 hex plain finish $0.99 2 ships same day
16 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
17 183-4248 2 x 36 Inch steel supported black hose without cuffs $26.41 1 usually ships 15-28 days
18 183-4249 Axle $23.79 1 usually ships 15-28 days
19 183-4250 Axle retaining clamp $17.42 2 usually ships 15-28 days
20 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
21 183-4251 1/4 x 2 Inch hinge with slots $60.71 2 usually ships 1-5 days
22 183-4252 Shroud/nozzle mounting bracket weldment $83.95 1 usually ships 1-5 days
23 999-0992 Screw 3/8-16 x 1 flat head slotted zinc plated $0.99 4 usually ships 1-5 days
24 999-0570 Screw 10-24 x 1 1/4 pan head phillips stainless steel $0.99 4 ships same day
25 183-4261 20 Inch vacuum nozzle kit with tube (OBSOLETE) $128.95 1 usually ships 15-28 days
26 183-4262 Shroud latch bracket $19.20 1 usually ships 1-5 days
27 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
28 183-4263 Black chassis $514.38 1 usually ships 1-5 days
29 183-4265 Spacer 1/2 inch $11.33 2 usually ships 15-28 days
30 183-4266 Vacuum motor exhaust hose fitting $35.35 1 usually ships 1-5 days
31 183-4267 Spring retaining nut $5.47 1 usually ships 1-5 days
32 N/A Not available Call for price 1 (male elbow fitting) usually ships 3-26 days
33 216-0075 Hose clamp $3.74 2 usually ships 1-5 days
34 183-8160 Hose 1/4 x 17 inch (Obsolete) $4.39 1 usually ships 15-28 days
35 183-7481 Pump assembly $455.24 1 usually ships 15-28 days
N/S 183-2119 Washer $1.14 1 usually ships 15-28 days
