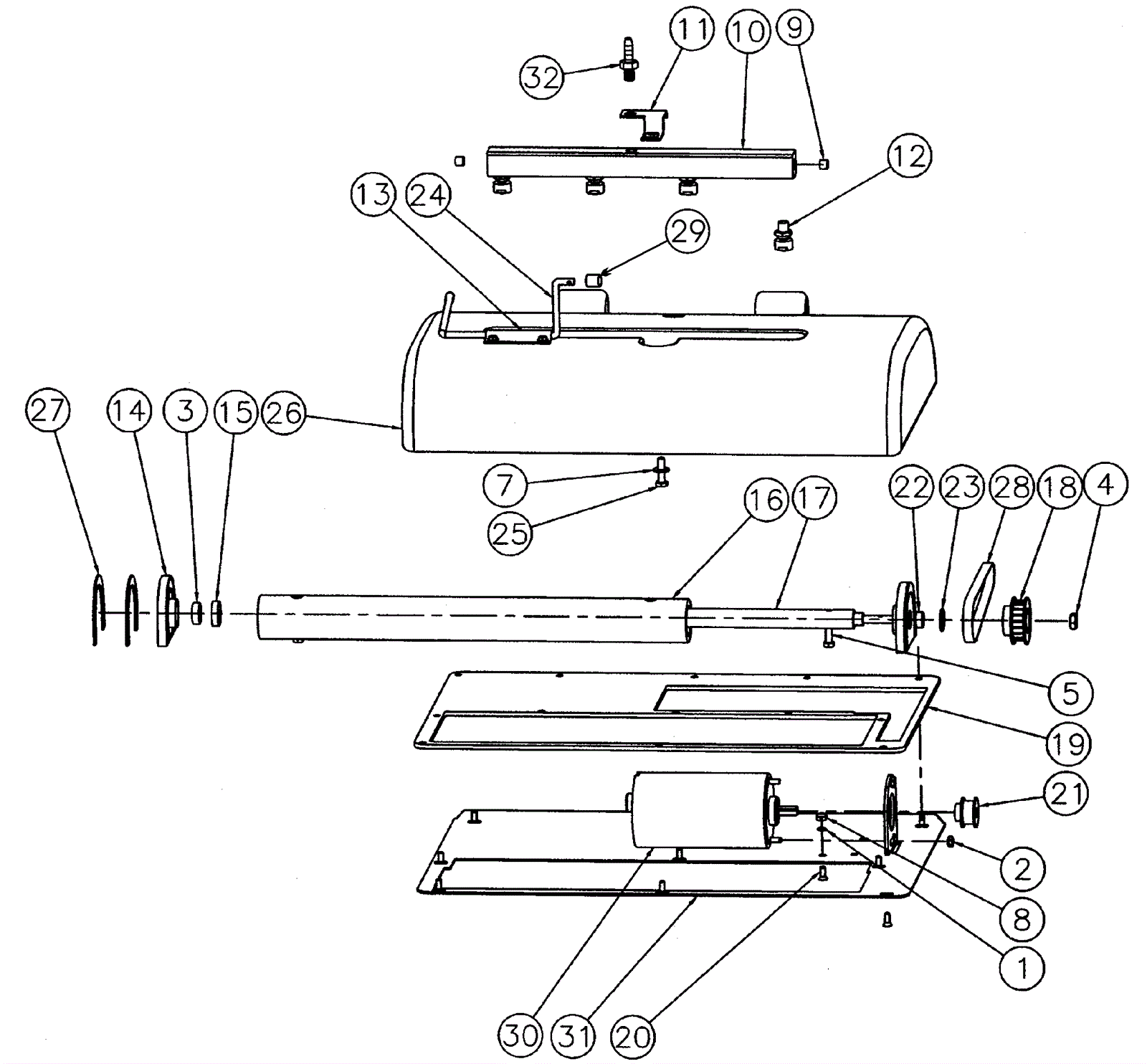

MARATHON 800 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-4550 Washer #10 H/S lock $1.30 1 usually ships 15-28 days
2 183-4223 Nut 10-32 hex lock zinc plated $1.35 2 usually ships 15-28 days
3 183-4224 Bearing $2.65 2 ships same day
4 999-1093 Nut 5/16-18 heavy hex jam plain finish $0.99 1 ships same day
5 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
7 183-8146 Washer 1/4 plain $0.80 1 ships same day
8 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
9 183-0519 Brass fitting $2.82 2 usually ships 1-5 days
10 183-0520 Manifold spray bar (Obsolete) $59.36 1 usually ships 15-28 days
11 183-4225 Manifold retaining bracket weldment $18.74 1 usually ships 1-5 days
12 183-4227 1/8 Inch jet spray nozzle $39.59 4 ships same day
13 183-4228 Shroud latch lever clamp $10.71 1 usually ships 15-28 days
14 183-0860 Brush bearing block $12.45 2 ships same day
15 183-0861 Bearing seal $6.18 2 ships same day
16 183-4229 17 Inch carpet scrub brush roller $252.44 1 usually ships 15-28 days
17 183-4230 18 Inch brush rotation shaft $296.66 1 usually ships 15-28 days
18 183-4231 Aluminum timing pulley $42.04 1 usually ships 15-28 days
19 183-4233 Shroud base plate gasket $22.25 1 usually ships 15-28 days
20 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 10 ships same day
21 183-4234 Timing pulley $18.07 1 usually ships 15-28 days
22 183-0863 Spacer 1/4 inch $3.64 1 ships same day
23 183-0862 Plain washer $1.35 1 usually ships 15-28 days
24 183-4237 Shroud latch lever $34.17 1 usually ships 1-5 days
25 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 1 ships same day
26 183-1544 Brush weldment assembly $578.24 1 (includes 2,20,31, 999-0820, 183-3303) ships same day
27 183-4240 Bearing block gasket $3.37 4 ships same day
28 183-0553 Timing belt $15.42 1 ships same day
29 183-4241 Shroud latch lever cap $2.40 1 usually ships 1-5 days
30 183-7430 Brush motor with pulley $209.67 1 ships same day
31 183-8151 Brush plate weldment $186.91 1 ships same day
N/S 183-8152 1/8 NPT male straight fitting (Obsolete) $4.53 1 usually ships 15-28 days
N/S 183-8153 Motor gasket $2.86 1 usually ships 15-28 days
N/S 183-3303 Jacknut $2.09 1 usually ships 15-28 days
