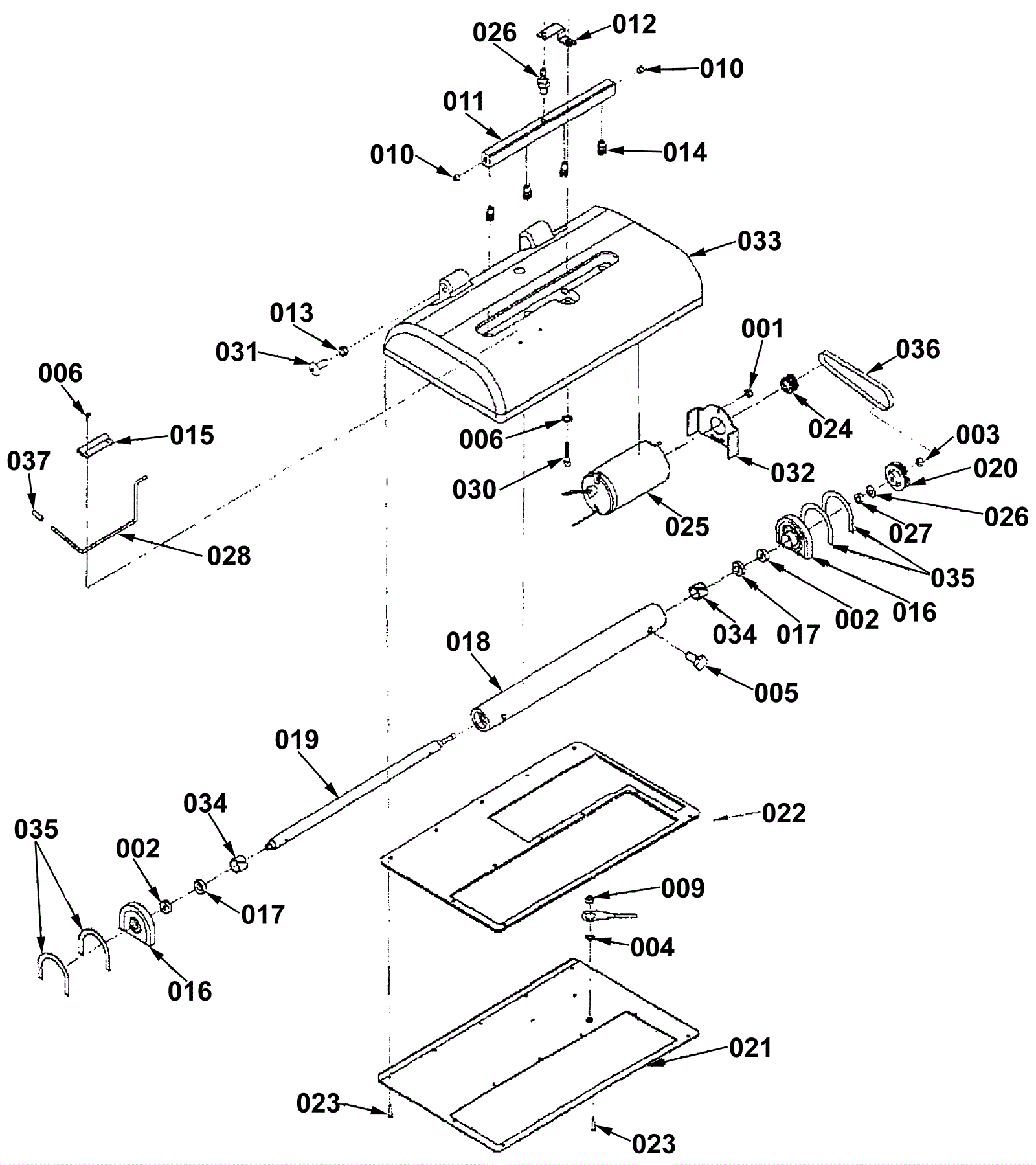

MARATHON 1200 Brush and Spray Head Assembly

#PartDescriptionPriceReqNotesAvailability
002 183-4224 Bearing $2.41 2 ships same day
005 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
011 183-0520 Manifold spray bar (Obsolete) $53.96 1 usually ships 8-21 days
013 999-1198 Screw 3/8-16 x 3/4 truss head slotted stainless steel $2.24 ships same day
014 183-4227 1/8 Inch jet spray nozzle $35.99 4 usually ships 8-21 days
016 183-0860 Brush bearing block $11.32 2 ships same day
017 183-0861 Bearing seal $5.62 2 ships same day
018 183-4229 17 Inch carpet scrub brush roller $229.49 1 usually ships 8-21 days
019 183-4230 18 Inch brush rotation shaft $269.69 1 usually ships 8-21 days
020 183-4231 Aluminum timing pulley $38.22 1 usually ships 8-21 days
021 183-8151 Brush plate weldment $169.92 1 ships same day
022 183-4233 Shroud base plate gasket $20.23 1 usually ships 8-21 days
024 183-4234 Timing pulley $16.43 1 usually ships 8-21 days
025 183-7503 Brush motor $224.65 1 usually ships 8-21 days
027 183-0863 Spacer 1/4 inch $3.31 1 ships same day
028 183-0862 Plain washer $1.23 1 usually ships 8-21 days
031 183-4226 Bushing $5.37 usually ships 8-21 days
033 183-1544 Brush weldment assembly $525.67 1 (includes 021, 022, 999-0820, 999-0421, 183-3303) Screw 10-24 x 1/2 -999-0421 Shroud base plate gasket-183-4233 Brush plate weldment - 183-8151 jacknut 10-24 183-3303) ships same day
034 183-4239 3/4 Inch nyliner sleeve bearing $19.88 2 usually ships 8-21 days
035 183-4240 Bearing block gasket $3.06 4 ships same day
036 183-0553 Timing belt $14.02 1 ships same day
N/S 183-3303 Jacknut $1.90 2 usually ships 8-21 days
