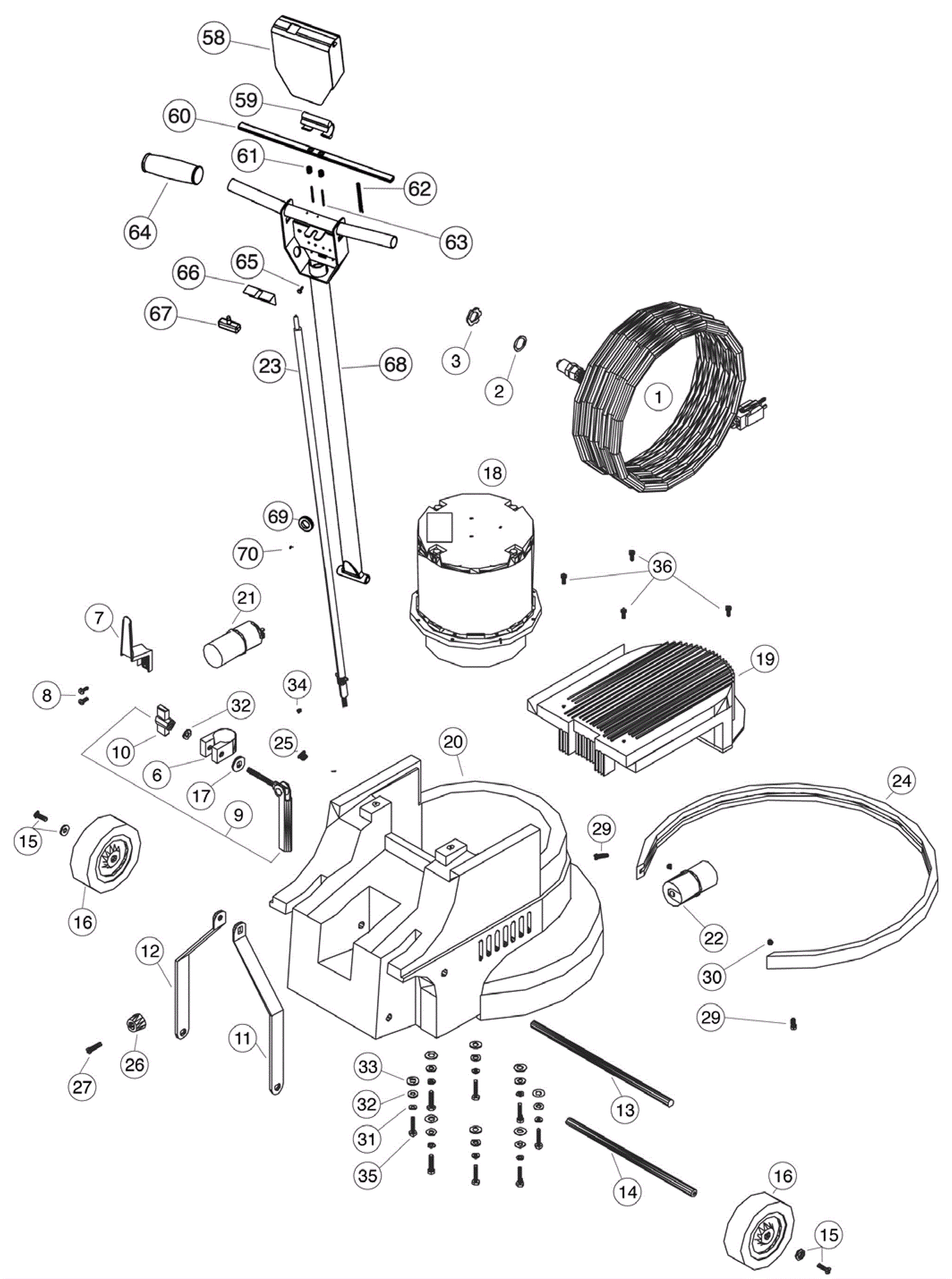

P 20 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0264 14/3 power cord 50 foot with strain relief $132.69 1 usually ships 10-27 days
2 189-3047 Strain relief washer $12.17 1 usually ships 1-5 days
3 216-0181 Nut 1/2 lock steel conduit $1.14 1 usually ships 10-27 days
6 189-3012 Handle clamp collar $33.57 1 usually ships 11-24 days
7 189-2978 Cord hook $18.75 1 usually ships 11-24 days
8 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.18 1 usually ships 10-27 days
9 190-0008 Handle clamp assembly $49.20 1 ships same day
10 189-2981 Knob $8.10 1 ships same day
11 190-0057 Right side handle brace with hole $11.34 1 usually ships 10-27 days
12 190-0056 Left side handle brace with slot $11.51 1 usually ships 10-27 days
13 189-8617 Pivot shaft $9.19 1 usually ships 10-27 days
14 189-8618 Wheel axle $9.41 1 usually ships 10-27 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 189-2987 5 inch wheel $16.99 2 ships same day
17 189-3010 Oval washer (OBSOLETE) $3.48 1 usually ships 11-24 days
18 183-9047 Motor Assembly $940.99 1 usually ships 8-21 days
19 190-0266 Motor cover $24.86 1 usually ships 10-27 days
20 183-9048 Base housing $344.22 1 usually ships 8-21 days
21 190-0068 Capacitor (OBSOLETE) $23.18 1 usually ships 10-27 days
23 183-9049 14/2 in-line power cord $20.99 1 ships same day
24 189-8624 Bumper $34.84 1 usually ships 10-27 days
25 189-8625 Plug $1.18 1 usually ships 1-5 days
26 190-0267 Bumper $1.76 2 usually ships 10-27 days
27 999-0883 Screw 8 x 1 pan head phillips zinc plated $0.99 2 ships same day
29 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel $2.30 1 ships same day
30 190-0269 Washer 1/4 spring lock $1.18 1 ships same day
32 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
33 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
34 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish $0.99 1 ships same day
35 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 8 ships same day
36 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 4 ships same day
58 189-8626 Switch box cover $45.24 1 usually ships 10-27 days
59 190-0060 Thumb actuation release $1.18 1 usually ships 10-27 days
60 190-0061 Handle trigger $10.52 1 ships same day
61 190-0062 Trigger tension spring $1.23 2 ships same day
62 190-0063 Spring $3.08 1 usually ships 10-27 days
63 190-0064 Handle roll pin $1.23 2 usually ships 8-21 days
64 190-0270 Handle grip $12.99 2 usually ships 10-27 days
65 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.18 1 usually ships 10-27 days
66 190-0067 Insulation sheet $1.92 1 usually ships 10-27 days
67 190-0575 On/off switch $13.99 1 usually ships 10-27 days
68 190-0271 Handle weldment $197.99 1 usually ships 10-27 days
69 189-8627 Grommet $24.53 1 usually ships 10-27 days
70 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish $0.99 1 ships same day
N/S 190-0393 17amp circuit breaker $2.20 1 ships same day
N/S 183-7501 Pad driver assembly 20 inch $91.83 1 usually ships 8-21 days
