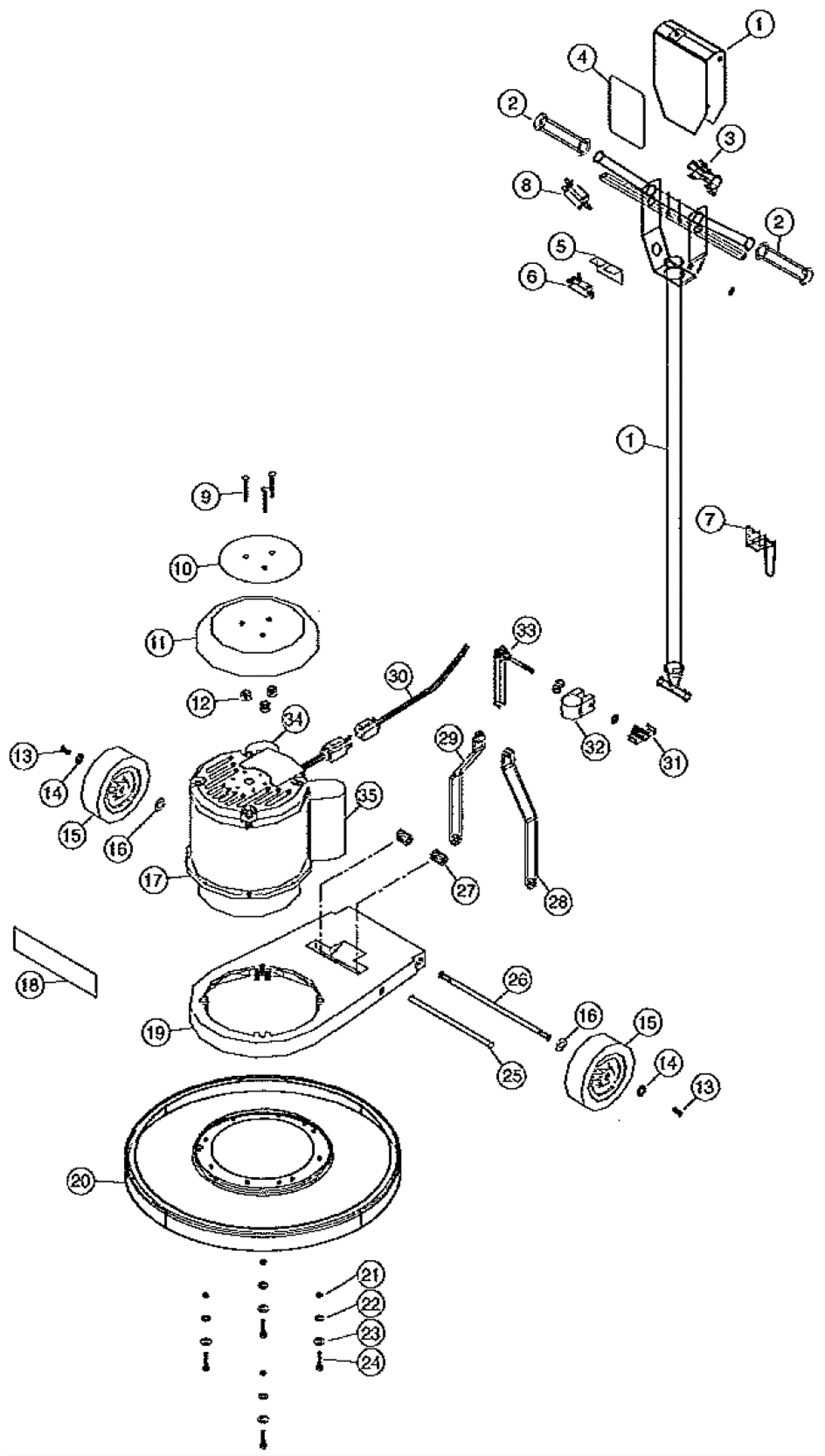

M 17 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0271 Handle weldment $243.09 1 usually ships 14-18 days
2 190-0270 Handle grip $16.49 2 usually ships 14-18 days
3 190-0060 Thumb actuation release $3.95 1 usually ships 14-18 days
4 183-9953 Handle decal $1.31 1 usually ships 14-19 days
5 190-0067 Insulation sheet $3.95 1 usually ships 14-18 days
6 190-0575 On/off switch $17.59 1 ships same day
7 189-2978 Cord hook $20.63 1 usually ships 12-17 days
8 190-0393 17amp circuit breaker $5.27 1 ships same day
9 183-9955 Screw 10-32 x 1 $3.95 3 usually ships 14-19 days
10 183-9956 Motor top decal $2.63 1 usually ships 14-19 days
11 183-9957 Top motor cover $55.75 1 usually ships 14-19 days
12 190-9902 Motor cover spacer $3.95 3 usually ships 14-18 days
13 183-9065 Screw 1/4-20x 3/4 inch $3.95 2 ships same day
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 189-2987 5 inch wheel $20.89 2 ships same day
16 189-2984 Spring washer $3.95 2 usually ships 14-18 days
17 183-9047 Motor Assembly $1,154.99 1 usually ships 14-19 days
18 183-9958 Front decal $5.27 1 usually ships 14-19 days
19 183-9036 Motor base $194.69 1 usually ships 14-19 days
20 183-9959 17 inch brush housing and bumper $283.79 1 usually ships 14-19 days
21 190-0269 Washer 1/4 spring lock $3.95 4 usually ships 14-18 days
22 183-2534 Washer $3.95 4 usually ships 14-19 days
23 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
24 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel $0.99 4 ships same day
25 183-9040 Pivot pin $6.59 1 usually ships 1-5 days
26 183-9041 Wheel axle $16.49 1 usually ships 14-19 days
27 183-9042 Spacer $5.27 2 usually ships 14-19 days
28 189-2980 Left side handle brace $35.09 1 ships same day
29 189-3013 Right side handle brace $35.09 1 ships same day
30 183-9043 14/3 innerconnect cord (black) $31.89 1 usually ships 14-19 days
31 189-2981 Knob $8.91 1 usually ships 12-17 days
32 189-3012 Handle clamp collar $36.93 1 usually ships 12-17 days
33 N/A Not available Call for price 1 (cam lever assembly) usually ships 3-26 days
N/S 190-0008 Handle clamp assembly $54.12 1 ships same day
N/S 189-3010 Oval washer $3.83 1 usually ships 12-17 days
N/S 190-0264 14/3 power cord 50 foot with strain relief $162.79 1 (OEM) usually ships 14-18 days
N/S 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
N/S 183-9876 Tri-Lok pad holder plastic $94.59 1 usually ships 14-19 days
