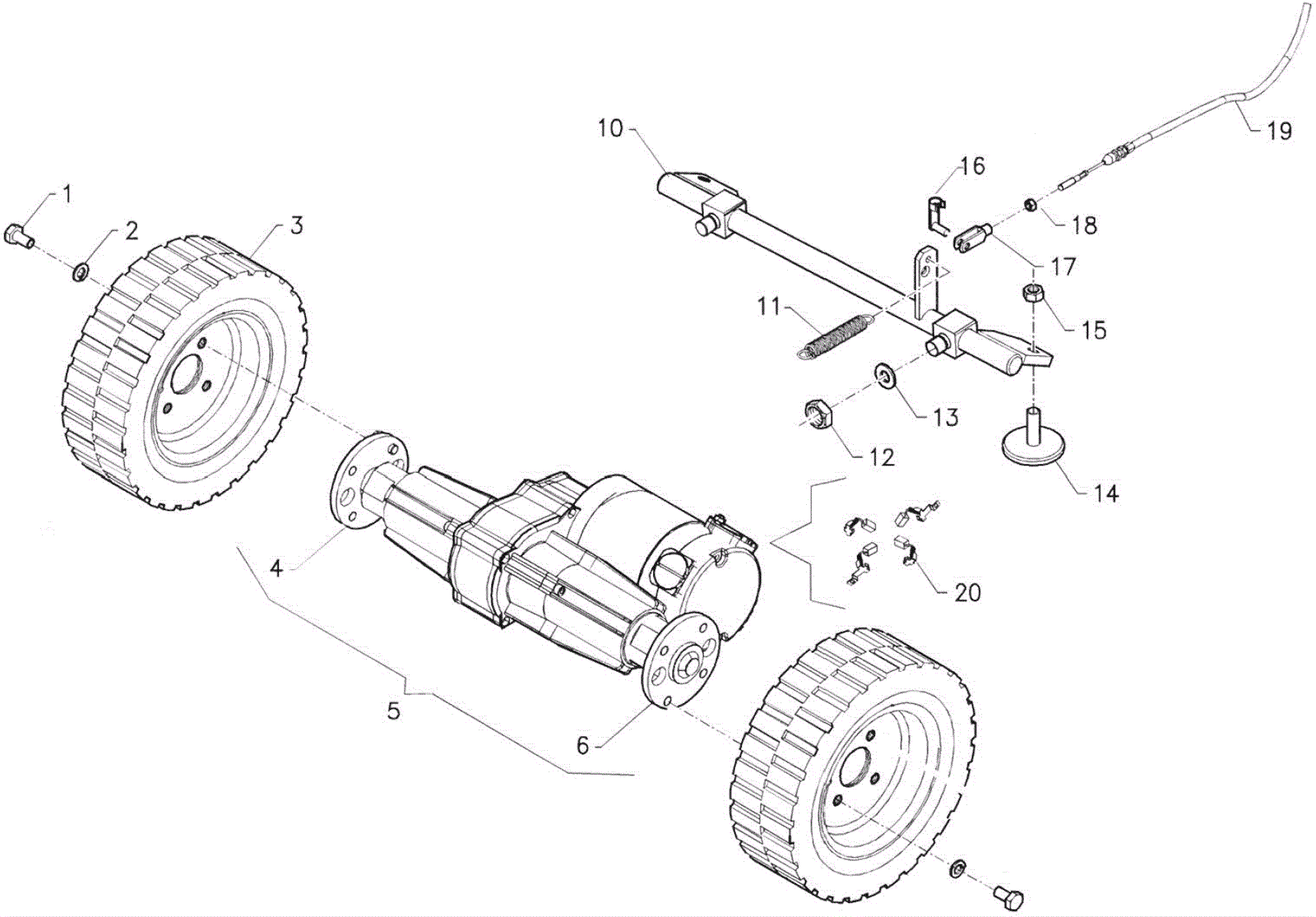

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-2479
|
Screw M10 x 20mm |
2 |
|
|
2 |
183-9331
|
Lock washer |
2 |
|
|
3a |
183-9332
|
Wheel M258 x 80-3.00-6 |
2 |
|
|
3b |
183-9333
|
Polyurethane coated wheel |
2 |
(optional) |
|
4 |
183-5101
|
Right hand axle shaft |
1 |
|
|
5 |
183-9334
|
Traction motor |
1 |
|
|
6 |
183-5102
|
Left hand axle shaft |
1 |
|
|
10 |
183-5103
|
Brake shaft (OBSOLETE) |
1 |
|
|
11 |
183-5104
|
Traction spring |
1 |
|
|
12 |
183-8406
|
Washer |
1 |
|
|
13 |
183-9335
|
Washer |
1 |
|
|
14 |
183-5105
|
Brake pad (OBSOLETE) |
2 |
|
|
15 |
183-2621
|
Nut |
2 |
|
|
16 |
183-7638
|
Fork clip |
1 |
|
|
17 |
183-9197
|
Fork |
1 |
|
|
18 |
183-8394
|
Nut |
1 |
|
|
19 |
183-9336
|
Brake cable |
1 |
|
|
20 |
183-5106
|
Carbon brushes (pkg of 4) |
1 |
|
|
