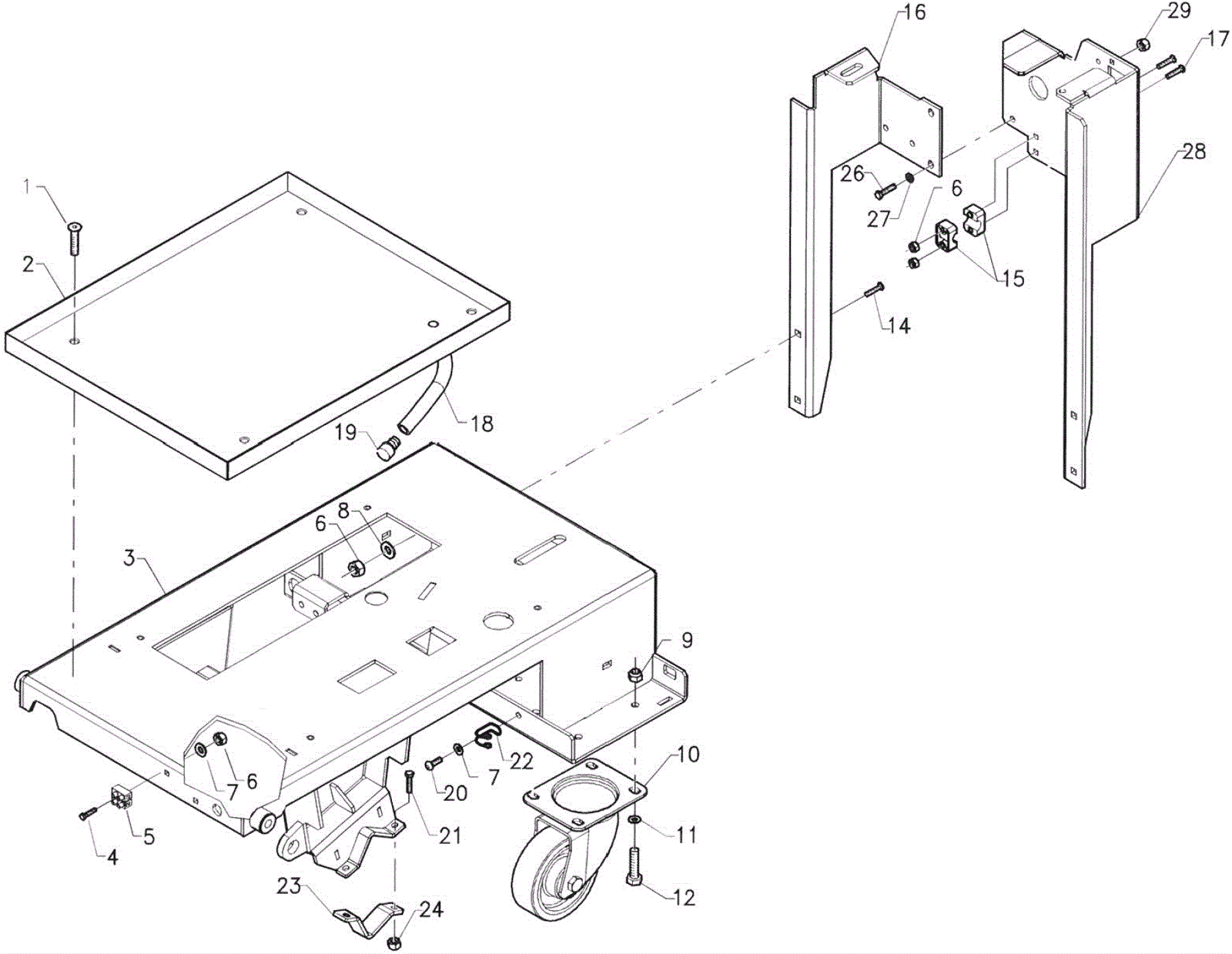

BD 26/26 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8402 Screw M6 x 16 $1.35 4 usually ships 8-21 days
2a 183-9321 Battery tray $139.36 1 (before SN 13000745) usually ships 8-21 days
2b 183-5124 Battery tray (OBSOLETE) Call for price 1 (after SN 13000745) usually ships 8-21 days
3 183-5125 Frame (OBSOLETE) Call for price 1 usually ships 8-21 days
4a 183-9351 Screw M6 x 35mm $1.35 1 (after SN 12002036) usually ships 8-21 days
4b 183-8388 Screw $1.35 1 (before SN 12002037) usually ships 8-21 days
5 183-9322 Terminal board $23.95 1 usually ships 8-21 days
6 183-8256 Nut $1.35 9 usually ships 8-21 days
7 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
8 183-8294 Washer $1.35 4 usually ships 8-21 days
9 183-8424 Nut $1.35 8 usually ships 8-21 days
10 183-9323 Caster wheel M125 x 40mm $286.61 2 usually ships 8-21 days
11 183-9324 Washer $1.35 8 usually ships 8-21 days
12 183-9325 Screw M10 x 25mm $1.35 8 usually ships 8-21 days
14 183-9129 Screw M8 x 25mm $1.35 4 usually ships 8-21 days
15 183-8428 Pivot block $1.35 2 usually ships 8-21 days
16 183-5126 Right hand rear frame (OBSOLETE) Call for price 1 usually ships 8-21 days
17 183-5127 Screw M6 x 45mm (OBSOLETE) Call for price 4 usually ships 8-21 days
18 183-9326 Hose M13 x 160mm $3.07 1 usually ships 8-21 days
19 183-9327 Cap $23.38 1 usually ships 8-21 days
20 183-9328 Screw M6 x 18mm $1.35 1 usually ships 8-21 days
21 183-9329 Screw M8 x 30mm $1.35 4 usually ships 8-21 days
22 183-9330 Coupling spring $4.74 1 usually ships 8-21 days
23 183-5128 Strap (OBSOLETE) Call for price 2 usually ships 8-21 days
24 183-8404 Nut $1.35 4 usually ships 8-21 days
26 183-8300 Screw M8 x 25 $1.35 2 (after SN 12002036) usually ships 8-21 days
27 183-8294 Washer $1.35 2 (after SN 12002036) usually ships 8-21 days
28 183-5129 Left hand rear frame (OBSOLETE) Call for price 1 (after SN 12002036) usually ships 8-21 days
29 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 (after SN 12002036) ships same day
